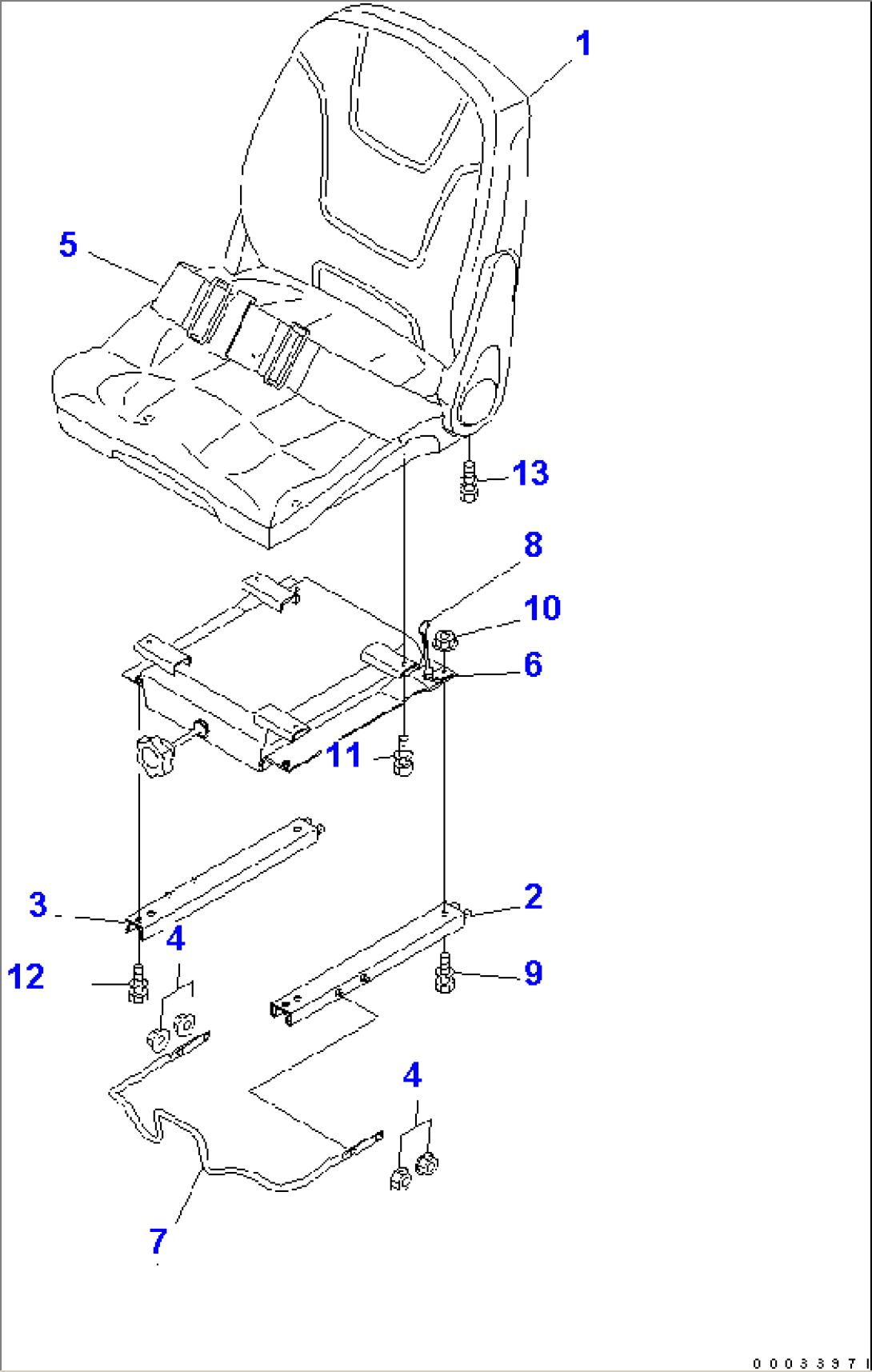

| Item | Part No. | Part Name | Qty | Serial No. |
| 459-930 | OPERATOR'S SEAT A. | 3001- | ||
| 1 | 461-526 | SEAT ASS'Y | 3001- | |
| 2 | 460-061 | ADJUSTER,L.H. | 3001- | |
| 3 | 460-062 | ADJUSTER,R.H. | 3001- | |
| 4 | 460-575 | NUT | 3001- | |
| 5 | 460-092 | BELT,SEAT | 3001- | |
| 6 | 461-563 | SUSPENSION ASS'Y | 3001- | |
| 7 | 460-518 | LEVER | 3001- | |
| 8 | 461-060 | BELT,SEAT | 3001- | |
| 9 | 461-077 | BOLT | 3001- | |
| 10 | 460-576 | NUT | 3001- | |
| 11 | 461-073 | BOLT | 3001- | |
| 12 | 461-074 | BOLT | 3001- | |
| 13 | 461-076 | BOLT | 3001- |
