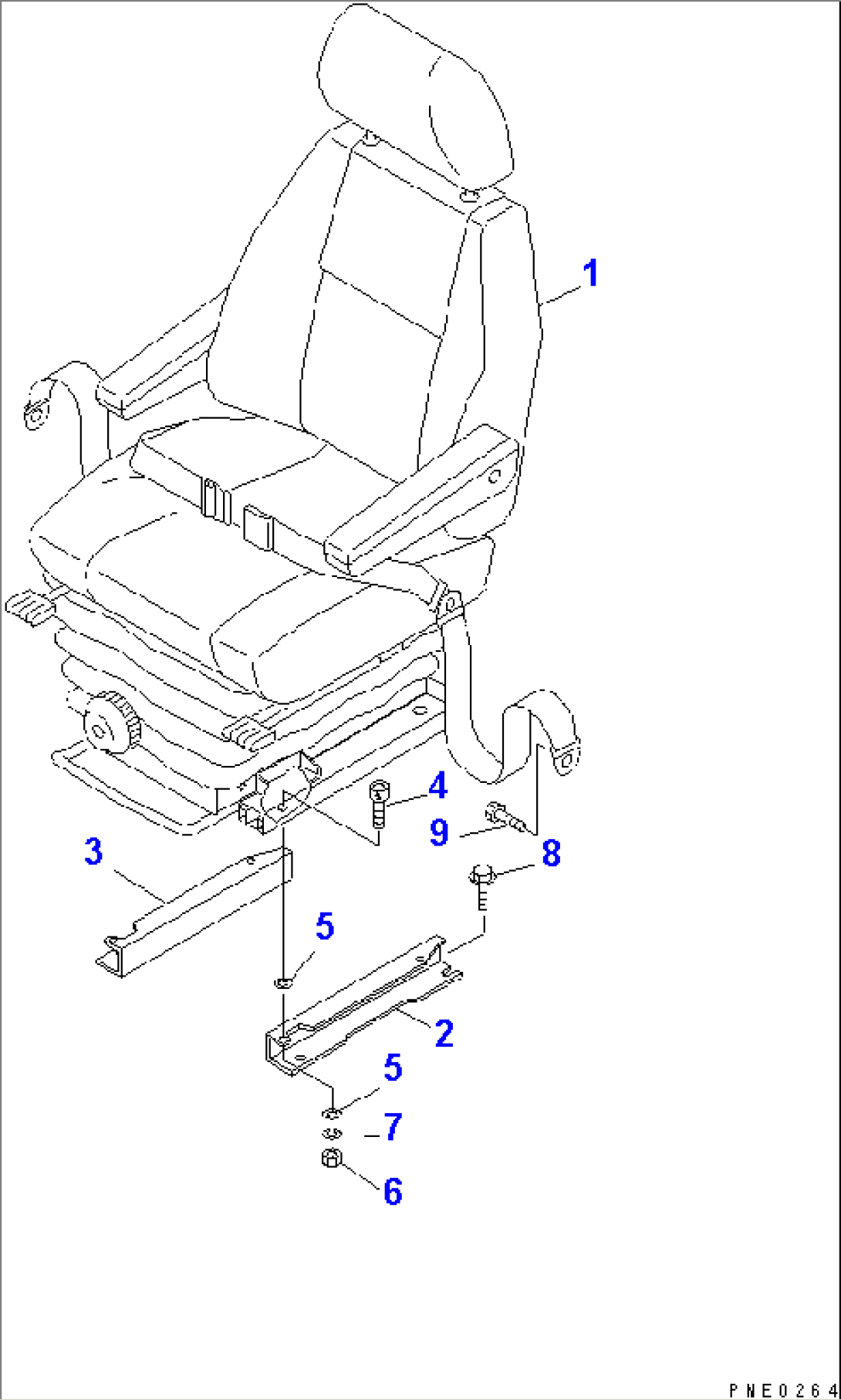

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (423-960-2100) | SEAT ASS'Y,(SEE FIG. 5317) | 50001- | |
| 2 | 423-960-2111 | BRACKET,L.H. | 50001- | |
| 3 | 423-960-2121 | BRACKET,R.H. | 50001- | |
| 4 | 01252-40825 | BOLT | 50001- | |
| 5 | 01643-30823 | WASHER | 50001- | |
| 6 | 01584-00806 | NUT | 50001- | |
| 7 | 01602-20825 | WASHER,SPRING | 50001- | |
| 8 | 01435-01225 | BOLT | 50001- | |
| 9 | 02030-70719 | BOLT | 50001- |
