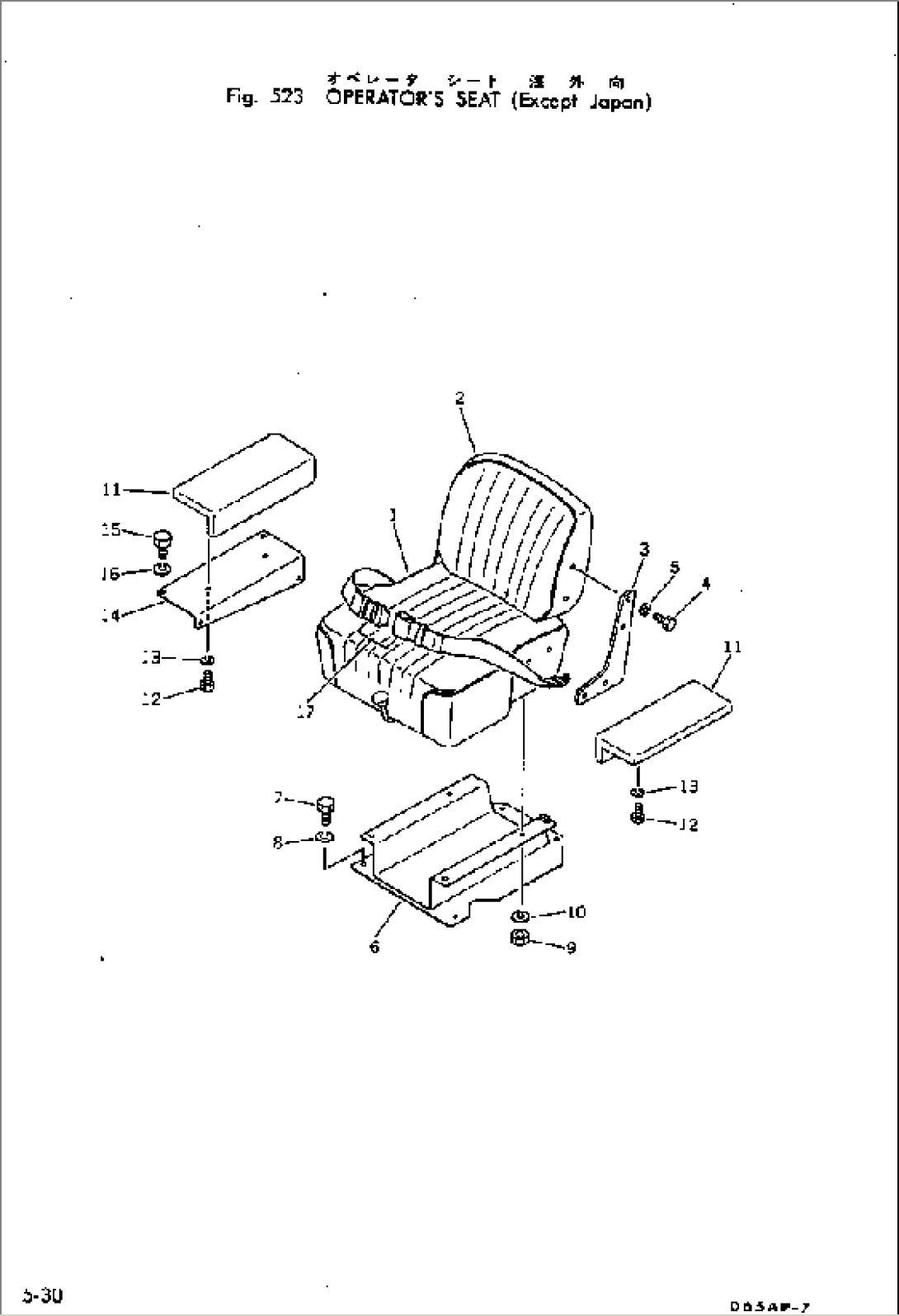

| Item | Part No. | Part Name | Qty | Serial No. |
| 120-57-31202 | SEAT ASS'Y | 40001- | ||
| 1 | 120-57-31212 | CUSHION | 40001- | |
| 2 | 120-57-31222 | CUSHION | 40001- | |
| 3 | 09403-00090 | PLATE | 40001- | |
| 4 | 01010-31020 | BOLT | 40001- | |
| 5 | 01602-01030 | WASHER | 40001- | |
| 6 | 120-57-31112 | FRAME | 40001- | |
| 7 | 01010-31225 | BOLT | 40001- | |
| 8 | 01602-01236 | WASHER | 40001- | |
| 9 | 01580-01210 | NUT | 40001- | |
| 10 | 01602-01236 | WASHER | 40001- | |
| 11 | 120-57-31511 | REST,ARM | 40001- | |
| 12 | 01010-30816 | BOLT | 40001- | |
| 13 | 01602-00825 | WASHER | 40001- | |
| 14 | 135-57-31250 | PLATE | 40001- | |
| 15 | 01010-31220 | BOLT | 40001- | |
| 16 | 01602-01236 | WASHER | 40001- | |
| 17 | 09409-10000 | BELT | 40001- |
