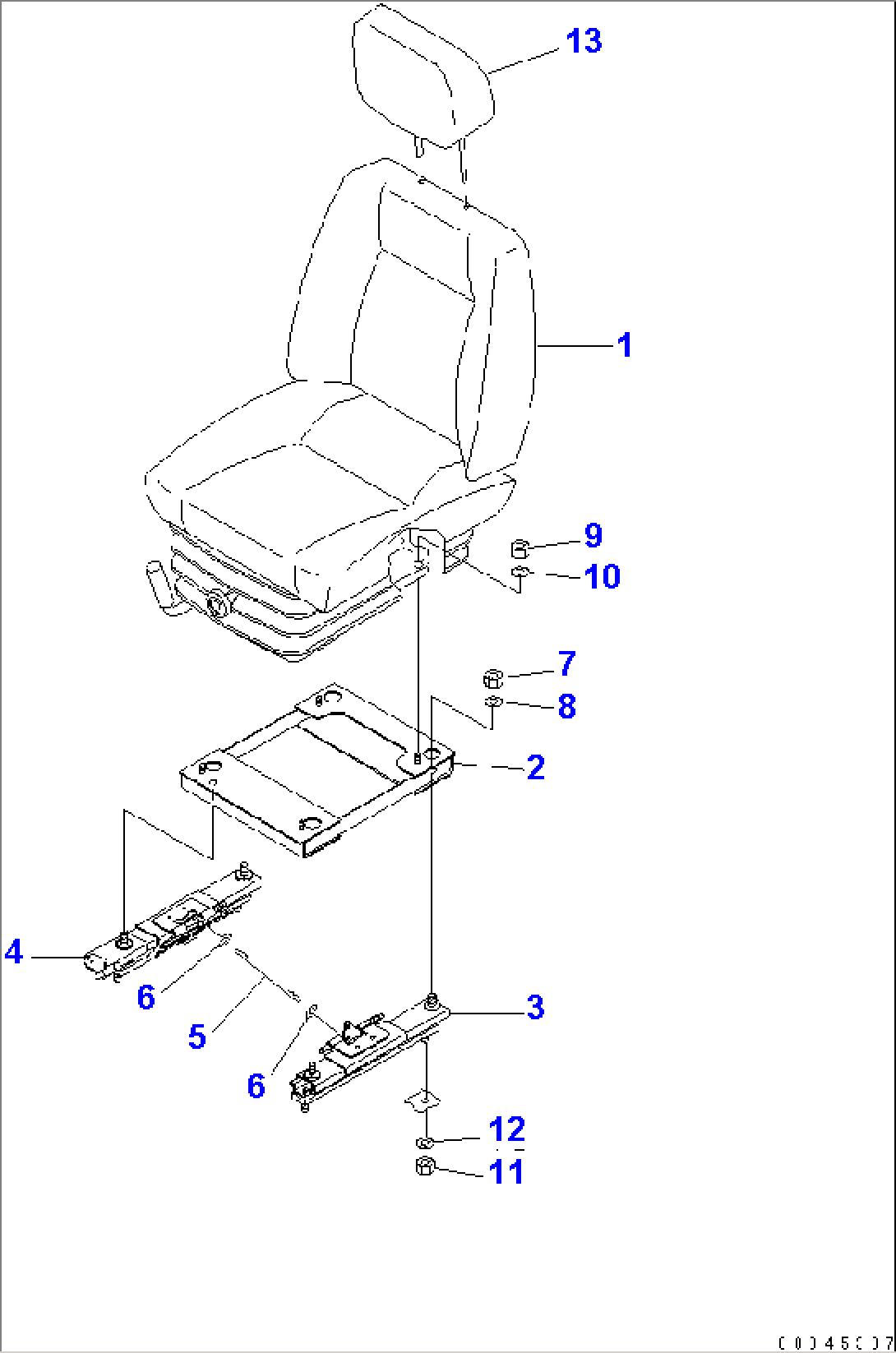

| Item | Part No. | Part Name | Qty | Serial No. |
| 198-57-64000 | SEAT ASS'Y | 35001- | ||
| 1 | (198-57-64100) | SEAT ASS'Y | 35001- | |
| 195-57-46131 | ADJUSTER ASS'Y | 35001- | ||
| 2 | 17A-57-23220 | BRACKET | 35001- | |
| 3 | 195-57-42310 | ADJUSTER | 35001- | |
| 4 | 195-57-42320 | ADJUSTER | 35001- | |
| 5 | 17A-57-23270 | WIRE | 35001- | |
| 6 | 01640-20816 | WASHER | 35001- | |
| 7 | 01582-11210 | NUT | 35001- | |
| 8 | 01643-51232 | WASHER | 35001- | |
| 9 | 01580-00806 | NUT | 35001- | |
| 10 | 01643-50823 | WASHER | 35001- | |
| 11 | 01582-11210 | NUT | 35001- | |
| 12 | 01643-31232 | WASHER | 35001- | |
| 13 | 17A-57-21170 | HEAD REST | 35001- |
