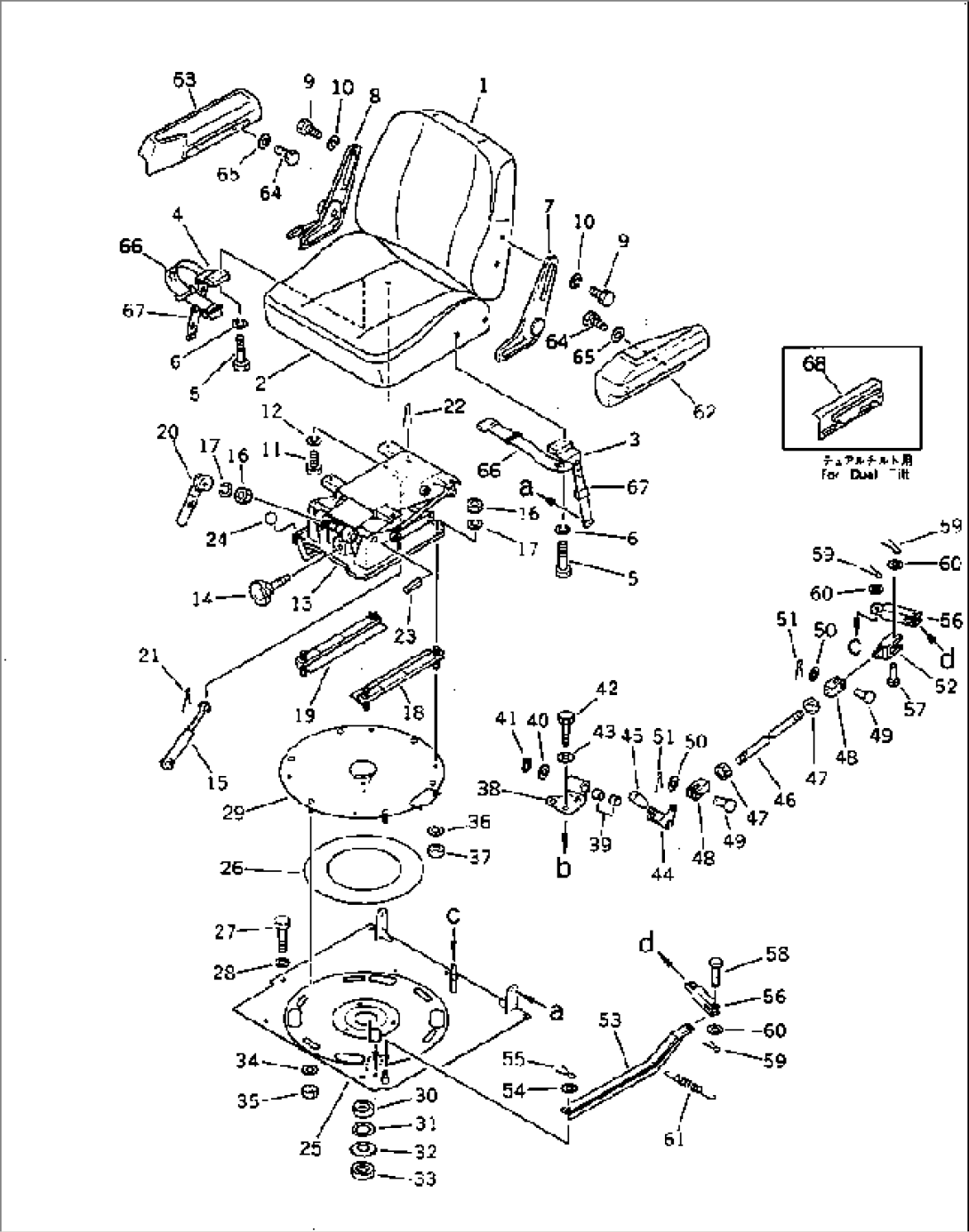

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 195-57-21421 | SEAT,BACK | 10008-10042 | |
| 1 | 198-57-42110 | SEAT,BACK | 10001-10007 | |
| 2 | 195-57-21411 | SEAT,CUSHION | 10008-10042 | |
| 2 | 198-57-42120 | SEAT,CUSHION | 10001-10007 | |
| 3 | 195-57-21250 | BRACKET,L.H. | 10001-10042 | |
| 4 | 195-57-21260 | BRACKET,R.H. | 10001-10042 | |
| 5 | 01010-81040 | BOLT | 10001-10042 | |
| 6 | 01602-21030 | WASHER,SPRING | 10001-10042 | |
| 7 | 155-57-12182 | BRACKET | 10001-10042 | |
| 8 | 155-57-12191 | LEVER | 10001-10042 | |
| 9 | 01010-81020 | BOLT | 10001-10042 | |
| 10 | 01602-21030 | WASHER,SPRING | 10001-10042 | |
| 11 | 01010-81020 | BOLT | 10001-10042 | |
| 12 | 01602-21030 | WASHER,SPRING | 10001-10042 | |
| 13 | 195-57-21180 | SUSPENSION ASS'Y | 10001-10042 | |
| 14 | 155-57-12320 | KNOB | 10001-10042 | |
| 15 | 155-57-12330 | DAMPER | 10001-10042 | |
| 16 | 01580-11210 | NUT | 10001-10042 | |
| 17 | 01602-21236 | WASHER,SPRING | 10001-10042 | |
| 18 | 195-57-21211 | ADJUSTER | 10001-10042 | |
| 19 | 195-57-21221 | ADJUSTER | 10001-10042 | |
| 20 | 195-57-21190 | LEVER | 10001-10042 | |
| 21 | 04050-13015 | PIN,COTTER | 10001-10042 | |
| 22 | 04050-14025 | PIN,COTTER | 10001-10042 | |
| 23 | 04025-00432 | PIN,SPRING | 10001-10042 | |
| 24 | 09304-00835 | KNOB | 10001-10042 | |
| 25 | 195-57-21110 | COVER | 10001-10042 | |
| 26 | 198-57-11270 | PLATE | 10001-10042 | |
| 27 | 01010-81235 | BOLT | 10001-@ | |
| 28 | 01643-31232 | WASHER | 10001-@ | |
| 29 | 195-57-21120 | BASE | 10001-10042 | |
| 30 | 07177-05512 | BUSHING | 10001-10042 | |
| 31 | 01640-24860 | WASHER | 10001-10042 | |
| 32 | 01658-24823 | WASHER | 10001-10042 | |
| 33 | 01530-04812 | NUT,LOCK | 10001-10042 | |
| 34 | 01643-21232 | WASHER | 10001-10042 | |
| 35 | 01580-11210 | NUT | 10001-10042 | |
| 36 | 01643-31232 | WASHER | 10001-10042 | |
| 37 | 01580-11210 | NUT | 10001-10042 | |
| 38 | 195-57-21130 | BRACKET | 10001-10042 | |
| 39 | 09350-01615 | BUSHING | 10001-10042 | |
| 40 | 01641-21626 | WASHER | 10001-10042 | |
| 41 | 04064-01610 | RING,SNAP | 10001-10042 | |
| 42 | 01010-81225 | BOLT | 10001-10042 | |
| 43 | 01643-31232 | WASHER | 10001-10042 | |
| 44 | 195-57-21140 | LEVER | 10001-10042 | |
| 45 | 09304-01240 | KNOB | 10001-10042 | |
| 46 | 04245-40834 | ROD | 10001-10042 | |
| 47 | 01580-10806 | NUT | 10001-10042 | |
| 48 | 04211-20844 | YOKE | 10001-10042 | |
| 49 | 04205-10825 | PIN | 10001-10042 | |
| 50 | 01641-20812 | WASHER | 10001-10042 | |
| 51 | 04050-12012 | PIN,COTTER | 10001-10042 | |
| 52 | 198-57-11410 | YOKE | 10001-10042 | |
| 53 | 195-57-21170 | LEVER | 10001-10042 | |
| 54 | 01640-21223 | WASHER | 10001-10042 | |
| 55 | 04050-13020 | PIN,COTTER | 10001-10042 | |
| 56 | 198-57-11310 | YOKE | 10001-10042 | |
| 57 | 04205-11245 | PIN | 10001-10042 | |
| 58 | 198-57-11290 | PIN | 10001-10042 | |
| 59 | 04050-13020 | PIN,COTTER | 10001-10042 | |
| 60 | 01640-21223 | WASHER | 10001-10042 | |
| 61 | 144-43-14361 | SPRING | 10001-10042 | |
| 62 | 195-57-21150 | REST,ARM, L.H. | 10001-10042 | |
| 63 | 195-57-21160 | REST,ARM, R.H. | 10001-10042 | |
| 64 | 01010-81020 | BOLT | 10001-10042 | |
| 65 | 01643-31032 | WASHER | 10001-10042 | |
| G-1 | (\8\195-57-X1000) | SEAT BELT GROUP | 10001-10042 | |
| ==================== | ||||
| 66 | 09409-10001 | BELT, LAP | 10001-10042 | |
| 67 | 09409-20000 | BELT, TETHER | 10001-10042 | |
| ==================== | ||||
| 68 | 195-57-21451 | BRACKET,(FOR DUAL TILT DOZER) | 10001-@ |
