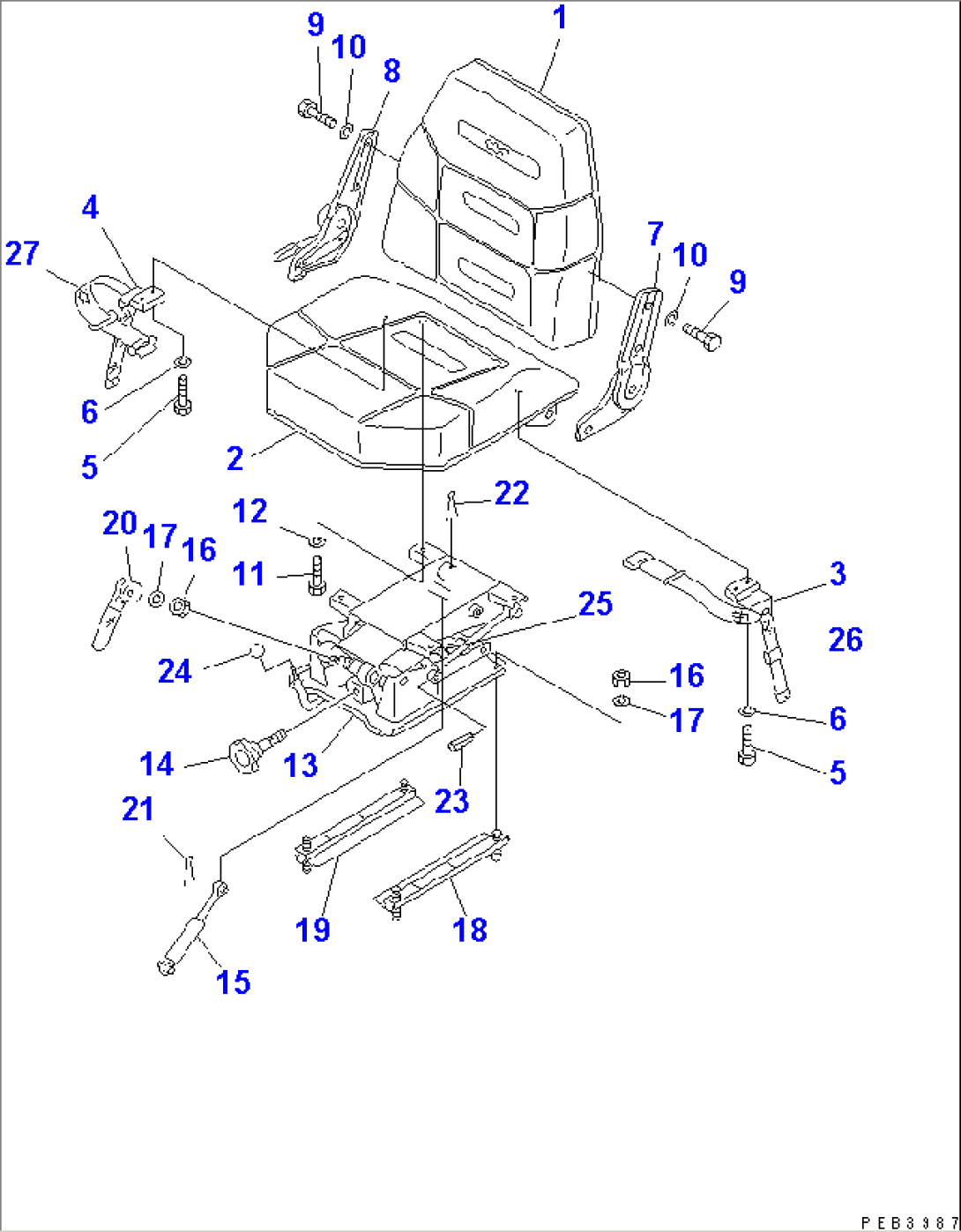

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 198-57-42110 | SEAT,BACK (FABRIC SEAT) | 10017-10017 | |
| 2 | 198-57-42120 | SEAT,CUSHION (FABRIC SEAT) | 10017-10017 | |
| 3 | 195-57-21250 | BRACKET,L.H. | 10017-10017 | |
| 4 | 195-57-21260 | BRACKET,R.H. | 10017-10017 | |
| 5 | 01010-81040 | BOLT | 10017-10017 | |
| 6 | 01602-21030 | WASHER,SPRING | 10017-10017 | |
| 7 | 155-57-12182 | BRACKET | 10017-10017 | |
| 8 | 155-57-12191 | LEVER | 10017-10017 | |
| 9 | 01010-81020 | BOLT | 10017-10017 | |
| 10 | 01602-21030 | WASHER,SPRING | 10017-10017 | |
| 11 | 01010-81020 | BOLT | 10017-10017 | |
| 12 | 01602-21030 | WASHER,SPRING | 10017-10017 | |
| 13 | 19M-57-11610 | SUSPENSION ASS'Y | 10017-10017 | |
| 14 | 155-57-12320 | KNOB | 10017-10017 | |
| 15 | 155-57-12330 | DAMPER | 10017-10017 | |
| 16 | 01580-11210 | NUT | 10017-10017 | |
| 17 | 01602-21236 | WASHER,SPRING | 10017-10017 | |
| 18 | 195-57-21211 | ADJUSTER | 10017-10017 | |
| 19 | 195-57-21221 | ADJUSTER | 10017-10017 | |
| 20 | 195-57-21190 | LEVER | 10017-10017 | |
| 21 | 04050-13015 | PIN,COTTER | 10017-10017 | |
| 22 | 04050-14025 | PIN,COTTER | 10017-10017 | |
| 23 | 04025-00432 | PIN,SPRING | 10017-10017 | |
| 24 | 09304-00835 | KNOB | 10017-10017 | |
| 25 | 19M-57-11460 | SPRING | 10017-10017 | |
| 26 | 09409-10001 | BELT, LAP | 10017-10017 | |
| 27 | 09409-20000 | BELT, TETHER | 10017-10017 |
