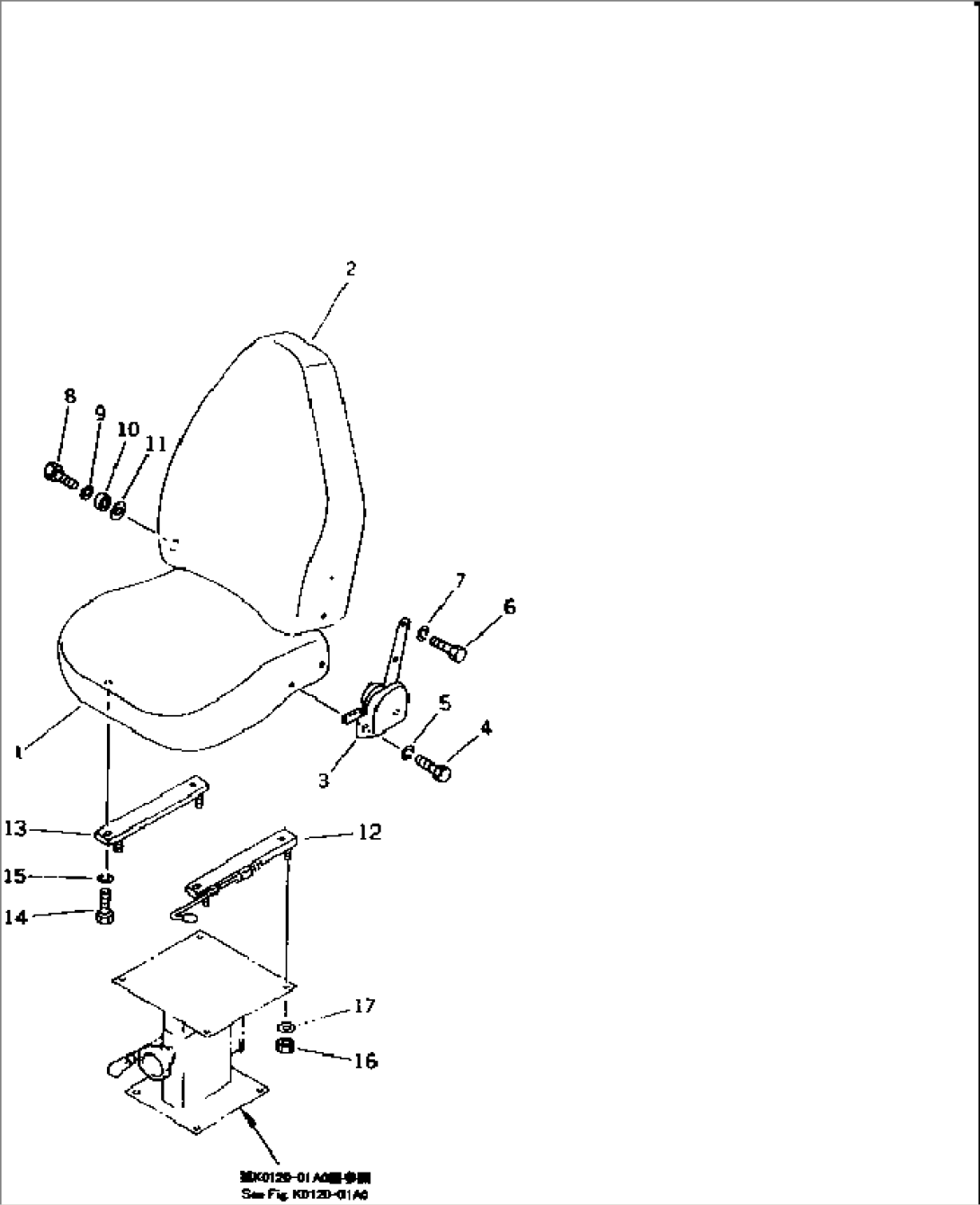

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20Y-57-11510 | CUSHION,SEAT | 7056- | |
| 203-57-53110 | CUSHION,SEAT | 6001-7055 | ||
| 2 | 203-57-53520 | CUSHION,BACK | 6001- | |
| 3 | 203-57-53220 | RECLINING ASS'Y | 6001- | |
| 4 | 01010-80816 | BOLT | 7782- | |
| 01010-50816 | BOLT | 6001-7781 | ||
| 5 | 01602-20825 | WASHER,SPRING | 6001- | |
| 6 | 01010-80820 | BOLT | 7782- | |
| 01010-50820 | BOLT | 6001-7781 | ||
| 7 | 01602-20825 | WASHER,SPRING | 6001- | |
| 8 | 01010-81030 | BOLT | 7782- | |
| 01010-51030 | BOLT | 6001-7781 | ||
| 9 | 01643-31032 | WASHER | 6001- | |
| 10 | 203-57-53180 | COLLAR | 6001- | |
| 11 | 01643-31032 | WASHER | 6001- | |
| 12 | 203-57-51562 | ADJUSTER,L.H. | 6001- | |
| 13 | 203-57-51570 | ADJUSTER,R.H. | 6001- | |
| 14 | 01010-80820 | BOLT | 7782- | |
| 01010-50820 | BOLT | 6001-7781 | ||
| 15 | 01602-20825 | WASHER,SPRING | 6001- | |
| 16 | 01580-10806 | NUT | 6001- | |
| 17 | 01643-30823 | WASHER | 6001- |
