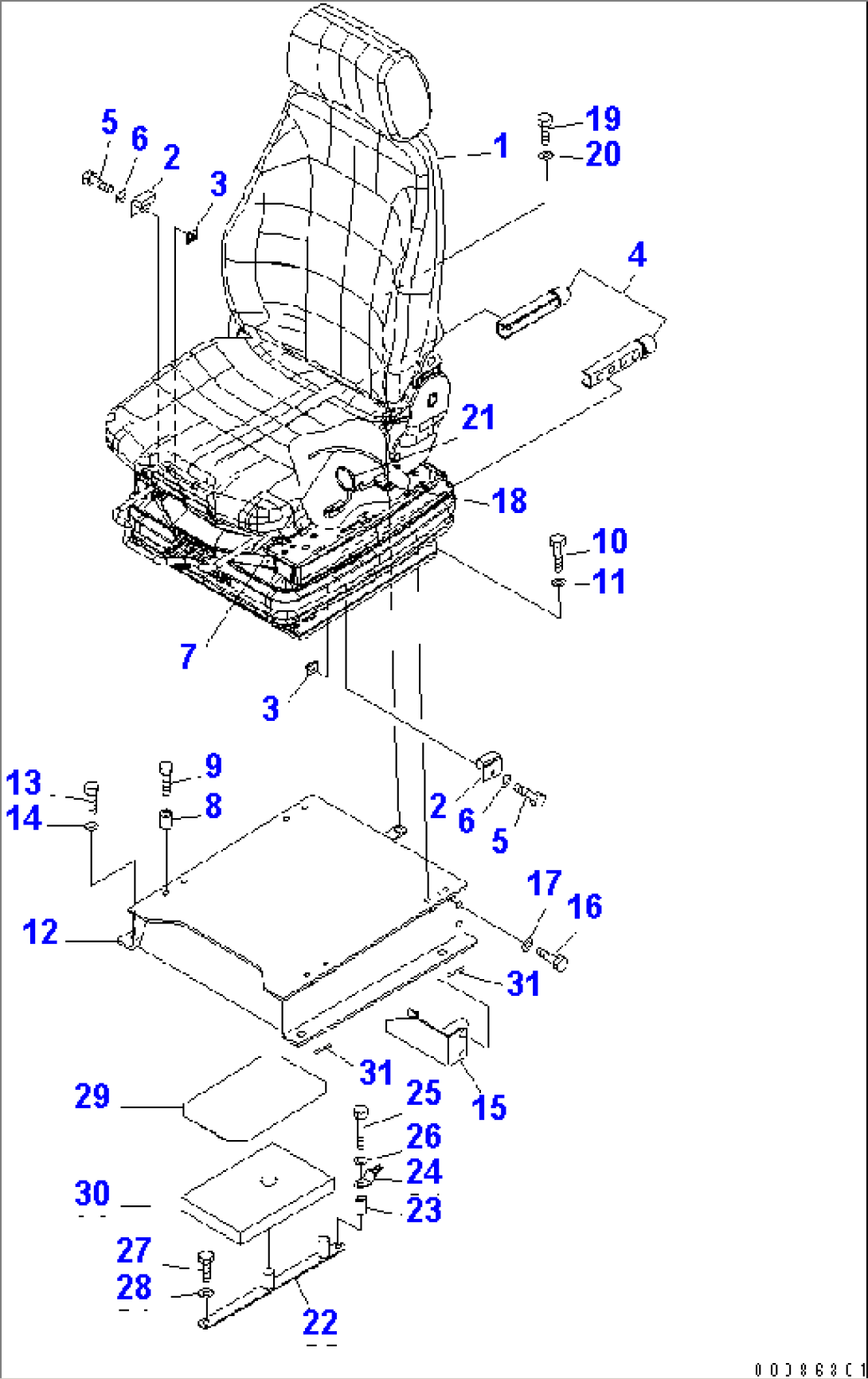

| Item | Part No. | Part Name | Qty | Serial No. |
| 425-S33-3513 | SEAT ASS'Y | 90101- | ||
| 425-S33-3511 | SEAT ASS'Y | 85380-90100 | ||
| \0\425-S33-3510 | SEAT ASS'Y | 85001-85379 | ||
| 1 | (426-57-21413) | SEAT ASS'Y | 90101- | |
| 1 | (426-57-21411) | SEAT ASS'Y | 85001-90100 | |
| 2 | 428-S33-2752 | SPACER | 85001- | |
| 3 | 428-S33-2760 | PLATE | 85001- | |
| 4 | 428-S33-2790 | STOPPER | 85380-90100 | |
| 4 | 428-S33-2780 | STOPPER | 85001-85379 | |
| 5 | 01010-80816 | BOLT | 85001- | |
| 6 | 01643-30823 | WASHER | 85001- | |
| 7 | 08192-12810 | CONNECTOR | 85001- | |
| 8 | 11T-27-11180 | SPACER | 85001- | |
| 9 | 01252-70845 | BOLT | 85001- | |
| 10 | 01010-D0835 | BOLT | 85001- | |
| 11 | 01643-70823 | WASHER | 85001- | |
| 12 | 423-S33-4111 | BRACKET | 85001- | |
| 13 | 01010-81230 | BOLT | 85001- | |
| 14 | 01643-51232 | WASHER | 85086- | |
| 14 | 01643-31232 | WASHER | 85001-85085 | |
| 15 | 423-S33-4131 | BRACKET | 85001- | |
| 16 | 01010-81025 | BOLT | 85001- | |
| 17 | 01643-31032 | WASHER | 85001- | |
| 18 | 04434-50812 | CLIP | 85001- | |
| 19 | 01010-81025 | BOLT | 85001- | |
| 20 | 01643-31032 | WASHER | 85001- | |
| 21 | 08034-40521 | BAND | 85001- | |
| 22 | 423-S33-4121 | BRACKET | 85001- | |
| 23 | 427-03-10370 | SPACER | 85001- | |
| 24 | 08193-21012 | CLIP | 85001- | |
| 25 | 01010-81060 | BOLT | 85086- | |
| 25 | 01010-81055 | BOLT | 85001-85085 | |
| 26 | 01643-31032 | WASHER | 85001- | |
| 27 | 01010-81025 | BOLT | 85001- | |
| 28 | 01643-31032 | WASHER | 85001- | |
| 29 | 423-S33-4260 | SHEET | 85001- | |
| 30 | 423-S33-4270 | SHEET | 85001- | |
| 31 | 421-57-31190 | SHIM, 0.50MM | 85416- |
