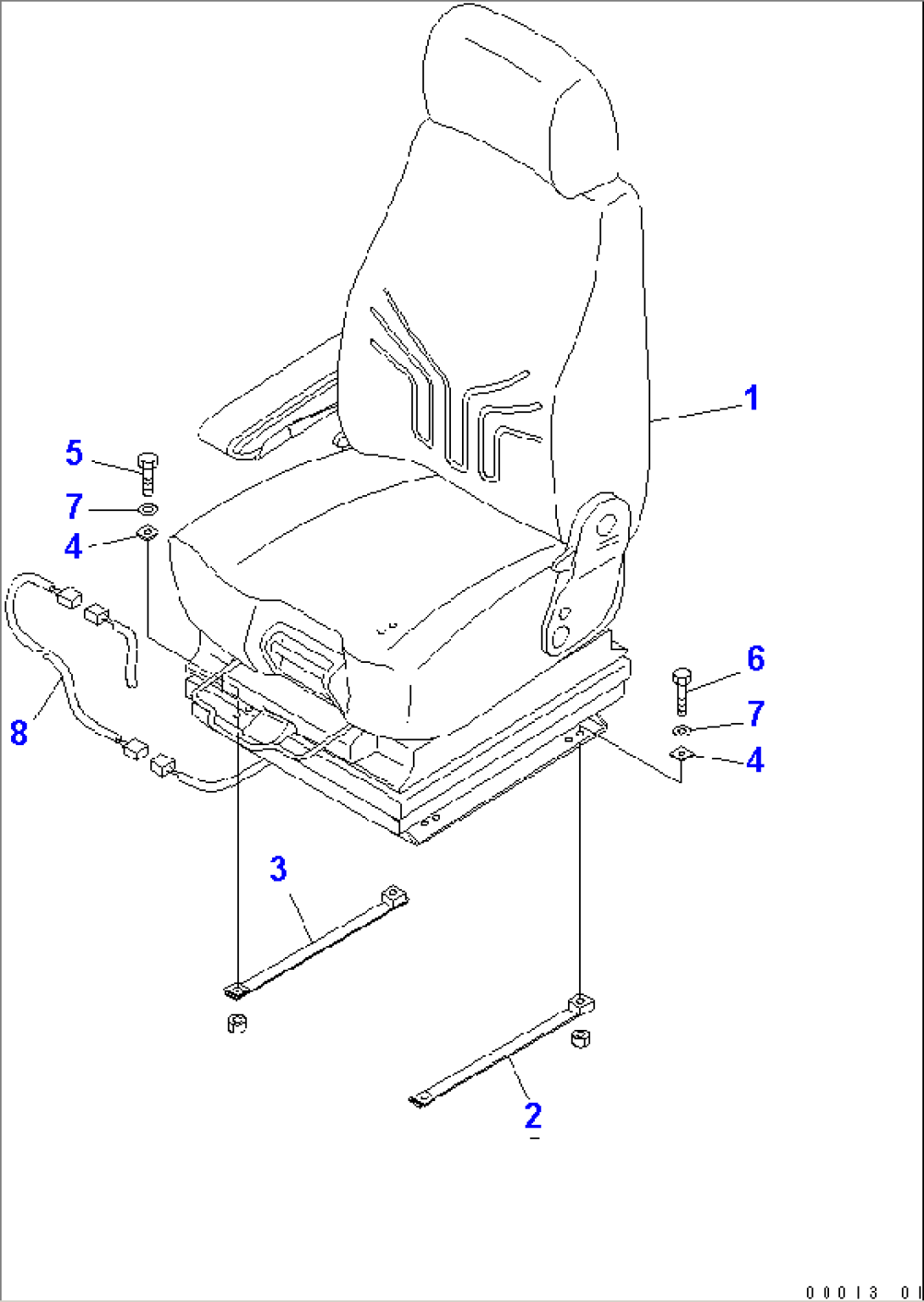

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 428-S33-2711 | SEAT ASS'Y | 51002- | |
| 2 | 428-S33-2730 | BRACKET,L.H. | 51001- | |
| 3 | 428-S33-2740 | BRACKET,R.H. | 51001- | |
| 4 | 428-57-21150 | WASHER | 51001- | |
| 5 | 01010-80835 | BOLT | 51001- | |
| 6 | 01010-80845 | BOLT | 51001- | |
| 7 | 01643-30823 | WASHER | 51001- | |
| 8 | 428-57-21120 | WIRING HARNESS | 51001- |
