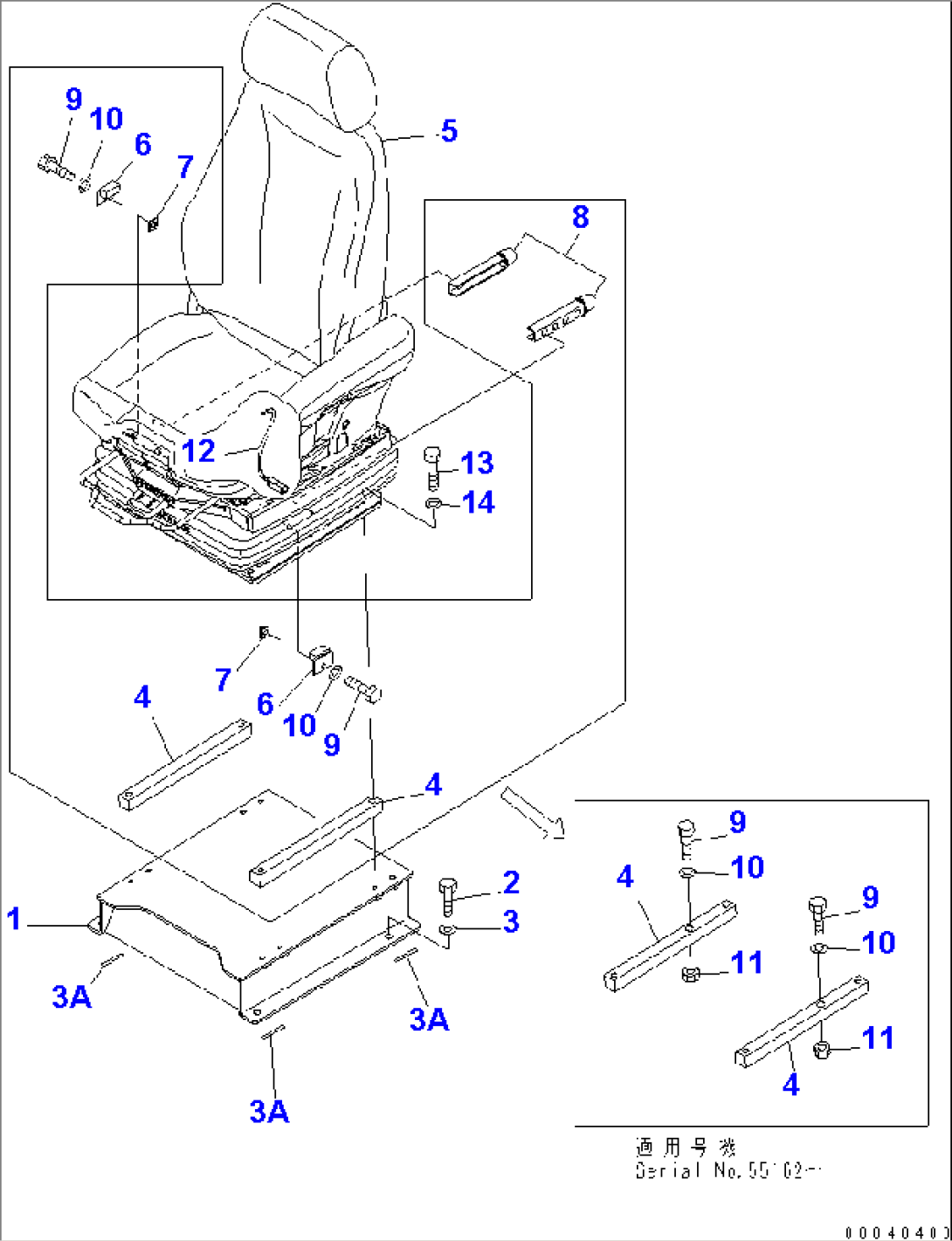

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 425-54-32711 | BRACKET | 55001- | |
| 2 | 01010-81230 | BOLT | 55001- | |
| 3A | 421-57-31190 | SHIM, 0.50MM | 55385- | |
| 3 | 01643-51232 | WASHER | 55163- | |
| 3 | 01643-31232 | WASHER | 55001-55162 | |
| 4 | 425-57-31130 | PLATE | 55162- | |
| 4 | 426-57-31110 | PLATE | 55001-55161 | |
| \0\425-57-31122 | SEAT ASS'Y | 55479- | ||
| 425-57-31121 | SEAT ASS'Y | 55162-55478 | ||
| 425-57-31120 | SEAT ASS'Y | 55001-55161 | ||
| 5 | (426-57-21411) | SEAT ASS'Y | 55001- | |
| 6 | 428-S33-2752 | SPACER | 55001-55161 | |
| 7 | 428-S33-2760 | PLATE | 55001-55161 | |
| 8 | 428-S33-2780 | STOPPER | 55001-55161 | |
| 9 | 01010-80816 | BOLT | 55001- | |
| 10 | 01643-30823 | WASHER | 55001- | |
| 11 | 01580-00806 | NUT | 55162- | |
| 12 | 08192-12810 | CONNECTOR | 55001- | |
| 13 | 01010-D0860 | BOLT | 55001- | |
| 14 | 01643-70823 | WASHER | 55001- |
