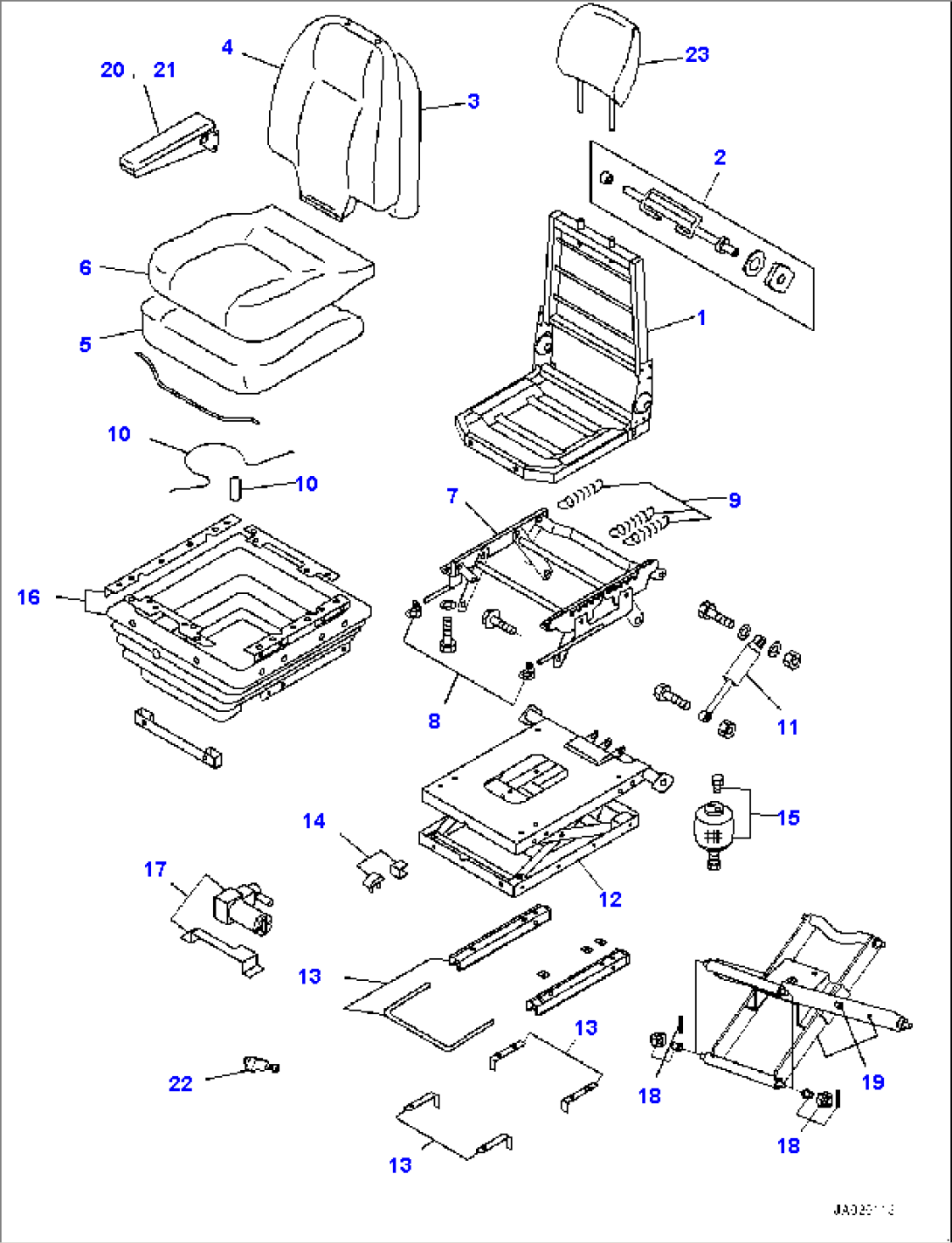

| Item | Part No. | Part Name | Qty | Serial No. |
| 417-960-5111 | Seat Assembly | 80001- | ||
| 1 | ASCN210038 | Frame Assembly | 80001- | |
| 2 | AS159546 | Lumbar Support Kit | 80001- | |
| 3 | AS160430 | Back Foam Kit | 80001- | |
| 4 | ASCN210039 | Back Cover Kit | 80001- | |
| 5 | AS160432 | Seat Foam Kit | 80001- | |
| 6 | AS170937 | Seat Cover Kit | 80001- | |
| 7 | AS166010 | Height Adjuster Kit | 80001- | |
| 8 | AS170985 | Handle Kit | 80001- | |
| 9 | AS160122 | Spring Kit | 80001- | |
| 10 | AS162032 | Cable Kit | 80001- | |
| 11 | AS198243 | Damper Kit | 80001- | |
| 12 | AS170990 | Suspension Assembly Kit | 80001- | |
| 13 | AS198281 | Sliderail Kit | 80001- | |
| 14 | AS160436 | Bump Stop/Up Stop Kit | 80001- | |
| 15 | AS163954 | Air Spring Kit, Screw-in Elbow Fitting | 80001- | |
| 15 | AS187497 | Air Spring Kit, Integral Push-in Fitting | 80001- | |
| 16 | AS190388 | Suspension Cover Kit, GT Valve (metal version) | 80001- | |
| 16 | AS190389 | Suspension Cover Kit, KV Valve (plastic version) | 80001- | |
| 17 | AS201544 | Compressor Kit | 80001- | |
| 18 | AS164000 | Bearing Kit | 80001- | |
| 19 | AS166007 | Lever and Center Pivot | 80001- | |
| 20 | AS166386 | Arm Rest, L.H. | 80001- | |
| 21 | AS165216 | Arm Rest, R.H. | 80001- | |
| 22 | AS172649 | Valve Kit, GT Valve (metal version) | 80001- | |
| 22 | AS182831 | Valve Kit, KV Valve (plastic version) | 80001- | |
| 22 | AS170203 | Suspension Cover Clips | 80001- | |
| 22 | AS190472 | Flylead Kit | 80001- | |
| 23 | AS197031 | Headrest Kit | 80001- |
