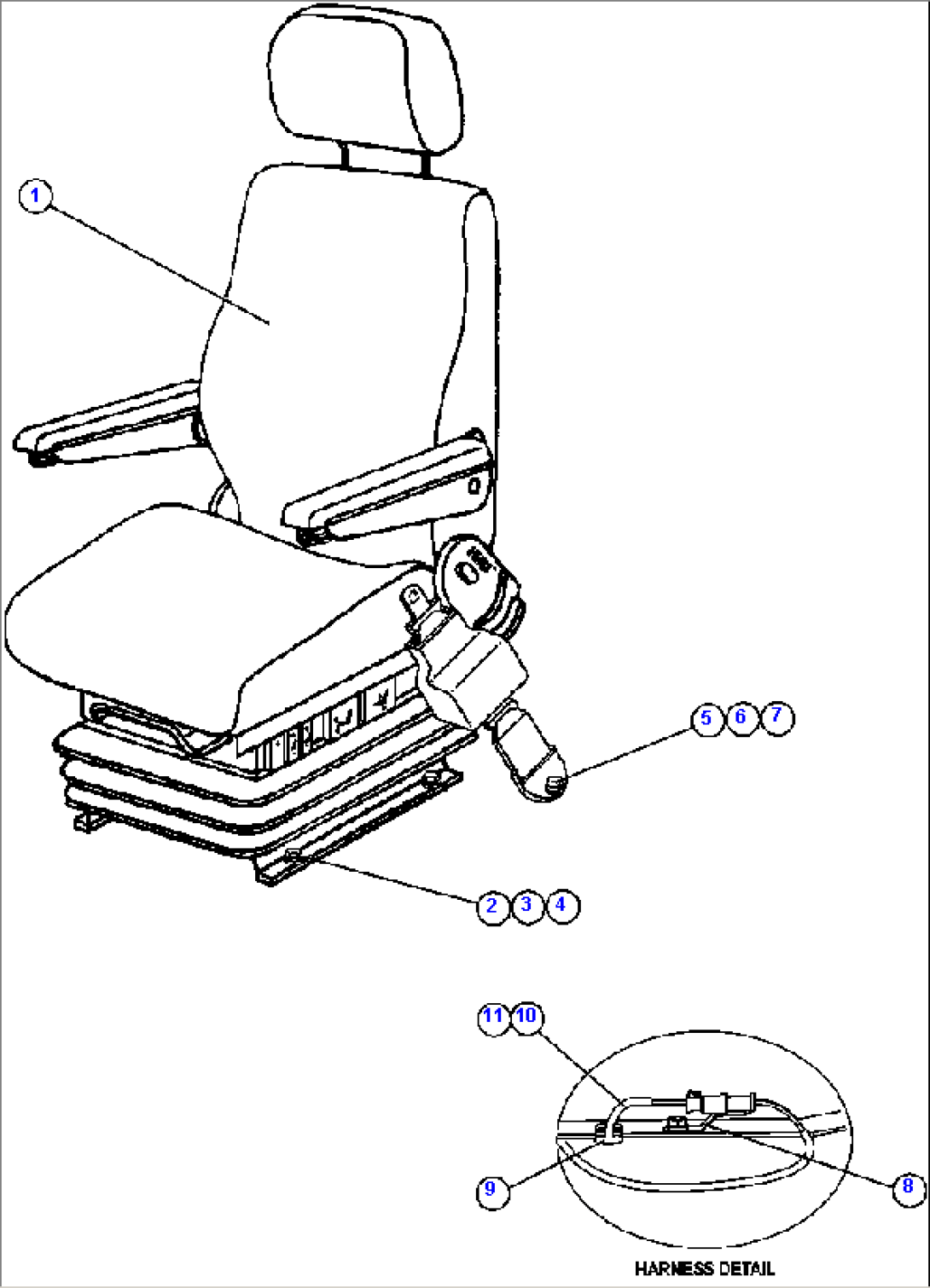

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | PC2324 | SEAT ASSEMBLY (SEE FOLLOWING PAGES) | ||
| 2 | TD0794 | CAPSCREW - 5/16" - 18NC X 3/4" | ||
| 3 | TV0177 | FLAT WASHER - 5/16" | ||
| 4 | SC4174 | LOCKWASHER - 5/16" | ||
| 5 | WB1089 | CAPSCREW - 7/16" - 20NF X 1 1/2" | ||
| 6 | WA4727 | FLAT WASHER - 7/16" | ||
| 7 | TD0795 | LOCKWASHER - 7/16" | ||
| 8 | 08193-21012 | CLIP | ||
| 9 | VP4693 | GROMMET | ||
| 10 | EM2889 | HARNESS, AIR SEAT | ||
| 11 | VH5017 | TYRAP |
