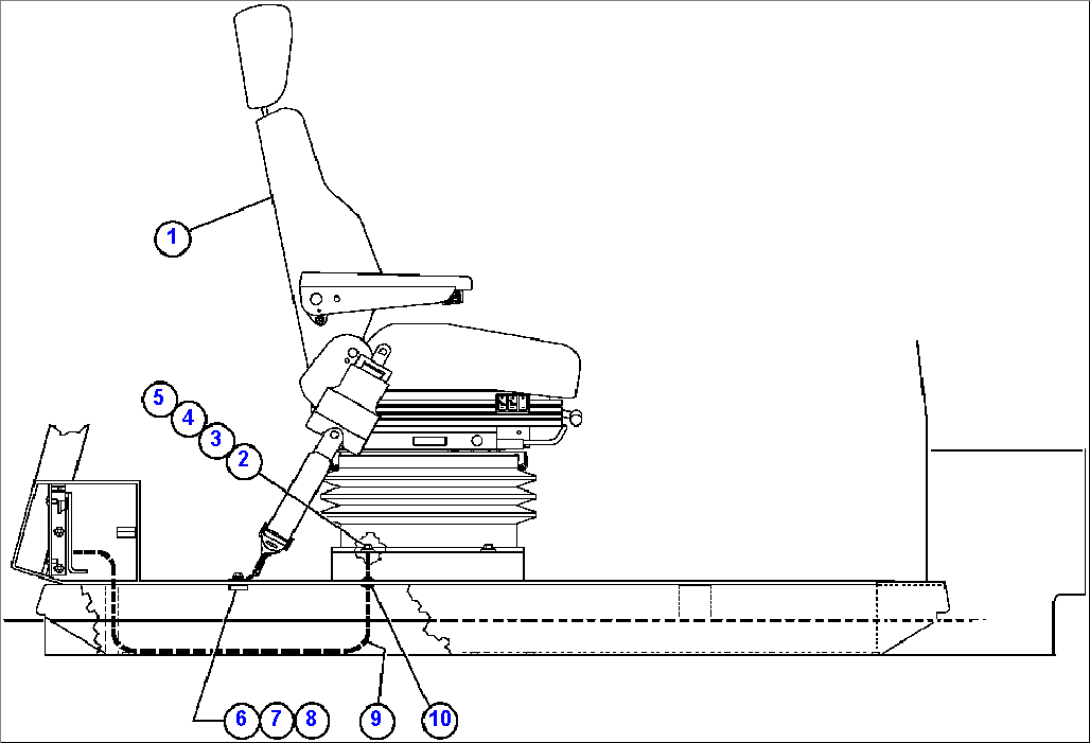

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | EJ8295 | SEAT ASSEMBLY (SEE INDEX) | ||
| 2 | TD0794 | CAPSCREW - 5/16" - 18NC X 3/4" | ||
| 3 | TV0177 | FLATWASHER - 5/16" | ||
| 4 | SC4174 | LOCKWASHER - 5/16" | ||
| 5 | TD1684 | NUT - 5/16" - 18NC | ||
| 6 | WB1089 | CAPSCREW - 7/16" - 20NF X 1-1/2" | ||
| 7 | MM0713 | FLATWASHER, HARDENED - M10 (ZINC) | ||
| 8 | TD0795 | LOCKWASHER - 7/16" | ||
| 9 | EG4511 | HARNESS, SEAT | ||
| 10 | TD2186 | GROMMET |
