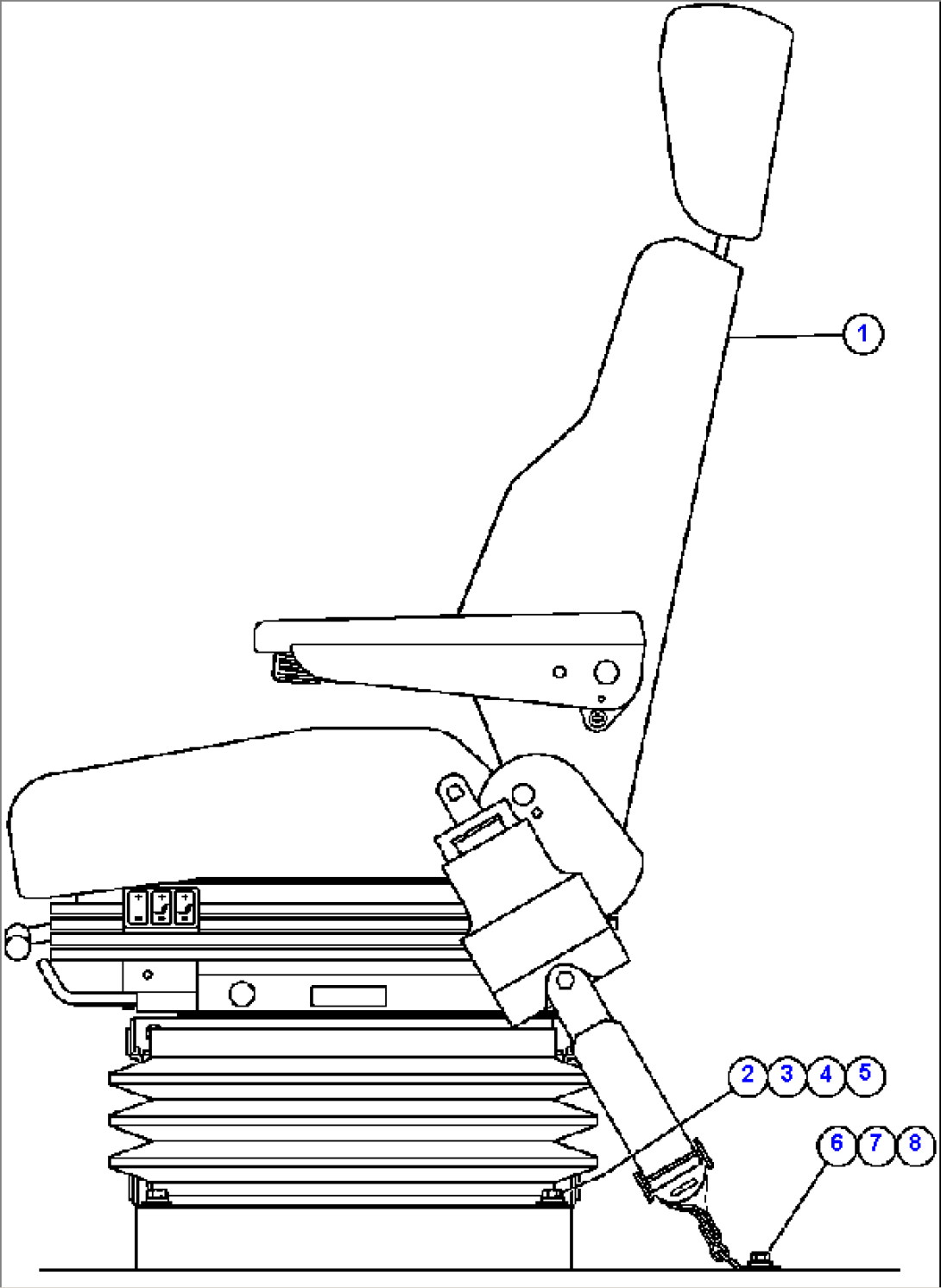

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | PB8649 | SEAT ASSEMBLY (SEE FOLLOWING PAGES) | ||
| 2 | TD0794 | CAPSCREW - 5/16" - 18NC X 3/4" | ||
| 3 | WA4725 | FLAT WASHER - 5/16" | ||
| 4 | SC4174 | LOCKWASHER - 5/16" | ||
| 5 | TD1684 | NUT - 5/16" - 18NC | ||
| 6 | WB1089 | CAPSCREW - 7/16" - 20NF X 1 1/2" | ||
| 7 | WA4727 | FLAT WASHER - 7/16" | ||
| 8 | TD0795 | LOCKWASHER - 7/16" | ||
| NS|9 | NOTE: NS = NOT SHOWN | |||
| NS|10 | EG4511 | HARNESS, AIR RIDE SEAT |
