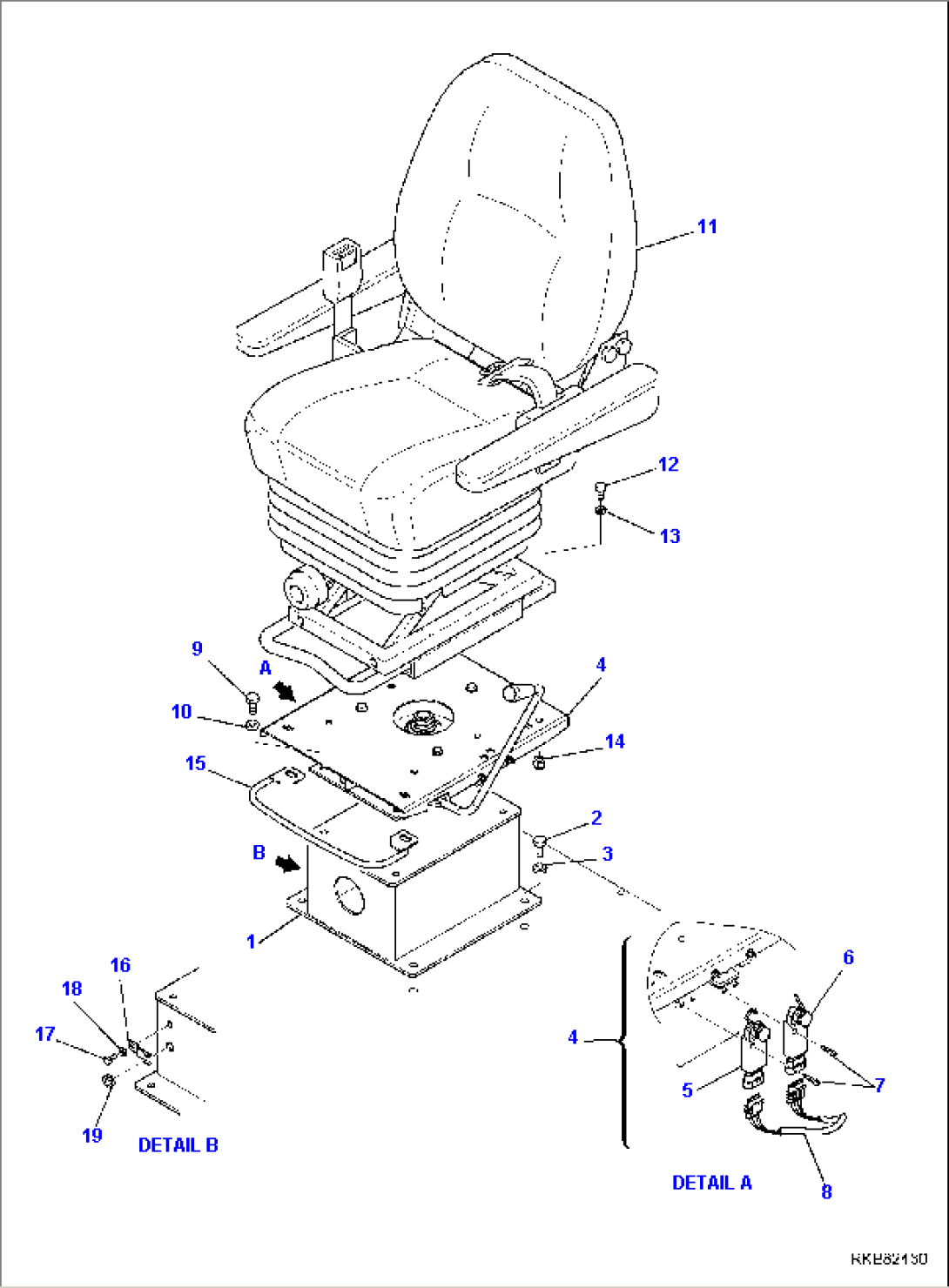

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 42N-54-14590 | SEAT, SUPPORT ASSEMBLY | F30451- | |
| 2 | 42N-54-15910 | BOLT | F30451- | |
| 3 | 01643-11032 | WASHER | F30451- | |
| 4 | 42N-56-15030 | SEAT, SUPPORT ASSEMBLY | F30451- | |
| 5 | 42N-06-12391 | SWITCH | F30451- | |
| 6 | 42N-06-12470 | SWITCH | F30451- | |
| 7 | 01252-70420 | BOLT | F30451- | |
| 8 | 42N-06-12380 | WIRING HARNESS, SEAT SUPPORT | F30451- | |
| 9 | 42N-54-15910 | BOLT | F30451- | |
| 10 | 01643-11032 | WASHER | F30451- | |
| 11 | (42N-54-17790) | OPERATOR'S SEAT, ASSEMBLY | F30451- | |
| 12 | 42N-54-15950 | SCREW | F30451- | |
| 13 | 01643-10823 | WASHER | F30451- | |
| 14 | 395-56-13600 | NUT | F30451- | |
| 15 | 42N-54-14321 | PROTECTION | F30451- | |
| 16 | 395-56-12B20 | BRACKET | F30451- | |
| 17 | 42N-54-15160 | BOLT | F30451- | |
| 18 | 01640-30610 | WASHER | F30451- | |
| 19 | 21D-54-14791 | GROMMET | F30451- |
