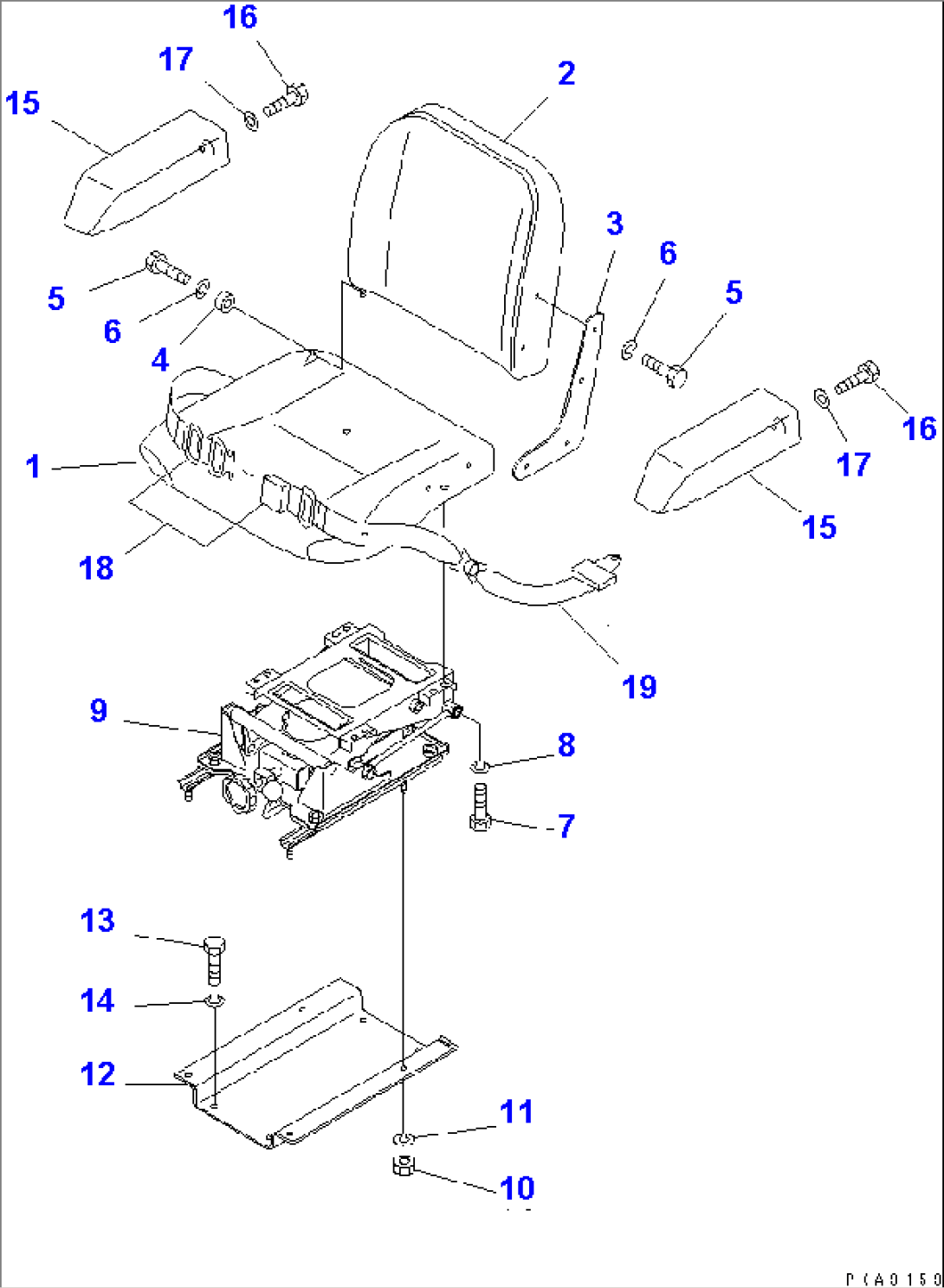

| Item | Part No. | Part Name | Qty | Serial No. |
| 120-57-31304 | SEAT ASS'Y | 82467- | ||
| 120-57-31314 | CUSHION ASS'Y | 82467- | ||
| 1 | 120-57-31322 | CUSHION,SEAT | 82467- | |
| 2 | 120-57-31252 | CUSHION,BACK | 82467- | |
| 3 | 120-57-31461 | PLATE | 82467- | |
| 4 | 120-57-31241 | SPACER | 82467- | |
| 5 | 01010-31020 | BOLT | 82467- | |
| 6 | 01602-21030 | WASHER,SPRING | 82467- | |
| 7 | 01010-51020 | BOLT | 82467- | |
| 8 | 01602-21030 | WASHER,SPRING | 82467- | |
| 9 | (120-57-31332) | SUSPENSION ASS'Y | 82467- | |
| 10 | 01580-11210 | NUT | 82467- | |
| 11 | 01602-01236 | WASHER,SPRING | 82467- | |
| 12 | 120-57-31152 | BRACKET | 82467- | |
| 13 | 01010-51225 | BOLT | 82467- | |
| 14 | 01602-21236 | WASHER,SPRING | 82467- | |
| 15 | 114-57-41140 | REST,ARM | 82467- | |
| 16 | 01010-51020 | BOLT | 82467- | |
| 17 | 01643-31032 | WASHER,SPRING | 82467- | |
| 18 | 09409-10001 | BELT, LAP,LAP | 82467- | |
| 19 | 09409-20000 | BELT, TETHER | 82467- |
