| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01010-D0820 | Bolt | 30001- | |
| 2 | 01643-70823 | Washer | 30001- | |
| 3 | 17A-57-51240 | Cushion | 30001- | |
| 4 | 17A-57-51250 | Cushion | 30001- | |
| 5 | 12Y-57-21211 | Bracket | 30001- | |
| 6 | 01010-D1230 | Bolt | 30001- | |
| 7 | 01643-71232 | Washer | 30001- |
- Главная
- Каталог запчастей
- Бульдозеры
- D61exi 23 s/n 30001 up
- Operator's compartment and control system
- Operator's seat, mounting (#30001 )
Поиск по каталогу

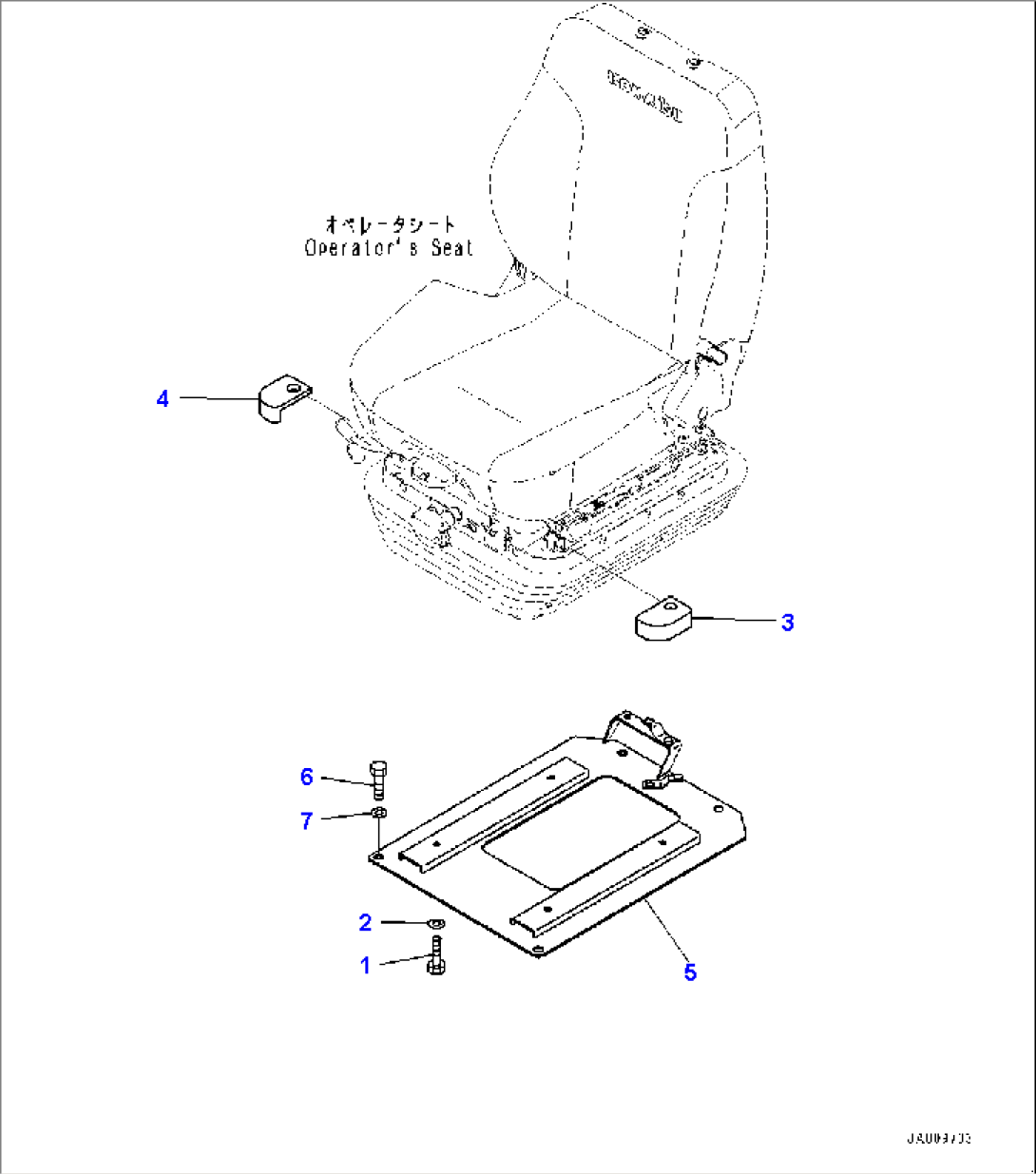

Operator's Seat, Mounting (#30001-)
