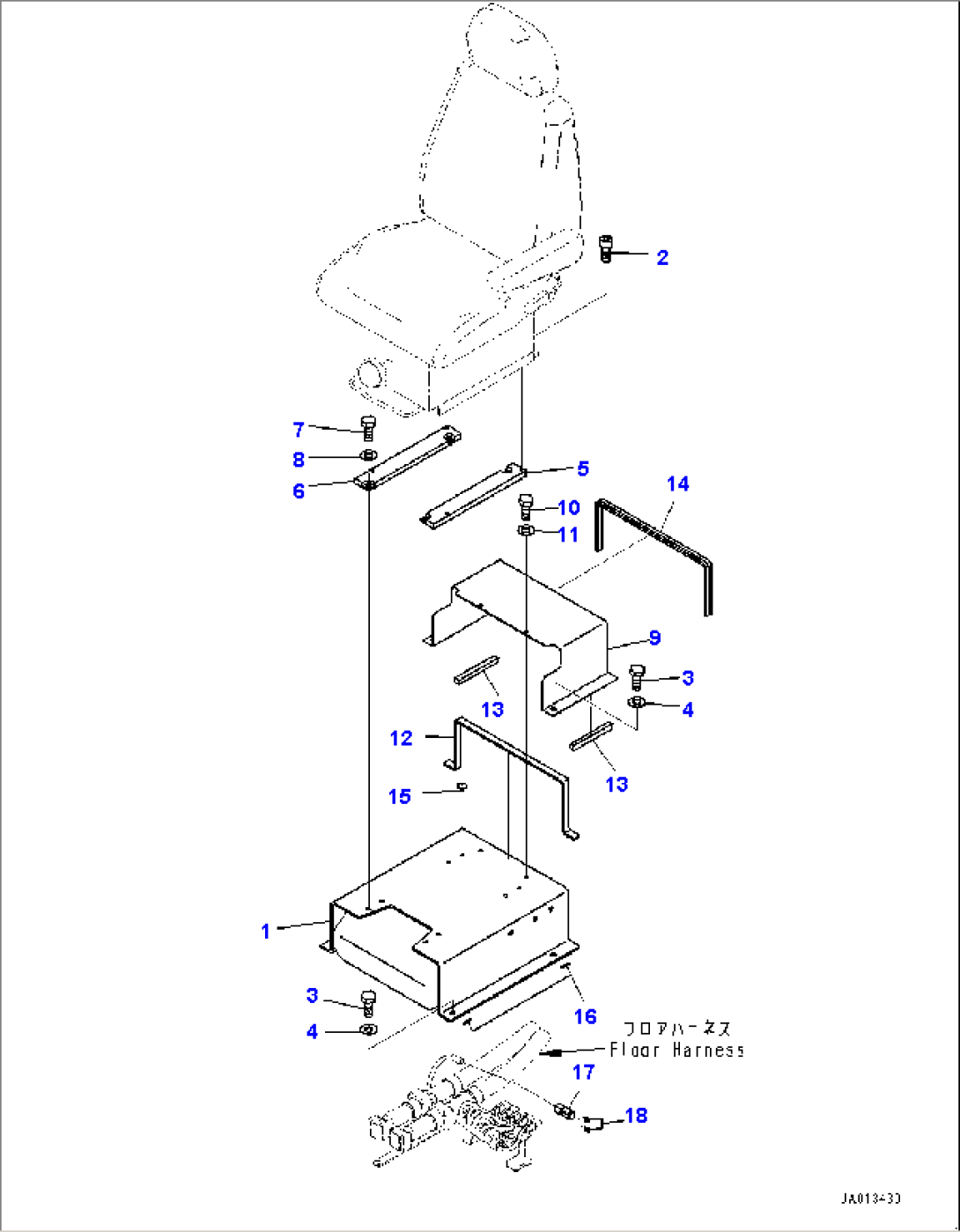

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 423-54-42730 | Bracket | 90216- | |
| 2 | 01252-70816 | Bolt | 90216- | |
| 3 | 01010-81235 | Bolt | 90216- | |
| 4 | 01643-31232 | Washer | 90216- | |
| 5 | 421-57-41320 | Bracket | 90216- | |
| 6 | 421-57-41330 | Bracket | 90216- | |
| 7 | 01010-80825 | Bolt | 90216- | |
| 8 | 01643-30823 | Washer | 90216- | |
| 9 | 423-54-42740 | Cover | 90216- | |
| 10 | 01010-80825 | Bolt | 90216- | |
| 11 | 01643-30823 | Washer | 90216- | |
| 12 | 423-54-42750 | Sheet | 90216- | |
| 13 | 423-54-42760 | Sheet | 90216- | |
| 14 | 423-54-42770 | Sheet | 90216- | |
| 15 | 421-09-21210 | Button | 90216- | |
| 16 | 421-57-31190 | Shim, T=0.50mm | 90216- | |
| 17 | 08192-12100 | Connector Assembly | 90932- | |
| 18 | 08191-00770 | Plug, Connector | 90932- |
