| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01252-70816 | BOLT | F30001-F30076 | |
| 2 | 22M-57-21212 | STOPPER | F30001-F30076 | |
| 3 | 01010-D1020 | BOLT | F30001-F30076 | |
| 4 | 01643-71032 | WASHER | F30001-F30076 | |
| 5 | 22L-09-R3760 | PLUG | F30001-F30076 |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc30mr 3 s/n f30001 up
- Frame and its related parts
- Operator's seat, mounting, for canopy
Поиск по каталогу

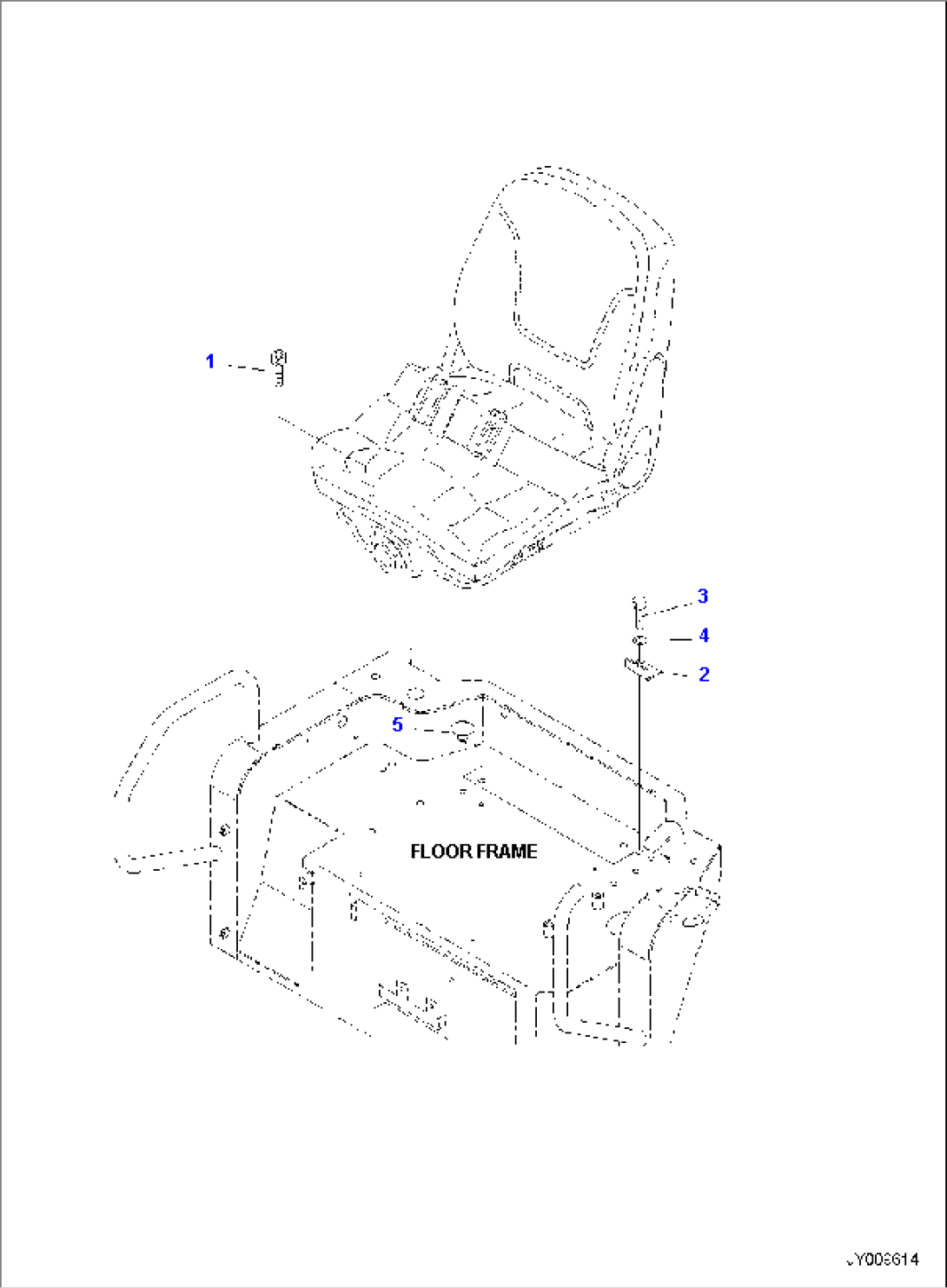

OPERATOR'S SEAT, MOUNTING, FOR CANOPY
