| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 423-960-2111 | BRACKET,L.H. | 50001- | |
| 2 | 423-960-2121 | BRACKET,R.H. | 50001- | |
| 3 | 01435-01225 | BOLT | 50001- | |
| 4 | 01252-70820 | BOLT | .- | |
| 4 | \1\01252-40820 | BOLT | 50001-. | |
| 5 | 01584-00806 | NUT | 50001- | |
| 6 | 02030-70719 | BOLT | 50001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa500 3 s/n 50001 up
- Operator's compartment and control system
- Operator's seat (mounting parts) (for ec)
Поиск по каталогу

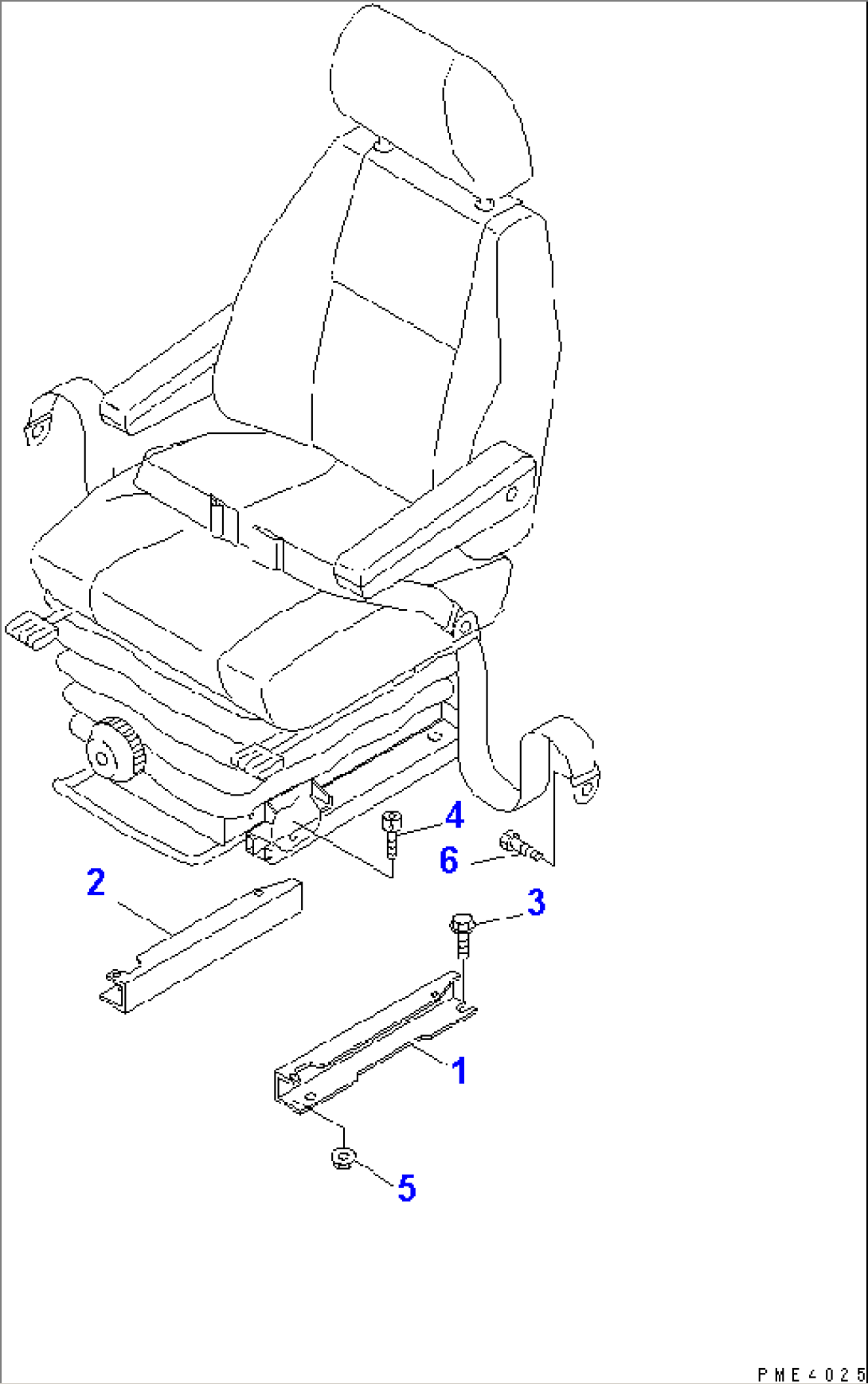

OPERATOR'S SEAT (MOUNTING PARTS) (FOR EC)
