| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 423-960-A030 | Seat Assembly | 70291- | |
| 2 | 421-960-A111 | Bracket | 70291- | |
| 3 | 421-960-A121 | Bracket | 70291- | |
| 4 | 01435-01225 | Bolt | 70291- | |
| 5 | 01252-70820 | Bolt | 70291- | |
| 6 | 421-57-31190 | Shim, T=0.50mm | 70291- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa320 6 s/n 70291 up (standard machine) (for north america)
- Operator's compartment and control system
- Operator's seat, operator's seat related parts (#70291 )
Поиск по каталогу

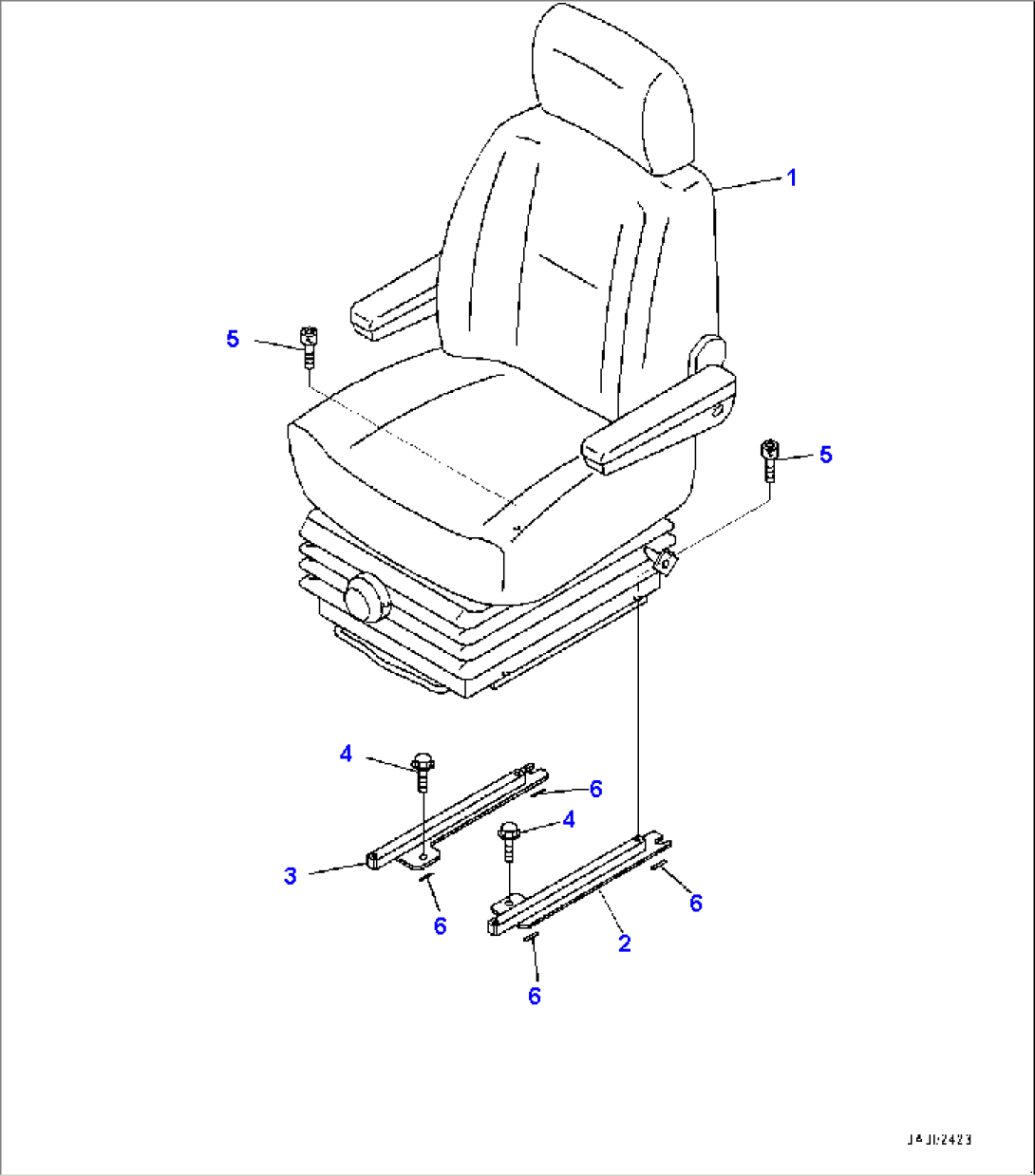

Operator's Seat, Operator's Seat Related Parts (#70291-)
