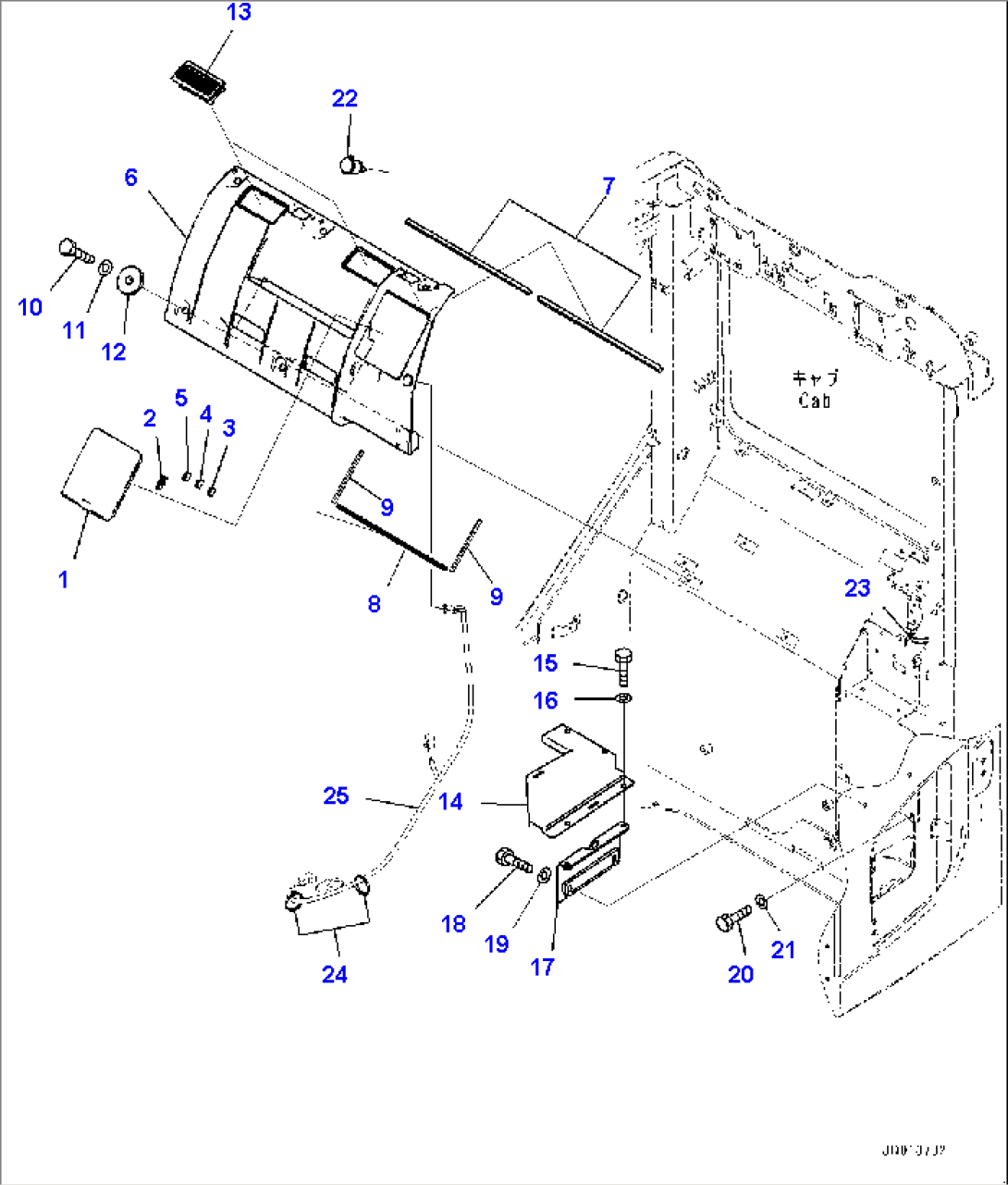

| Item | Part No. | Part Name | Qty | Serial No. |
| Cover Assembly | 24510- | |||
| 20Y-53-13631 | Cover Assembly | 24510- | ||
| 1 | Cover | 24510- | ||
| 2 | 22U-43-22340 | Puller | 24510- | |
| 3 | 08041-01000 | Fuse, 10Amp. | 24510- | |
| 4 | 08041-02000 | Fuse, 20Amp. | 24510- | |
| 5 | 08041-03000 | Fuse, 30Amp. | 24510- | |
| 6 | 22B-54-25481 | Cover | 24510- | |
| 7 | 22B-54-25430 | Seal | 24510- | |
| 8 | 22B-54-25441 | Trim | 24510- | |
| 9 | 22B-54-25451 | Trim | 24510- | |
| 10 | 01010-D0616 | Bolt | 24510- | |
| 11 | 01643-70623 | Washer | 24510- | |
| 12 | 20Y-53-12310 | Collar | 24510- | |
| 13 | 22U-979-2381 | Grille | 24510- | |
| 14 | 22B-54-25411 | Cover | 24510- | |
| 15 | 01010-D0816 | Bolt | 24510- | |
| 16 | 01643-70823 | Washer | 24510- | |
| 17 | 22B-979-2751 | Plate | 24510- | |
| 18 | 01010-D0830 | Bolt | 24510- | |
| 19 | 01643-70823 | Washer | 24510- | |
| 20 | 01010-D0816 | Bolt | 24510- | |
| 21 | 01643-70823 | Washer | 24510- | |
| 22 | 198-Z11-2640 | Socket Assembly | 24510- | |
| 23 | 08034-40521 | Band | 24510- | |
| 24 | 08034-20536 | Band | 24510- | |
| 25 | (22B-06-21481) | Wiring Harness | - | |
| (22B-06-21481) | Wiring Harness | - |
