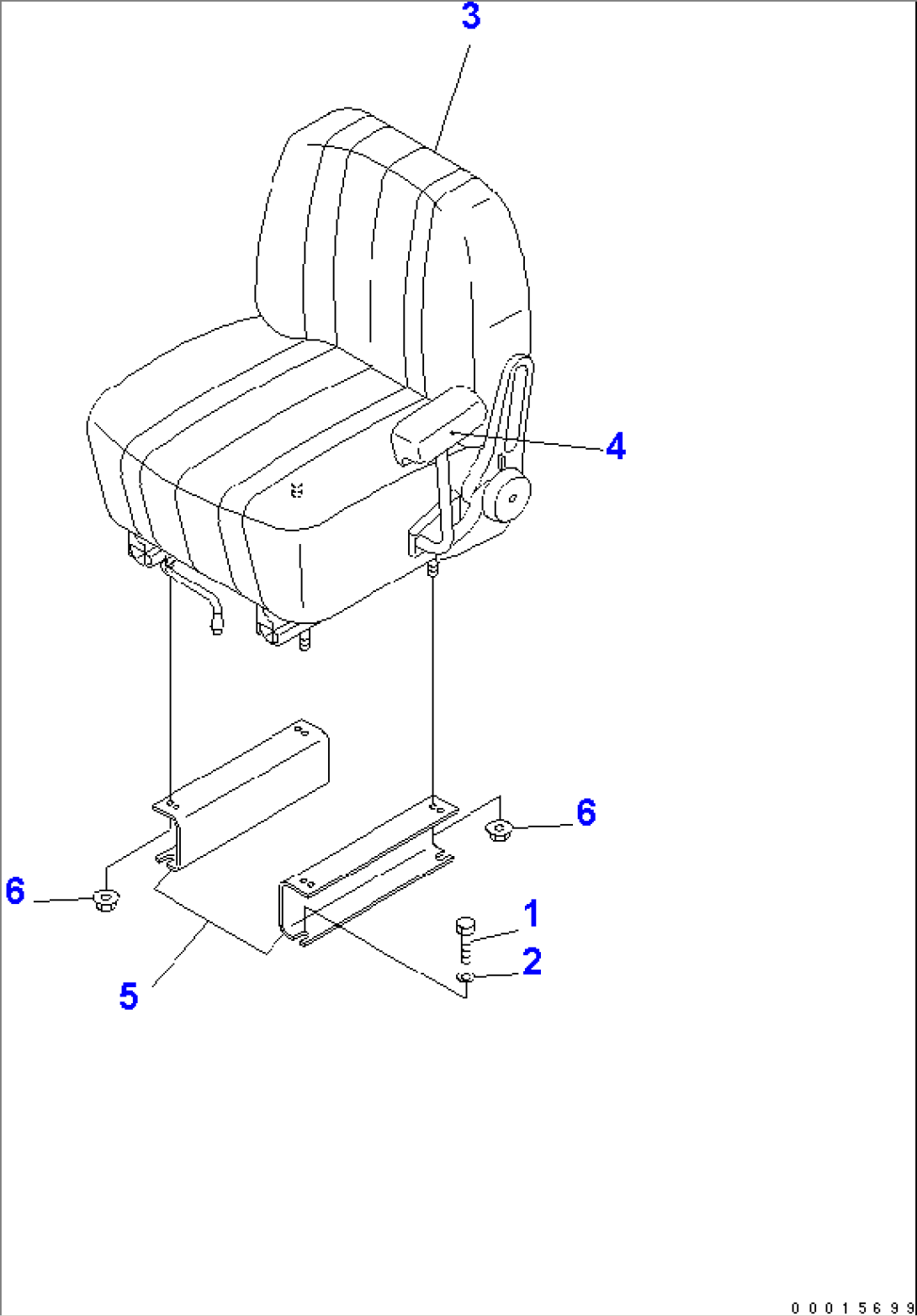

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01010-81230 | BOLT | 70001- | |
| 2 | 01643-31232 | WASHER | 70001- | |
| 418-57-31060 | SEAT ASS'Y | 70001- | ||
| 418-57-31180 | SEAT ASS'Y | 70001- | ||
| 3 | (416-57-21121) | SEAT ASS'Y,(SEE FIG. K0110-02A1) | 70001- | |
| 4 | 416-57-21130 | REST ASS'Y | 70001- | |
| 4 | 416-57-21150 | CUSHION | 70001- | |
| 4 | 416-57-21160 | ARM | 70001- | |
| 4 | 416-57-21180 | BOLT | 70001- | |
| 5 | 418-57-31170 | BRACKET | 70001- | |
| 6 | 01584-00806 | NUT | 70001- |
