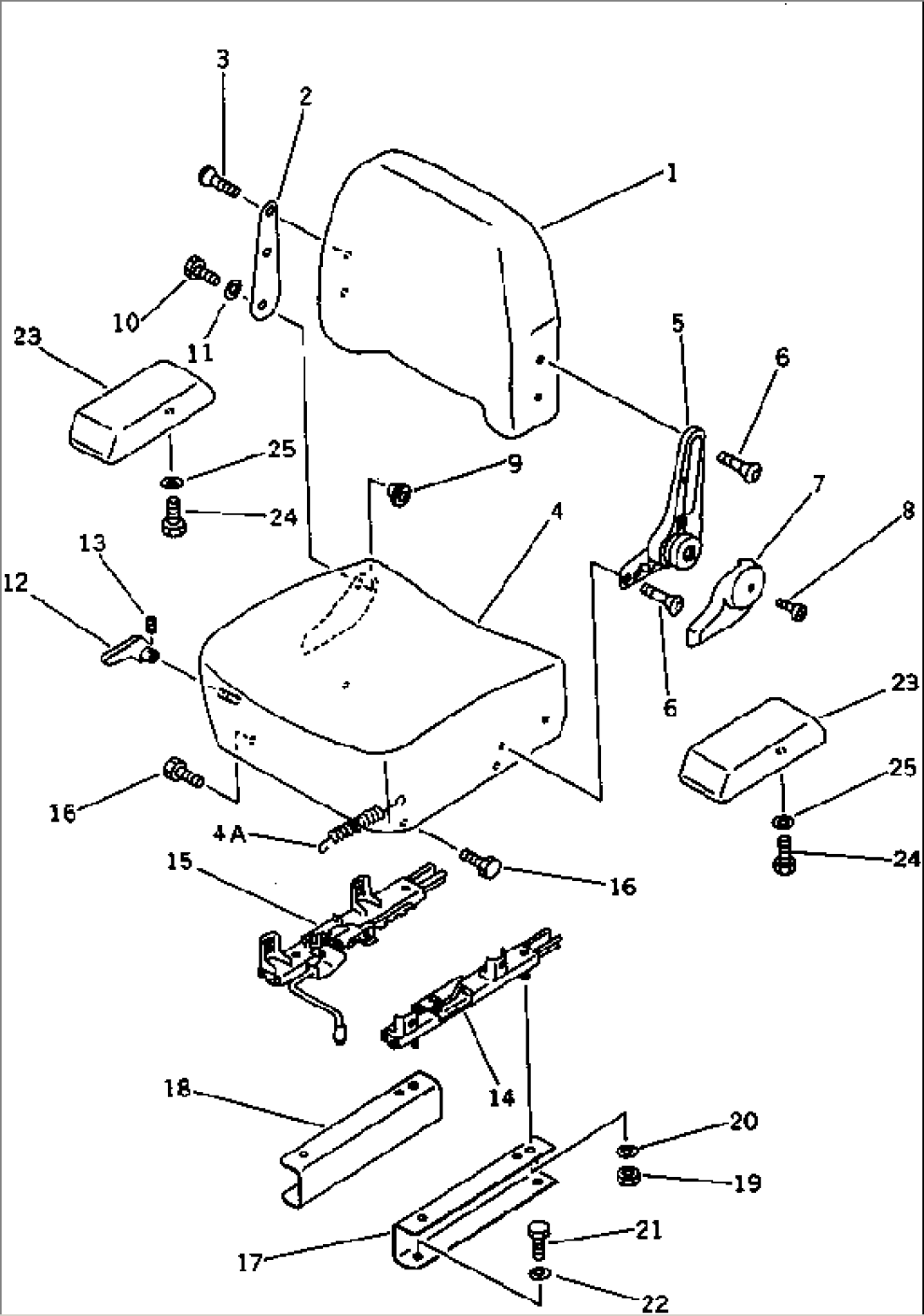

| Item | Part No. | Part Name | Qty | Serial No. |
| 417-57-11220 | SEAT ASS'Y | 10001- | ||
| 1 | 417-57-11250 | CUSHION,BACK | 10001- | |
| 2 | 423-57-11490 | BRACKET | 10001- | |
| 3 | 423-57-11380 | BOLT | 10001- | |
| 4 | 417-57-11260 | CUSHION,SEAT | 10001- | |
| 4A | 423-57-11650 | SPRING | 10001- | |
| 5 | 423-57-11330 | RECLINING ASS'Y | 10001- | |
| 6 | 423-57-11380 | BOLT | 10001- | |
| 7 | 423-57-11371 | COVER | 10001- | |
| 8 | 423-57-11160 | SCREW | 10001- | |
| 9 | 423-57-11420 | BUSHING | 10001- | |
| 10 | 423-57-11430 | SCREW | 10001- | |
| 11 | 423-57-11440 | WASHER | 10001- | |
| 12 | 423-57-11360 | LEVER | 10001- | |
| 13 | 423-57-11410 | SCREW | 10001- | |
| 14 | 423-57-11350 | SLIDE,L.H. | 10001- | |
| 15 | 417-57-11270 | SLIDE,R.H. | 10001- | |
| 16 | 423-57-11390 | BOLT | 10001- | |
| 17 | 419-961-1121 | BRACKET,L.H. | 10001- | |
| 18 | 419-961-1131 | BRACKET,R.H. | 10001- | |
| 19 | 01580-10806 | NUT | 10001- | |
| 20 | 01643-30823 | WASHER | 10001- | |
| 21 | 01010-51230 | BOLT | 10001- | |
| 22 | 01643-31232 | WASHER | 10001- | |
| 23 | 421-57-11141 | REST | 10001- | |
| 24 | 01010-50820 | BOLT | 10001- | |
| 25 | 01643-30823 | WASHER | 10001- |
