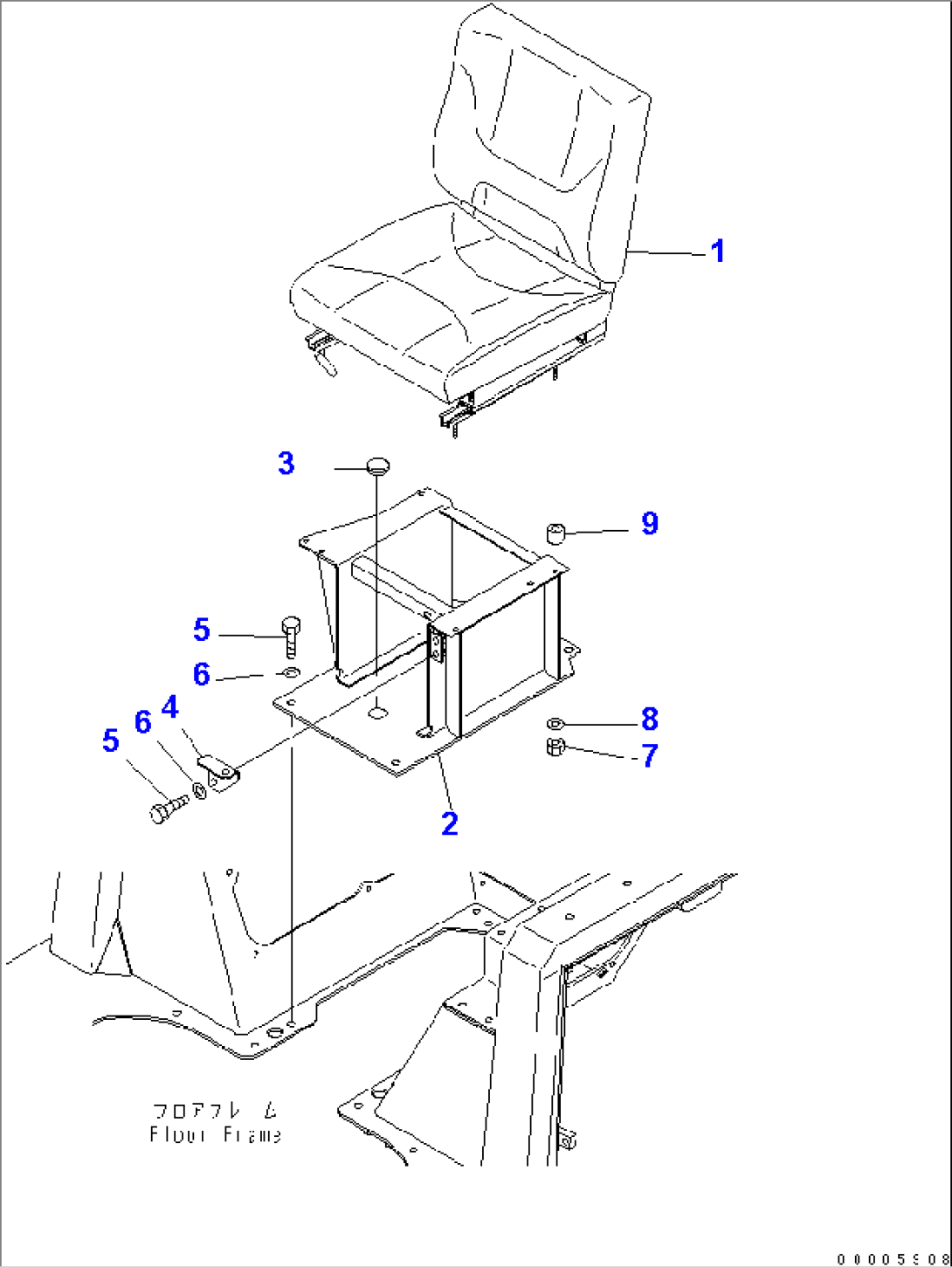

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-57-15000 | SEAT ASS'Y | 69001- | |
| 2 | 14X-57-31110 | BRACKET | 69001- | |
| 3 | 09415-02512 | CAP | 69001- | |
| 4 | 14X-57-11380 | PLATE | 69001- | |
| 5 | 01010-81230 | BOLT | 69001- | |
| 6 | 01643-31232 | WASHER | 69001- | |
| 7 | 01580-10806 | NUT | 69001- | |
| 8 | 01643-30823 | WASHER | 69001- | |
| 9 | 201-03-29160 | SPACER | 69001- |
