| Item | Part No. | Part Name | Qty | Serial No. |

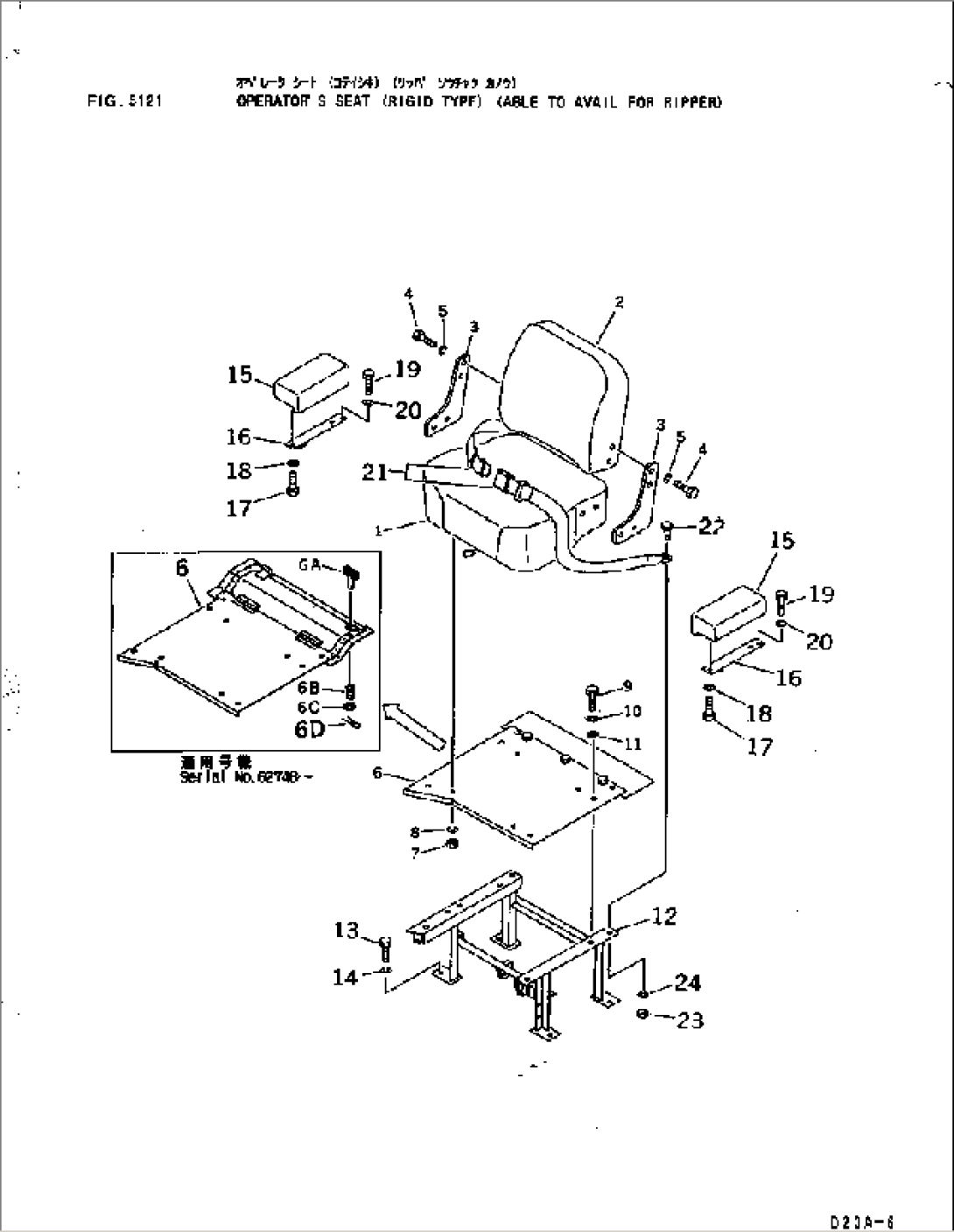

| 103-57-00110 | SEAT ASS'Y | 60001- | ||
| 1 | 103-57-31310 | CUSHION,SEAT | 60001- | |
| 2 | 103-57-31320 | CUSHION,BACK | 60001- | |
| 3 | 09403-00090 | PLATE | 60001- | |
| 4 | 01010-51020 | BOLT | 60001- | |
| 5 | 01602-21030 | WASHER,SPRING | 60001- | |
| 6 | 103-57-31113 | PLATE | 65861- | |
| 6 | 103-57-31112 | PLATE | 62748-65860 | |
| 6 | 113-54-24190 | HINGE (WELDED) | 62748- | |
| 6 | 103-57-31111 | PLATE | 61151-62747 | |
| 6 | \0\103-57-39121 | PLATE | 60001-61150 | |
| 6A | 09459-11033 | LOCK | 62748- | |
| 6B | 09459-01614 | SPRING | 62748- | |
| 6C | 01642-01016 | WASHER | 62748- | |
| 6D | 04050-13015 | PIN,COTTER | 62748- | |
| 7 | 01580-11210 | NUT | 60001- | |
| 8 | 01602-21236 | WASHER,SPRING | 60001- | |
| 9 | 01010-51025 | BOLT | 60001- | |
| 10 | 01602-21030 | WASHER,SPRING | 60001- | |
| 11 | 01643-31032 | WASHER | 60001- | |
| 12 | 103-57-31150 | FRAME | 60001- | |
| 13 | 01010-51435 | BOLT | 60001- | |
| 14 | 01602-21442 | WASHER,SPRING | 60001- | |
| 15 | 09402-00000 | REST,ARM | 60001- | |
| 16 | 103-57-31131 | PLATE | 65861- | |
| 16 | 103-57-31130 | PLATE | 60001-65860 | |
| 17 | 01010-50825 | BOLT | 60001- | |
| 18 | 01602-20825 | WASHER,SPRING | 60001- | |
| 19 | 01010-51020 | BOLT | 60001- | |
| 20 | 01602-21030 | WASHER,SPRING | 60001- | |
| 21 | 09409-10001 | BELT, LAP | 60001- | |
| 22 | 09409-00001 | BOLT | 60001- | |
| 23 | 09409-00003 | NUT | 60001- | |
| 24 | 09409-00002 | WASHER,SPRING | 60001- |
