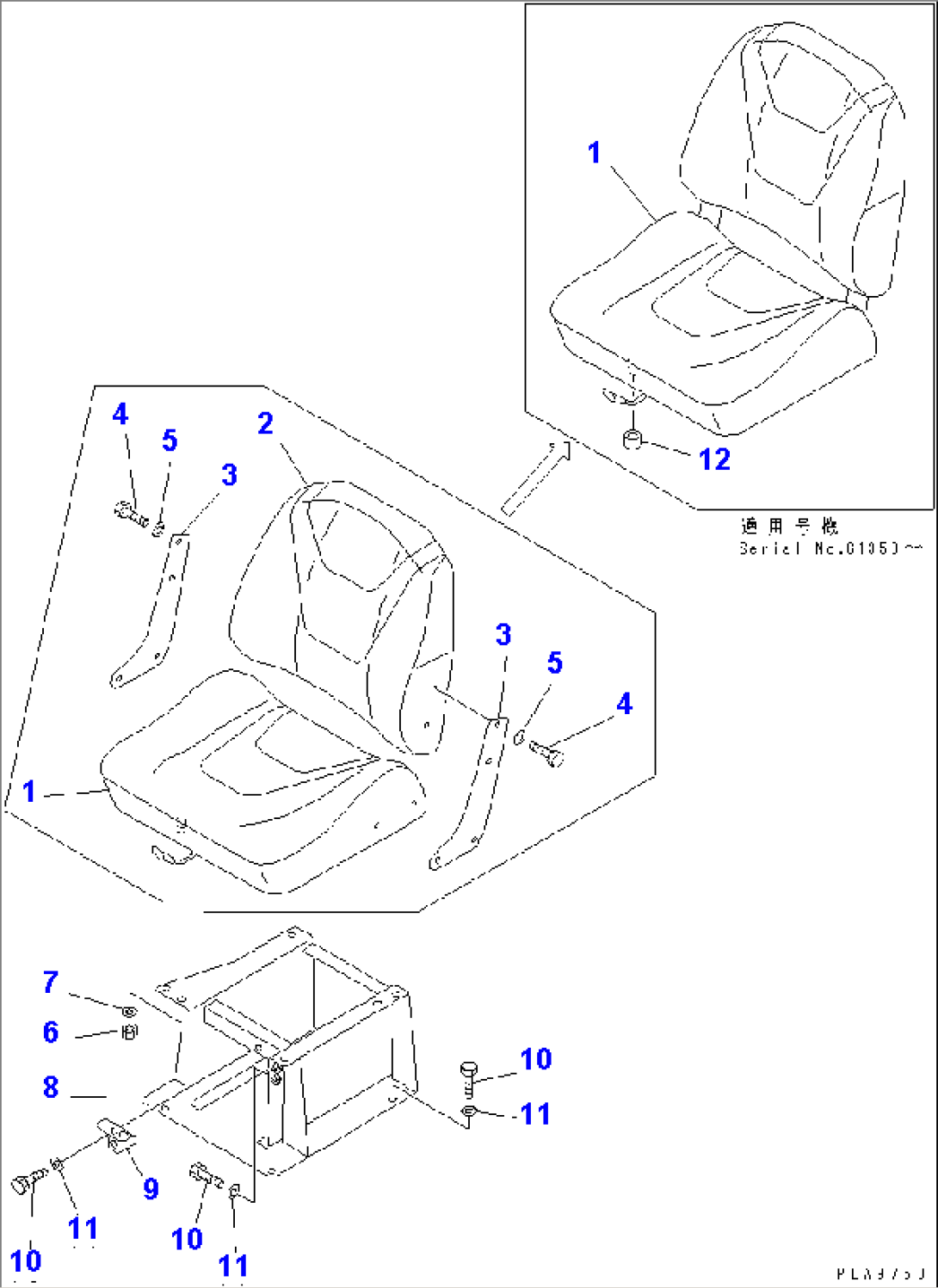

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-57-15000 | SEAT ASS'Y | 61359- | |
| 1 | 114-57-41260 | CUSHION,SEAT | 60884-61358 | |
| 2 | 114-57-41271 | CUSHION | 61117-61358 | |
| 2 | \0\114-57-41270 | CUSHION | 60884-61116 | |
| 3 | 114-57-41280 | PLATE | 60884-61358 | |
| 4 | 01010-50825 | BOLT | 60884-61358 | |
| 5 | 01643-30823 | WASHER | 60884-61358 | |
| 6 | 01580-10806 | NUT | 60884- | |
| 7 | 01643-30823 | WASHER | 60884- | |
| 8 | 14X-57-11114 | BRACKET | 61359- | |
| 8 | 14X-57-11113 | BRACKET | 60884-61358 | |
| 9 | 14X-57-11380 | PLATE | 60884- | |
| 10 | 01010-81230 | BOLT | 61359- | |
| 10 | 01010-51230 | BOLT | 60884-61358 | |
| 11 | 01643-31232 | WASHER | 60884- | |
| 12 | 201-03-29160 | SPACER | 61359- |
