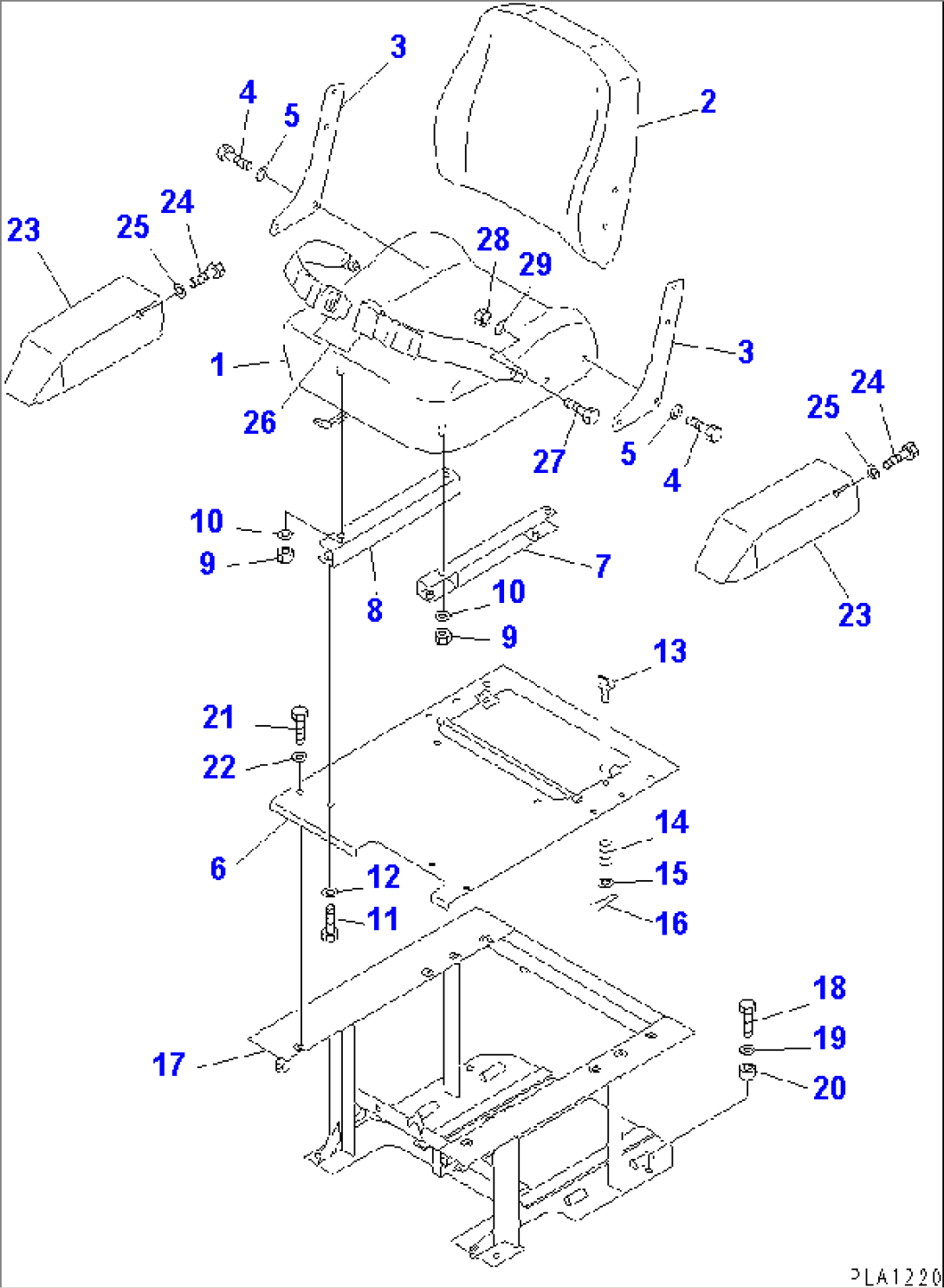

| Item | Part No. | Part Name | Qty | Serial No. |
| 120-57-31204 | SEAT ASS'Y | 3542- | ||
| \0\120-57-31203 | SEAT ASS'Y | 3153-3541 | ||
| 114-57-41251 | SEAT ASS'Y | 3542- | ||
| \0\114-57-41250 | SEAT ASS'Y | 3153-3541 | ||
| 1 | 114-57-41260 | CUSHION | 3153- | |
| 2 | 114-57-41271 | CUSHION,BACK | 3542- | |
| 2 | \0\114-57-41270 | CUSHION,BACK | 3153-3541 | |
| 3 | 114-57-41280 | PLATE | 3153- | |
| 4 | 01010-80825 | BOLT | 3153- | |
| 5 | 01643-30823 | WASHER | 3153- | |
| 6 | 114-57-41171 | BRACKET,L.H. | 3153- | |
| 7 | 114-57-41181 | BRACKET,R.H. | 3153- | |
| 8 | 01580-11210 | NUT | 3153- | |
| 9 | 01643-31232 | WASHER | 3153- | |
| 10 | 113-57-41123 | PLATE | 3661- | |
| 10 | 113-57-41122 | PLATE | 3001-3660 | |
| 10 | 113-57-49233 | PLATE,(FOR TOWING WINCH) | 3661- | |
| 10 | 113-57-49232 | PLATE,(FOR TOWING WINCH) | 3001-3660 | |
| 11 | 01010-81225 | BOLT | 3153- | |
| 12 | 01643-31232 | WASHER | 3001- | |
| 13 | 09459-11033 | LOCK | 3001- | |
| 14 | 09459-01614 | SPRING | 3001- | |
| 15 | 01642-01016 | WASHER | 3001- | |
| 16 | 04050-13015 | PIN,COTTER | 3001- | |
| 17 | 114-57-48112 | FRAME | 3661- | |
| 17 | 114-57-48111 | FRAME | 3001-3660 | |
| 17 | 114-57-49133 | FRAME,(FOR REAR ATTACHMENT) | 3661- | |
| 17 | 114-57-49132 | FRAME,(FOR REAR ATTACHMENT) | 3001-3660 | |
| 18 | 01010-81465 | BOLT | 3661- | |
| 18 | 01010-81460 | BOLT | 3001-3660 | |
| 19 | 01643-31445 | WASHER | 3001- | |
| 20 | 198-21-12240 | BOSS | 3001- | |
| 21 | 01010-81025 | BOLT | 3001- | |
| 22 | 01643-31032 | WASHER | 3001- | |
| 23 | 114-57-41140 | REST,ARM | 3001- | |
| 24 | 01010-81020 | BOLT | 3001- | |
| 25 | 01643-31032 | WASHER | 3001- | |
| 26 | 09409-10001 | BELT, LAP | 3001- | |
| 27 | \6\ | BOLT | 3001- | |
| 28 | \6\ | NUT | 3001- | |
| 29 | \6\ | WASHER,SPRING | 3001- |
