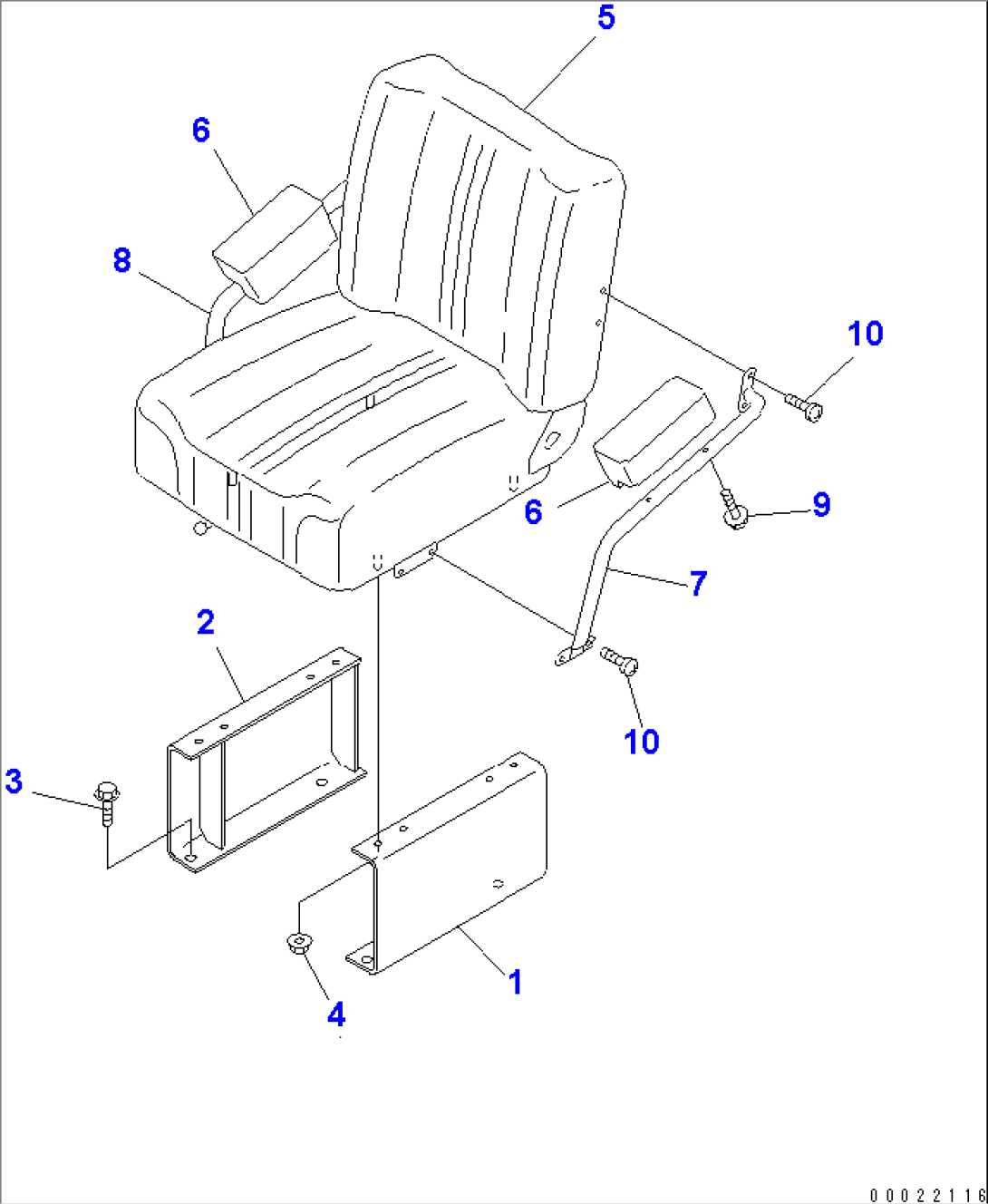

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 415-57-21130 | BRACKET,L.H. | 12001- | |
| 2 | 415-57-21140 | BRACKET,R.H. | 12001- | |
| 3 | 01435-01225 | BOLT | 12001- | |
| 4 | 01584-00806 | NUT | 12001- | |
| 5 | 415-57-11242 | SEAT ASS'Y | 12001- | |
| \6\ | SEAT | 12001- | ||
| 6 | 415-57-11260 | REST,ARM | 12001- | |
| 7 | 415-57-11270 | STAY,L.H. | 12001- | |
| 8 | 415-57-11280 | STAY,R.H. | 12001- | |
| 9 | 415-57-11290 | BOLT | 12001- | |
| 10 | 01023-20820 | SCREW | 12001- |
