| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (20Y-57-B1240) | Seat Ass'y | B10001- | |
| 2 | 01252-70816 | Bolt | B10001- | |
| 3 | 01643-30823 | Washer | B10001- | |
| 4 | 20Y-57-B1230 | Bracket | B10001- | |
| 5 | 01010-D0825 | Bolt | B10001- | |
| 6 | 01643-70823 | Washer | B10001- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc240lc 8 s/n b10001 up
- Operator's compartment and control system
- Operator's seat, rigid type, operator's seat mounting
Поиск по каталогу

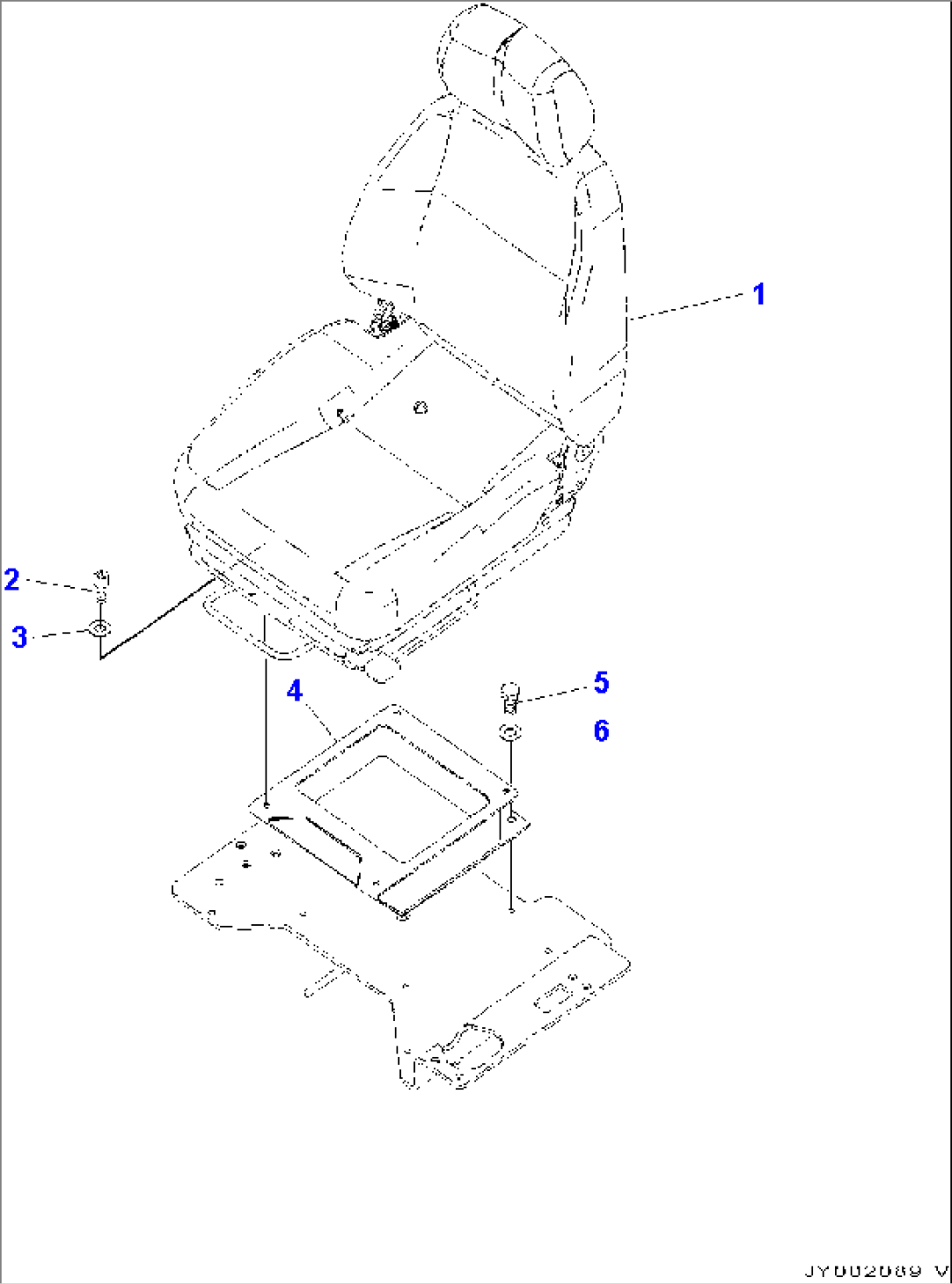

Operator's Seat, Rigid Type, Operator's Seat Mounting
