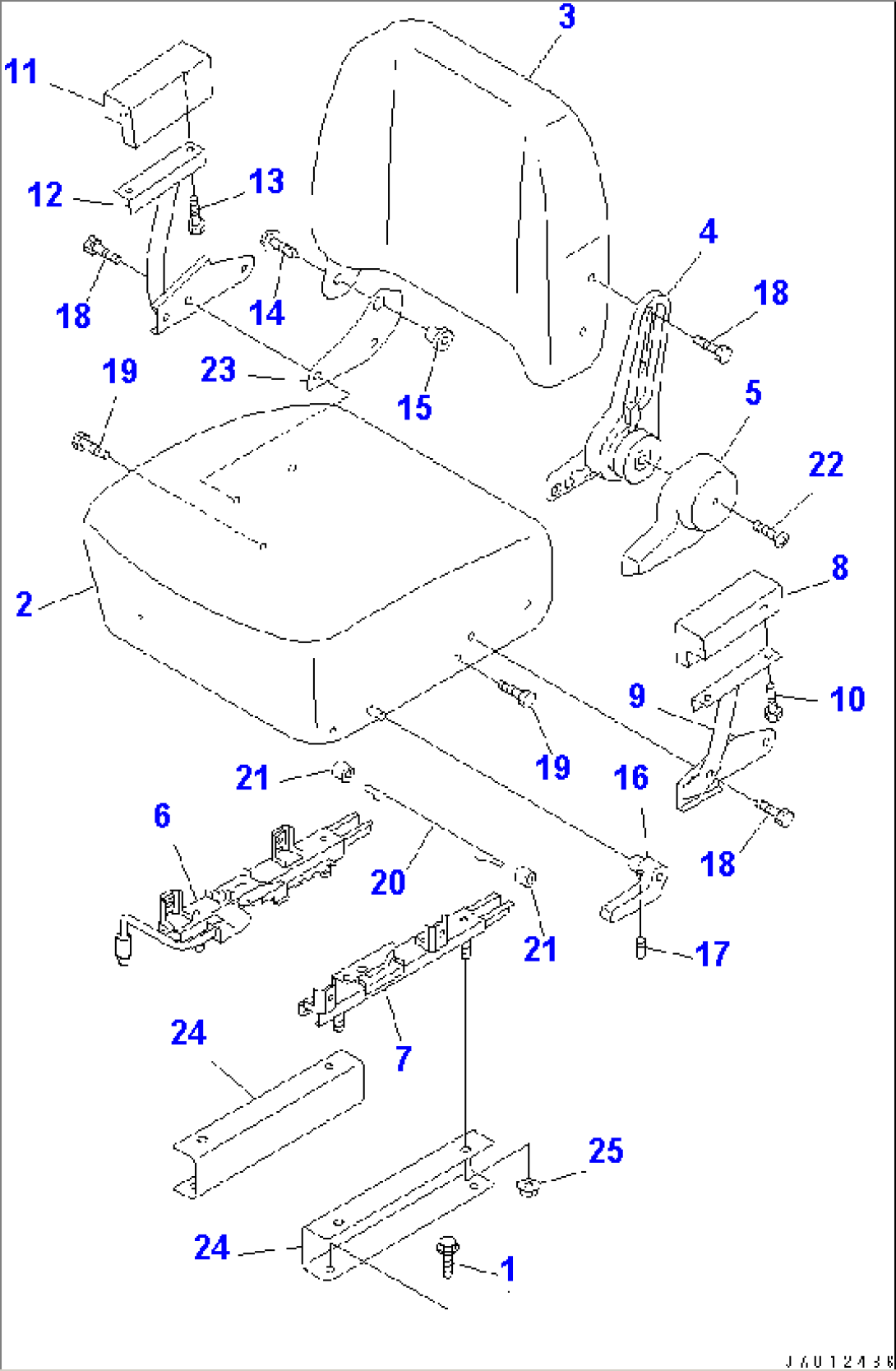

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01435-01220 | BOLT | 10001- | |
| 416-57-21010 | SEAT ASS'Y | 10001- | ||
| 416-57-21101 | SEAT ASS'Y | 10001- | ||
| 416-57-21121 | SEAT ASS'Y | 10001- | ||
| 2 | PNN99401 | CUSHION ASS'Y | 10001- | |
| 3 | PNN99402 | BACK ASS'Y | 10001- | |
| 4 | 423-57-11330 | RECLINING ASS'Y | 10001- | |
| 5 | 423-57-11371 | COVER | 10001- | |
| 6 | 423-57-11340 | SLIDE | 10001- | |
| 7 | 423-57-11350 | SLIDE | 10001- | |
| 416-57-21130 | REST ASS'Y | 10001- | ||
| 8 | 416-57-21150 | CUSHION | 10001- | |
| 9 | 416-57-21160 | ARM,L.H. | 10001- | |
| 10 | 416-57-21180 | BOLT | 10001- | |
| 416-57-21140 | REST ASS'Y | 10001- | ||
| 11 | 416-57-21150 | CUSHION | 10001- | |
| 12 | 416-57-21170 | ARM,R.H. | 10001- | |
| 13 | 416-57-21180 | BOLT | 10001- | |
| 14 | PNN203302 | SCREW | 10001- | |
| 15 | 423-57-11420 | BUSHING | 10001- | |
| 16 | 423-57-11360 | LEVER | 10001- | |
| 17 | 423-57-11410 | SCREW | 10001- | |
| 18 | 425-S33-2610 | BOLT | 10001- | |
| 19 | 423-57-11390 | BOLT | 10001- | |
| 20 | 423-57-11540 | WIRE | 10001- | |
| 21 | PNN93800 | CLIP | 10001- | |
| 22 | 423-57-11160 | SCREW | 10001- | |
| 23 | 423-57-11450 | BRACKET | 10001- | |
| 24 | 416-57-21111 | BRACKET | 10001- | |
| 25 | 01584-00806 | NUT | 10001- |
