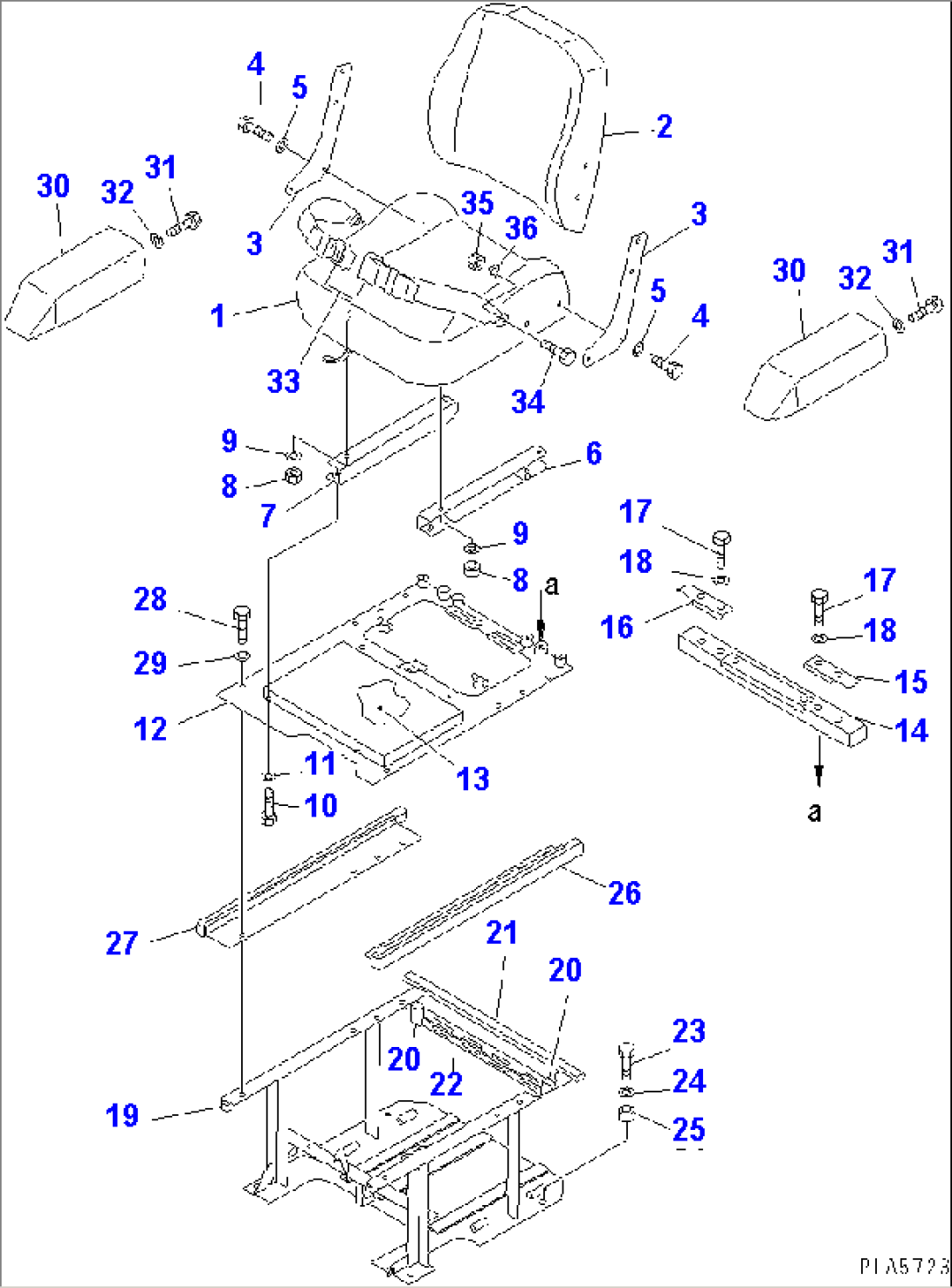

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 114-57-41260 | CUSHION | 45001- | |
| 2 | 114-57-41271 | CUSHION,BACK | 46895- | |
| \0\114-57-41270 | CUSHION,BACK | 45001-46894 | ||
| 3 | 114-57-41280 | PLATE | 45001- | |
| 4 | 01010-80825 | BOLT | 45001- | |
| 5 | 01643-30823 | WASHER | 45001- | |
| 6 | 114-57-41171 | BRACKET,L.H. | 45001- | |
| 7 | 114-57-41181 | BRACKET,R.H. | 45001- | |
| 8 | 01580-11210 | NUT | 45001- | |
| 9 | 01643-31232 | WASHER | 45001- | |
| 10 | 01010-81225 | BOLT | 45001- | |
| 11 | 01643-31232 | WASHER | 45001- | |
| 12 | 114-57-41223 | PLATE | 47617- | |
| 114-57-41221 | PLATE | 45001-47616 | ||
| 13 | 113-C62-2551 | SHEET | 45001- | |
| 14 | 114-54-44860 | COVER | 45001- | |
| 15 | 114-54-44870 | BRACKET,L.H. | 45001- | |
| 16 | 114-54-44880 | BRACKET,R.H. | 45001- | |
| 17 | 01010-81020 | BOLT | 45001- | |
| 18 | 01643-31032 | WASHER | 45001- | |
| 19 | 114-57-49142 | FRAME | 47617- | |
| 114-57-49141 | FRAME | 45001-47616 | ||
| 20 | 114-X11-2460 | SEAL | 45001- | |
| 21 | 114-X11-2450 | SEAL | 45001- | |
| 22 | 144-Y11-3730 | SEAL | 45001- | |
| 23 | 01010-81465 | BOLT | 47617- | |
| 01010-81460 | BOLT | 45001-47616 | ||
| 24 | 01643-31445 | WASHER | 45001- | |
| 25 | 198-21-12240 | BOSS | 45001- | |
| 26 | 114-54-44820 | COVER,L.H. | 45825- | |
| 11G-57-41141 | COVER,L.H. | 45001-45824 | ||
| 27 | 114-54-44830 | COVER,R.H. | 45825- | |
| 11G-57-41131 | COVER,R.H. | 45001-45824 | ||
| 28 | 01010-81025 | BOLT | 45001- | |
| 29 | 01643-31032 | WASHER | 45001- | |
| 30 | 114-57-41140 | REST,ARM | 45001- | |
| 31 | 01010-81020 | BOLT | 45001- | |
| 32 | 01643-31032 | WASHER | 45001- | |
| 33 | 09409-10001 | BELT¤ LAP | 45001- | |
| 34 | \6\ | BOLT | 45001- | |
| 35 | \6\ | NUT | 45001- | |
| 36 | \6\ | WASHER,SPRING | 45001- |
