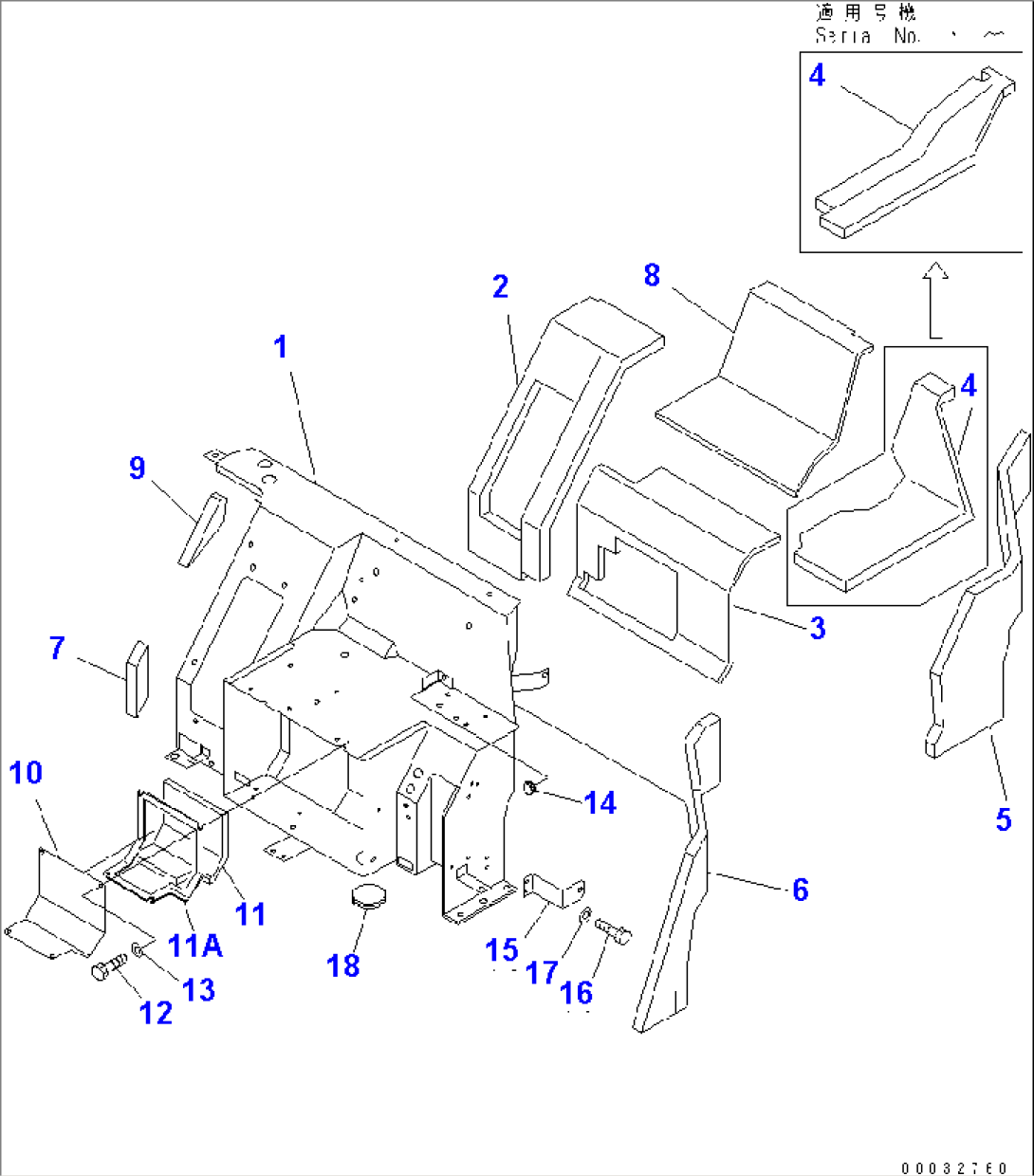

| Item | Part No. | Part Name | Qty | Serial No. |
| 22L-54-12405 | BRACKET ASS'Y | 10289-.. | ||
| 22L-54-12404 | BRACKET ASS'Y | .-10288 | ||
| 22L-54-12403 | BRACKET ASS'Y | 10001-. | ||
| 1 | 22L-54-12215 | BRACKET | 10289-.. | |
| 1 | 22L-54-12214 | BRACKET | .-10288 | |
| 1 | 22L-54-12213 | BRACKET | 10001-. | |
| 2 | 22L-54-12233 | SHEET | 10001-@ | |
| 3 | 22L-54-12243 | SHEET | 10001-.. | |
| 4 | 22L-54-12254 | SHEET | 10289-.. | |
| 4 | 22L-54-12253 | SHEET | .-10288 | |
| 4 | 22L-54-12252 | SHEET | 10001-. | |
| 5 | 22L-54-12262 | SHEET | 10001-.. | |
| 6 | 22L-54-12272 | SHEET | 10001-@ | |
| 7 | 22L-54-12440 | SHEET | 10001-@ | |
| 8 | 22L-54-12450 | SHEET | 10001-.. | |
| 9 | 22L-54-32450 | SHEET | 10001-.. | |
| 22L-54-12361 | COVER ASS'Y | 10289-@ | ||
| 22L-54-12360 | COVER ASS'Y | 10001-10288 | ||
| 10 | 22L-54-12321 | COVER | 10289-@ | |
| 10 | 22L-54-12320 | COVER | 10001-10288 | |
| 11 | 22L-54-12290 | SHEET | 10001-@ | |
| 11A | 22L-54-12470 | SHEET | 10001-@ | |
| 12 | 01010-80816 | BOLT | 10001-@ | |
| 13 | 01643-30823 | WASHER | 10001-@ | |
| 14 | 09415-01008 | CAP | 10001-@ | |
| 15 | 22L-54-12340 | BRACKET | 10001-@ | |
| 16 | 01010-80825 | BOLT | .-@ | |
| 16 | 01010-80816 | BOLT | 10001-. | |
| 17 | 01643-30823 | WASHER | 10001-@ | |
| 18 | 08037-05016 | GROMMET | 10001-@ |
