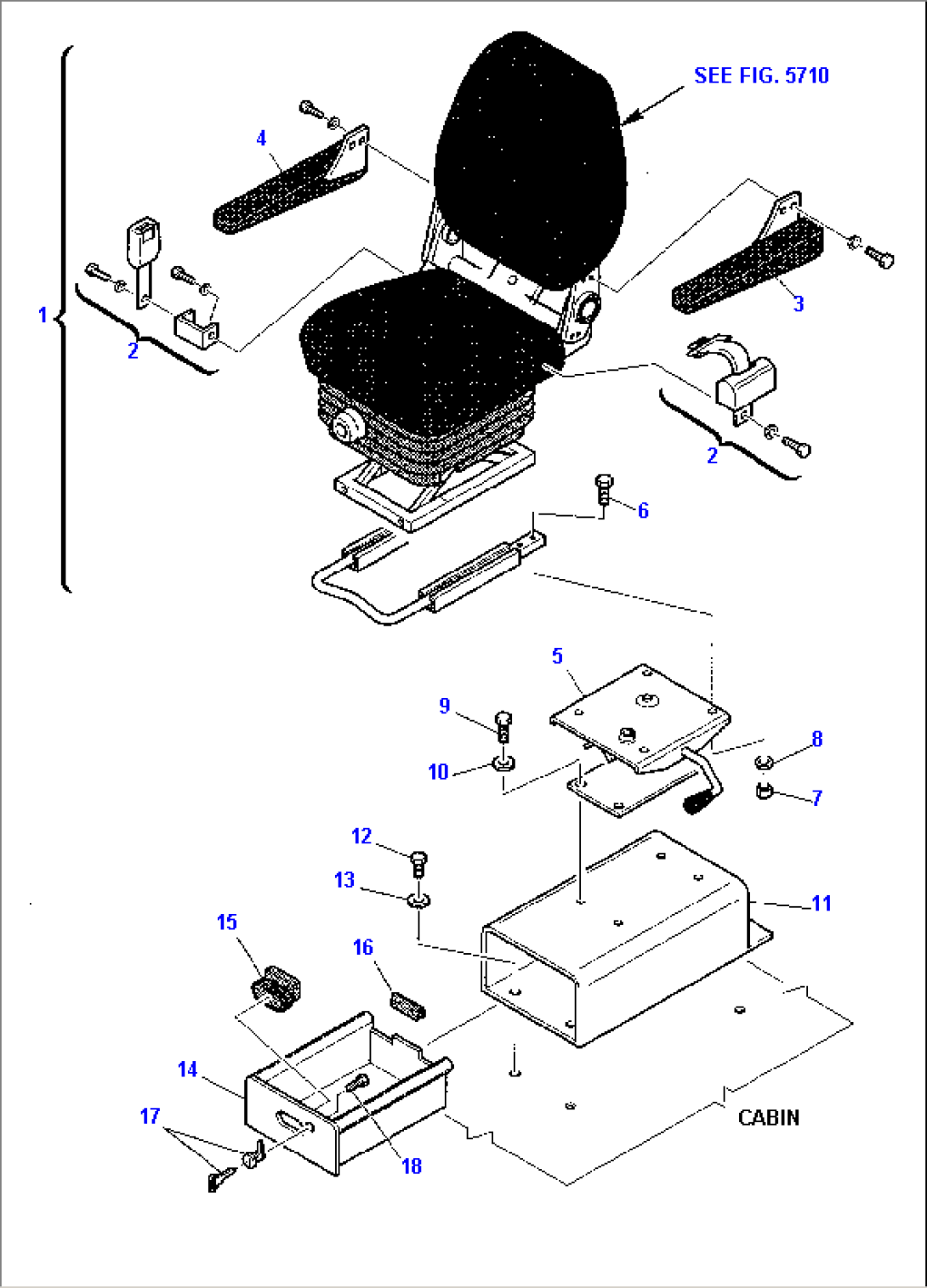

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 312605089 | OPERATOR'S SEAT, ASSY | 140F50092- | |
| 2 | 816214681 | SEAT BELT KIT | 140F50092- | |
| 3 | 816101145 | REST ARM LEFT | 140F50092- | |
| 4 | 816101144 | REST ARM RIGHT | 140F50092- | |
| 5 | 312605114 | OPERATOR'S SEAT STAND | 140F50092- | |
| 6 | 801220230 | BOLT | 140F50092- | |
| 7 | 801920104 | NUT | 140F50092- | |
| 8 | 802170001 | WASHER | 140F50092- | |
| 9 | 801015109 | BOLT | 140F50092- | |
| 10 | 802170002 | WASHER | 140F50092- | |
| 11 | 312605064 | BOX | 140F50092- | |
| 12 | 801015134 | BOLT | 140F50092- | |
| 13 | 802170003 | WASHER | 140F50092- | |
| 14 | 312605066 | BOX | 140F50092- | |
| 15 | 3F0540602 | BOOT | 140F50092- | |
| 16 | 855710058 | GASKET | 140F50092- | |
| 17 | 816214959 | BLOCK AND KEY | 140F50092- | |
| 18 | 801015084 | BOLT | 140F50092- | |
| SEE FIG. 5710 |
