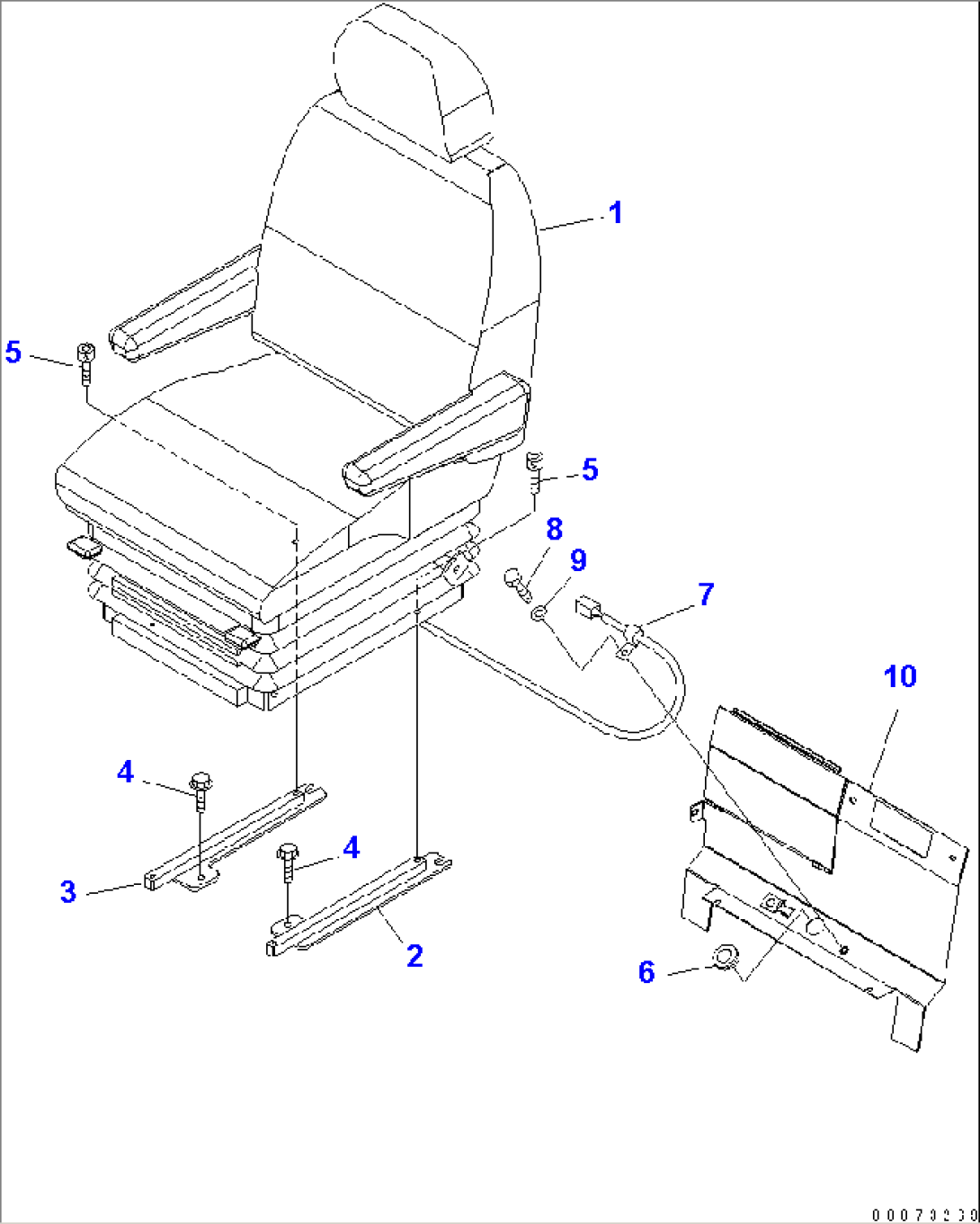

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-960-3110 | SEAT ASS'Y | A89001- | |
| 2 | 421-960-A111 | BRACKET | A89001- | |
| 3 | 421-960-A121 | BRACKET | A89001- | |
| 4 | 01435-01225 | BOLT | A89001- | |
| 5 | 01252-70820 | BOLT | A89001- | |
| 6 | 08037-02512 | GROMMET | A89001- | |
| 7 | 04434-51010 | CLIP | A89001- | |
| 8 | 01010-81020 | BOLT | A89001- | |
| 9 | 01643-31032 | WASHER | A89001- | |
| 10 | COVER,(SEE FIG. K0210-20A0) | A89001- |
