| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 458-425 | OPERATOR'S SEAT A. | 7038- | |
| 2 | 456-883 | BOLT | 7038- | |
| 3 | 458-505 | PLATE | 7038- | |
| 4 | 105-274 | BOLT | 7038- | |
| 5 | 455-132 | WASHER | 7038- | |
| 6 | 458-835 | STOPPER | 7038- | |
| 7 | 105-274 | BOLT | 7038- | |
| 8 | 455-132 | WASHER | 7038- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Mx502 s/n 7038 up
- Operator's compartment and control system
- Operator's seat (suspention type)
Поиск по каталогу

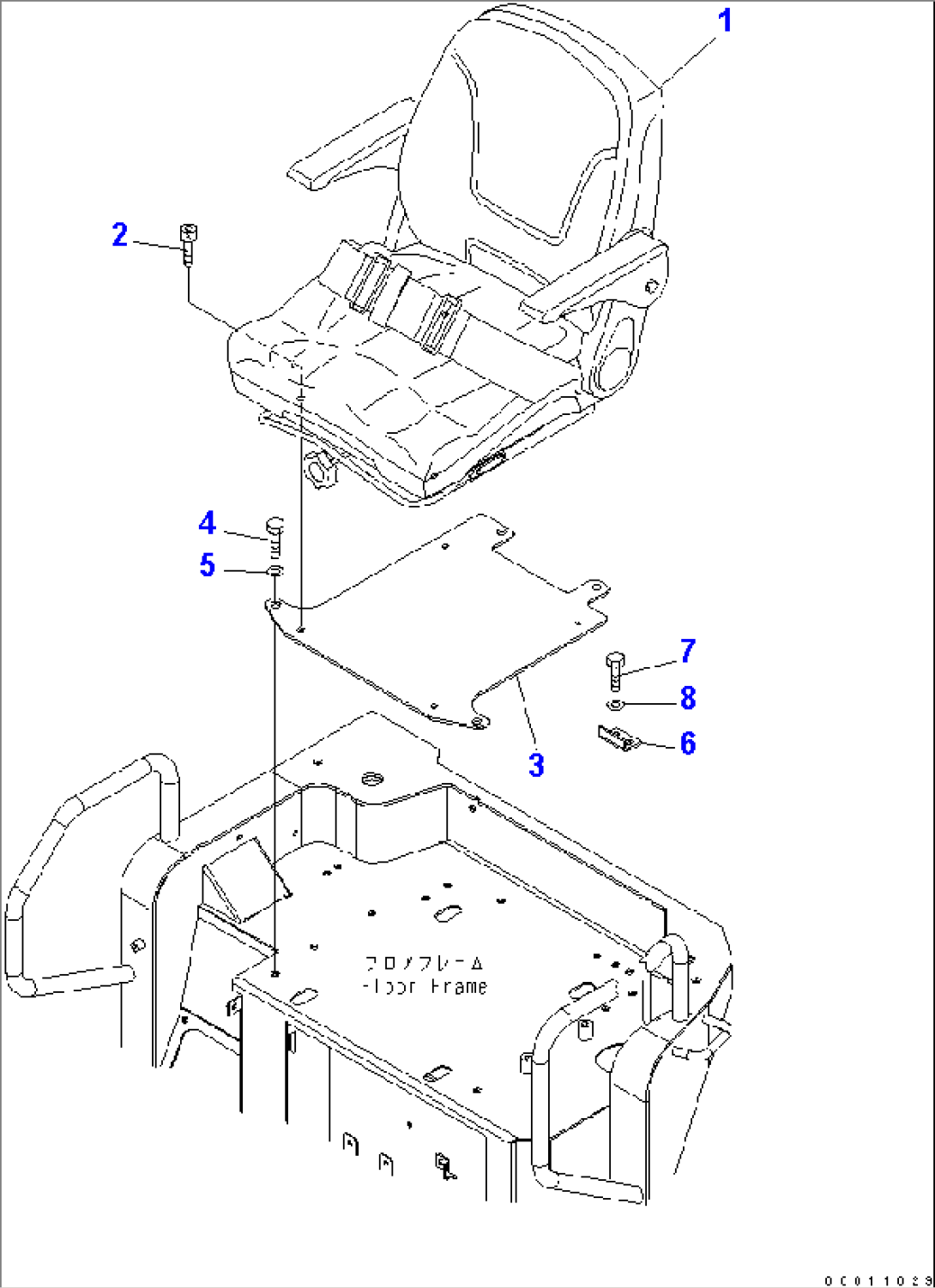

OPERATOR'S SEAT (SUSPENTION TYPE)
