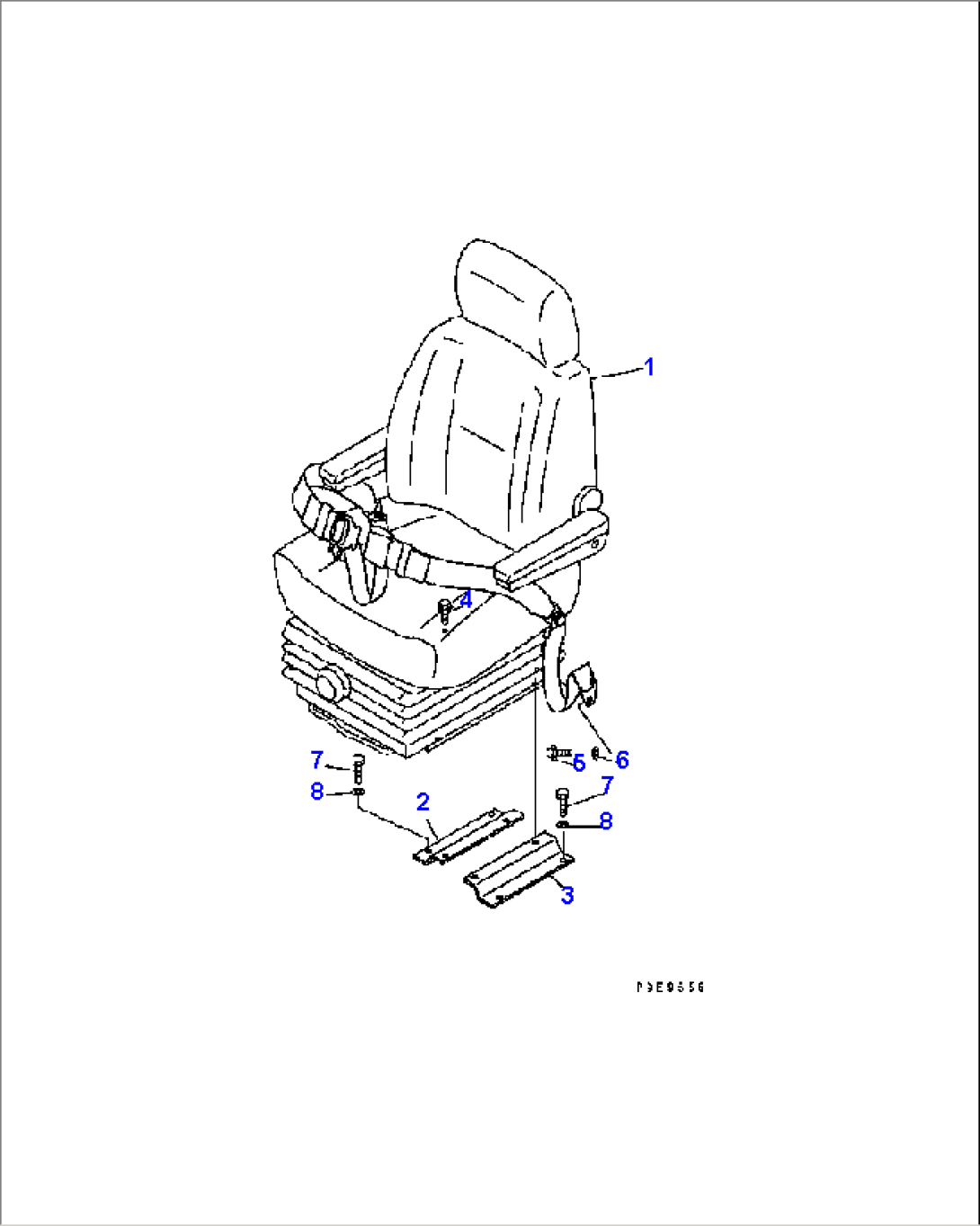

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-57-B1230 | SEAT ASS'Y | B10001- | |
| 2 | 418-57-B1310 | BRACKET {R.H.} | B10001- | |
| 3 | 418-57-B1320 | BRACKET {L.H.} | B10001- | |
| 4 | 01252-80825 | BOLT | B10648- | |
| \0\01435-40820 | BOLT | B10001-B10647 | ||
| 5 | 02030-70725 | BOLT | B10153- | |
| 6 | 01643-51232 | WASHER | B10153- | |
| 7 | 01010-81230 | BOLT | B10001- | |
| 8 | 01843-31232 | WASHER | B10001- |
