| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (20Y-57-28200) | OPERATOR'S SEAT A.,(SEE FIG. Y1570-01A2) | 102229- | |
| 2 | 01252-70816 | BOLT | 103945- | |
| 2 | 01252-70820 | BOLT | 102229-103944 | |
| 3 | 01643-31232 | WASHER | 108155- | |
| 3 | \0\104-890-5610 | COLLAR | 102229-108154 |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc200 6z s/n 80001 up (custom spec.)
- Operator's compartment and control system
- Operator's seat (tilt) (suspension type)(#102229 )
Поиск по каталогу

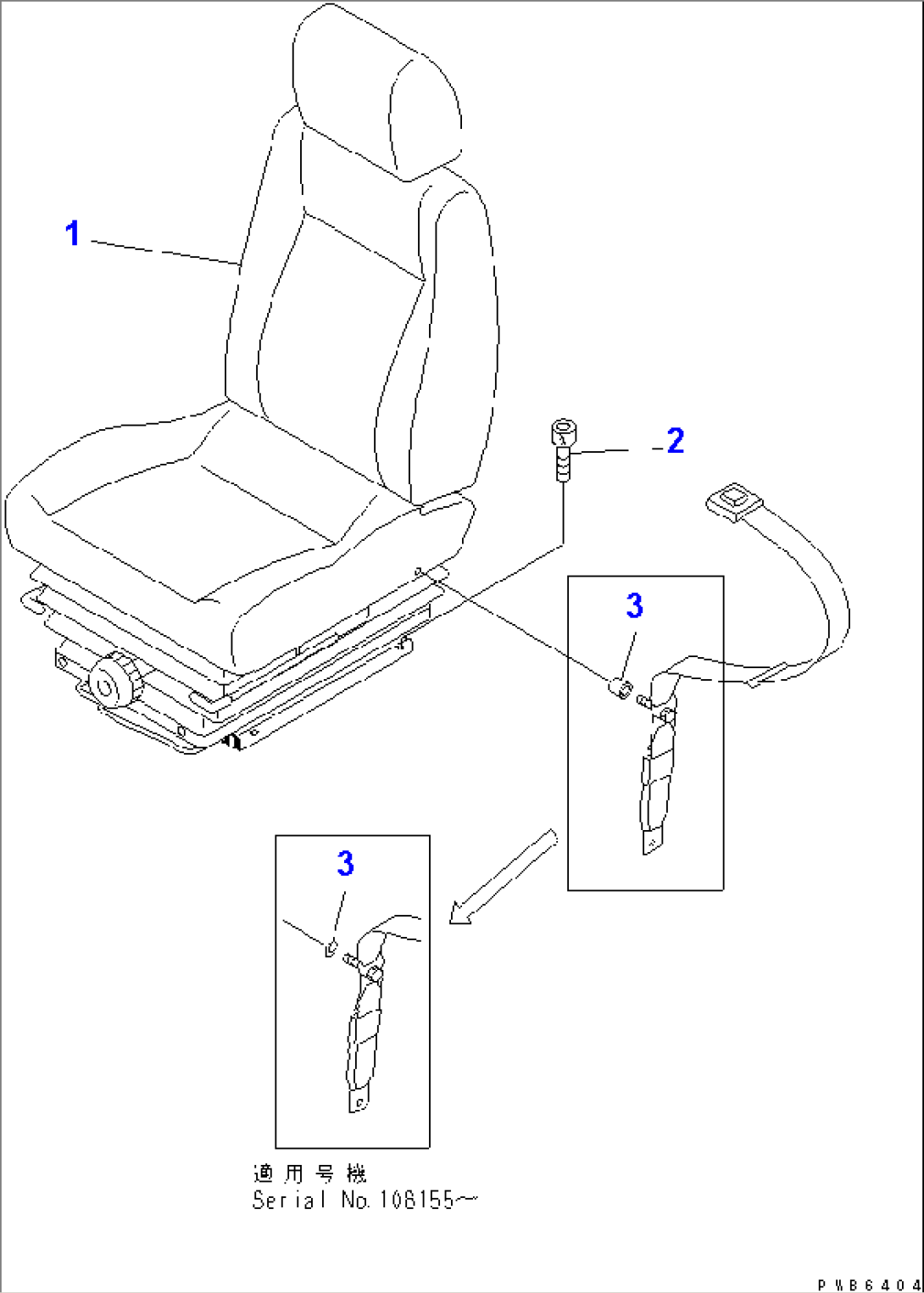

OPERATOR'S SEAT (TILT) (SUSPENSION TYPE)(#102229-)
