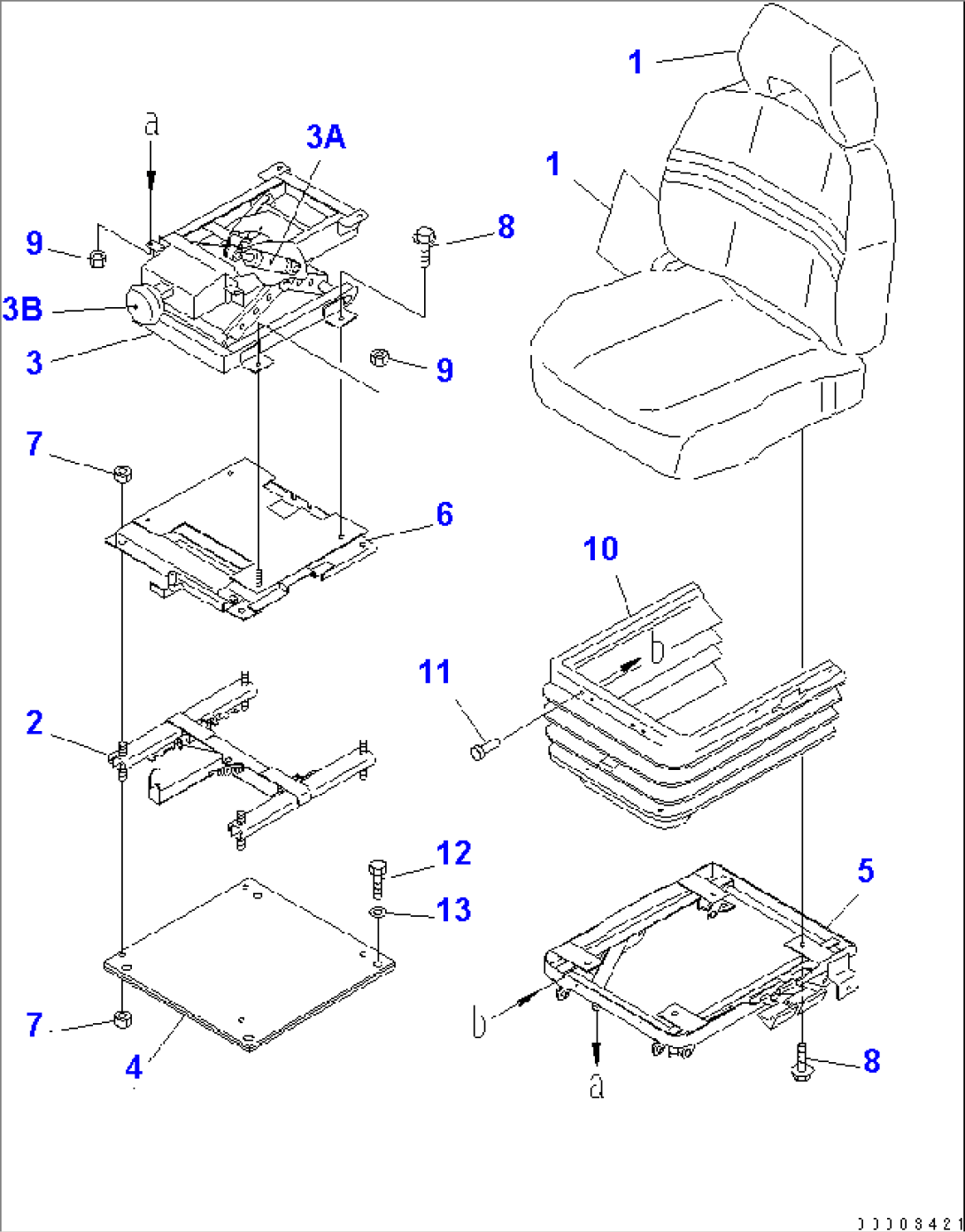

| Item | Part No. | Part Name | Qty | Serial No. |
| 14X-57-13000 | SEAT ASS'Y | 3001- | ||
| 1 | 14X-57-13110 | CUSHION | 3001- | |
| 2 | 14X-57-11150 | ADJUSTER | 3001- | |
| 3 | 14X-57-11160 | SUSPENSION ASS'Y | 3001- | |
| 3A | TG91693-40008 | DAMPER | 3001- | |
| 3B | TG91670-40008 | KNOB | 3001- | |
| 4 | 14X-57-11250 | PLATE ASS'Y | 3001- | |
| 5 | 14X-57-12120 | LIFTER | 3001- | |
| 6 | 14X-57-12130 | SWIVEL | 3001- | |
| 7 | 01584-01210 | NUT | 3001- | |
| 8 | 01435-00820 | BOLT | 3001- | |
| 9 | 01584-00806 | NUT | 3001- | |
| 10 | 14X-57-12140 | BOOT | 3001- | |
| 11 | 14X-57-12150 | RETAINER | 3001- | |
| 12 | 01010-51230 | BOLT | 3001- | |
| 13 | 01643-31232 | WASHER | 3001- |
