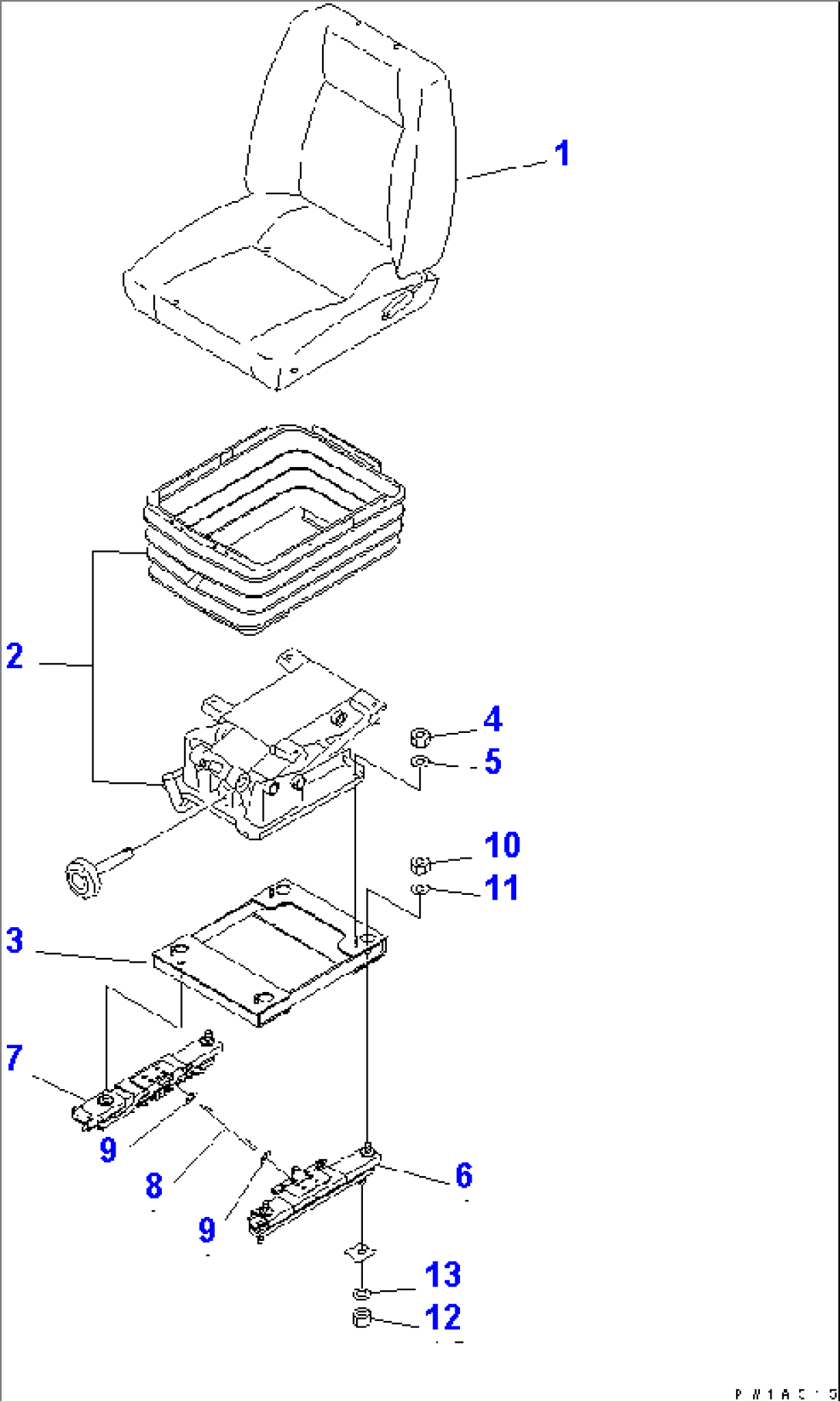

| Item | Part No. | Part Name | Qty | Serial No. |
| 17A-57-23200 | SEAT ASS'Y,FABRIC | 10043- | ||
| 1 | 17A-57-23210 | SEAT ASS'Y,FABRIC | 10043- | |
| 2 | 17A-57-23250 | SUSPENSION ASS'Y | 10043- | |
| 3 | 17A-57-23220 | BRACKET | 10043- | |
| 4 | 01580-00806 | NUT | 10043- | |
| 5 | 01643-50823 | WASHER | 10043- | |
| 6 | 17A-57-23230 | ADJUSTER,L.H. | 10043- | |
| 7 | 17A-57-23240 | ADJUSTER,R.H. | 10043- | |
| 8 | 17A-57-23270 | WIRE | 10043- | |
| 9 | 01640-20816 | WASHER | 10043- | |
| 10 | 01580-01210 | NUT | 10043- | |
| 11 | 01643-51232 | WASHER | 10043- | |
| 12 | 01582-11210 | NUT | 10043- | |
| 13 | 01643-31232 | WASHER | 10043- |
