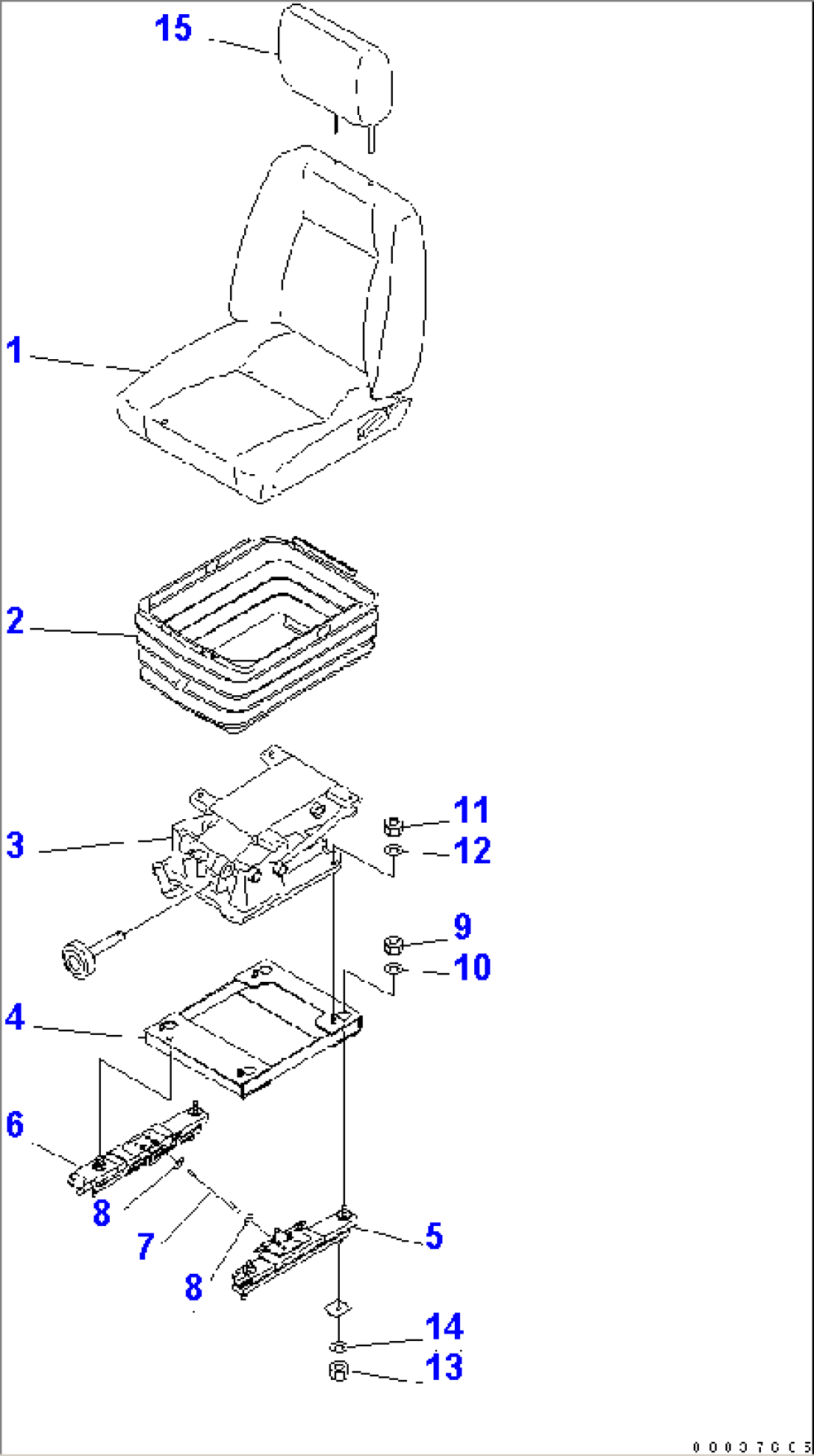

| Item | Part No. | Part Name | Qty | Serial No. |
| 17A-57-23301 | SEAT ASS'Y | 11001- | ||
| 17A-57-23310 | SEAT ASS'Y | 11001- | ||
| 1 | \6\ | SEAT ASS'Y | 11001- | |
| \6\ | SUSPENSION ASS'Y | 11001- | ||
| 2 | \6\ | COVER | 11001- | |
| 3 | \6\ | SUSPENSION ASS'Y | 11001- | |
| 17A-57-23531 | ADJUSTER ASS'Y | 11001- | ||
| 4 | 17A-57-23220 | BRACKET | 11001- | |
| 5 | 17A-57-23230 | ADJUSTER | 11001- | |
| 6 | 17A-57-23241 | ADJUSTER | 11001- | |
| 7 | 17A-57-23270 | WIRE | 11001- | |
| 8 | 01640-20816 | WASHER | 11001- | |
| 9 | 01582-11210 | NUT | 11001- | |
| 10 | 01643-51232 | WASHER | 11001- | |
| 11 | 01580-10806 | NUT | 11001- | |
| 12 | 01643-50823 | WASHER | 11001- | |
| 13 | 01582-11210 | NUT | 11001- | |
| 14 | 01643-31232 | WASHER | 11001- | |
| 15 | 134-57-61160 | HEAD REST | 11001- |
