| Item | Part No. | Part Name | Qty | Serial No. |
| 17A-57-22112 | SEAT ASS'Y,LEATHER | 85001- | ||
| 1 | 17A-57-22122 | SEAT ASS'Y,LEATHER | 85001- | |
| 2 | 17A-57-21132 | TURN TABLE ASS'Y | 85001- | |
| 3 | 01010-81030 | BOLT | 85001- | |
| 4 | 01643-31032 | WASHER | 85001- |
- Главная
- Каталог запчастей
- Бульдозеры
- D155a 6 s/n 85001 85076
- Operator's compartment and control system
- Operator's seat (turn and reclining type) (leather seat) (without cab)(#85001 )
Поиск по каталогу

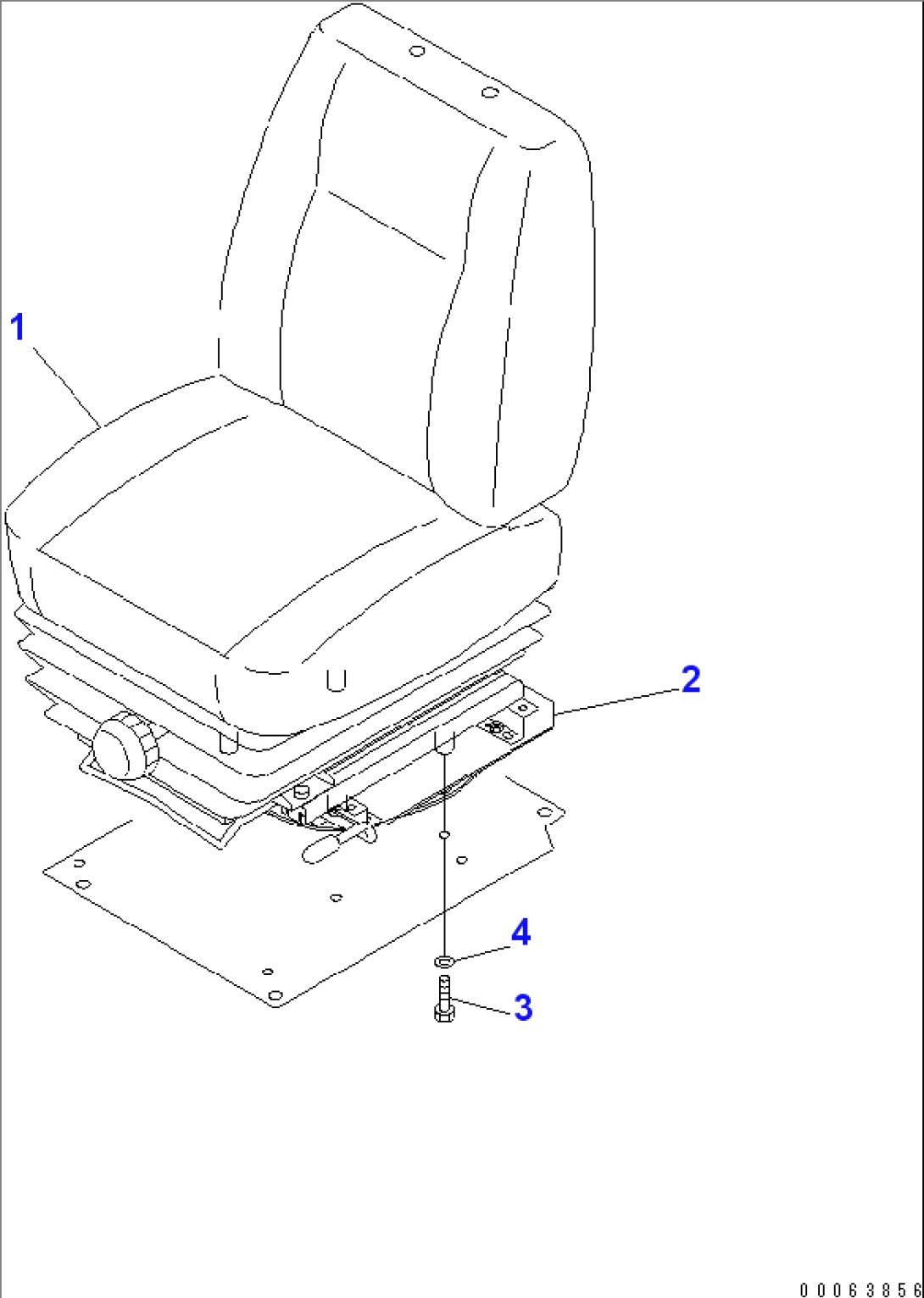

OPERATOR'S SEAT (TURN AND RECLINING TYPE) (LEATHER SEAT) (WITHOUT CAB)(#85001-)
