| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 134-57-61111 | COVER | 63403-65000 | |
| 2 | 134-57-61131 | SEAL | 63403-65000 | |
| 3 | 01010-81230 | BOLT | 63403-65000 | |
| 4 | 01643-31232 | WASHER | 63403-65000 |
- Главная
- Каталог запчастей
- Бульдозеры
- D65ex 12 s/n 60942 up (s6d125e 2)
- Operator's compartment and control system
- Operator's seat (turn and reclining type) (mount) (north america spec.)(#63403 65000)
Поиск по каталогу

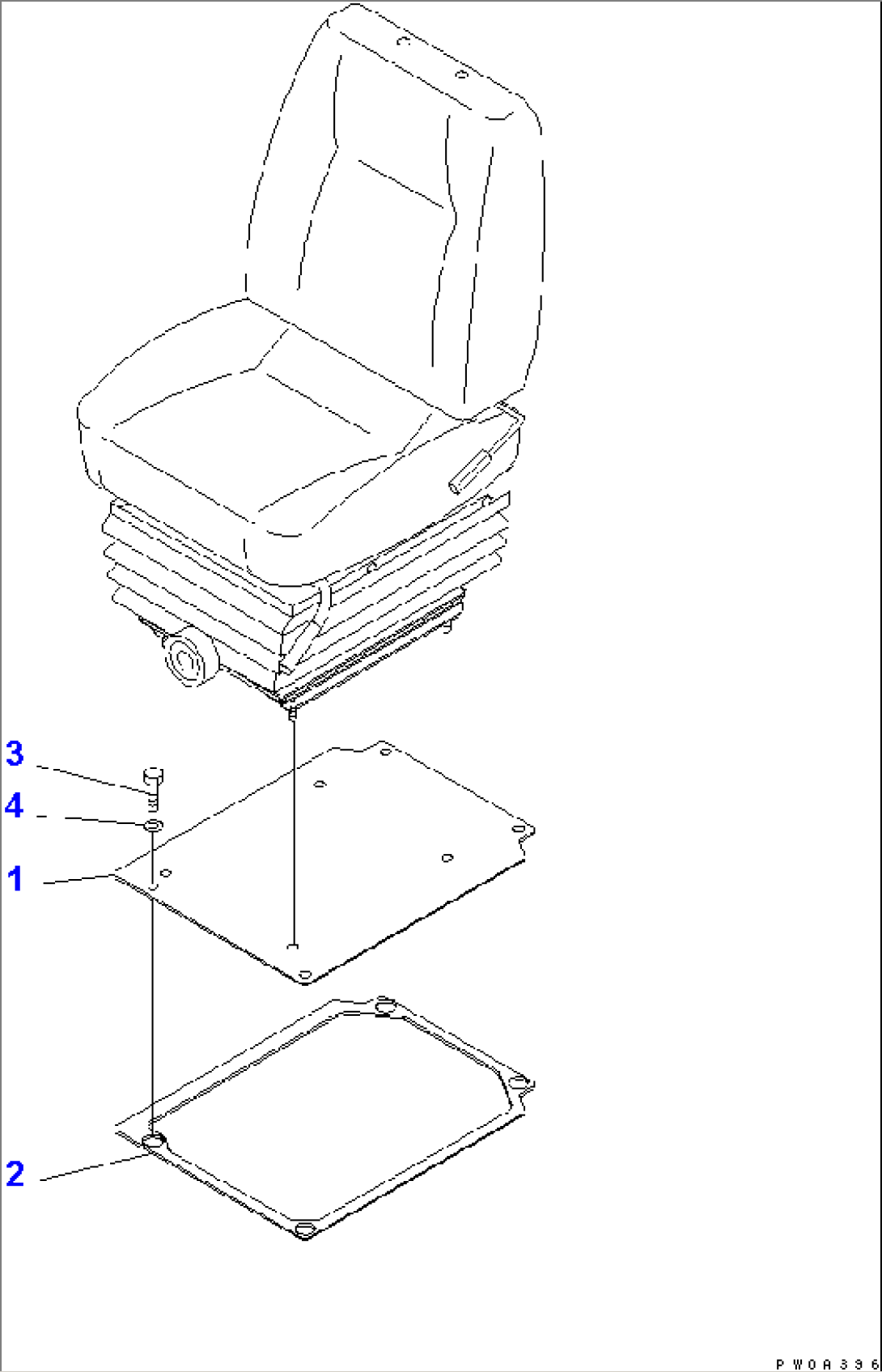

OPERATOR'S SEAT (TURN AND RECLINING TYPE) (MOUNT) (NORTH AMERICA SPEC.)(#63403-65000)
