| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 134-57-61111 | COVER | 50201- | |
| 2 | 134-57-61131 | SEAL | 50201- | |
| 3 | 01010-81230 | BOLT | 50201- | |
| 4 | 01643-31232 | WASHER | 50201- |
- Главная
- Каталог запчастей
- Бульдозеры
- D41e 6k s/n 50001 up (made in japan)
- Operator's compartment and control system
- Operator's seat (turn and reclining type) (mount)(#50201 )
Поиск по каталогу

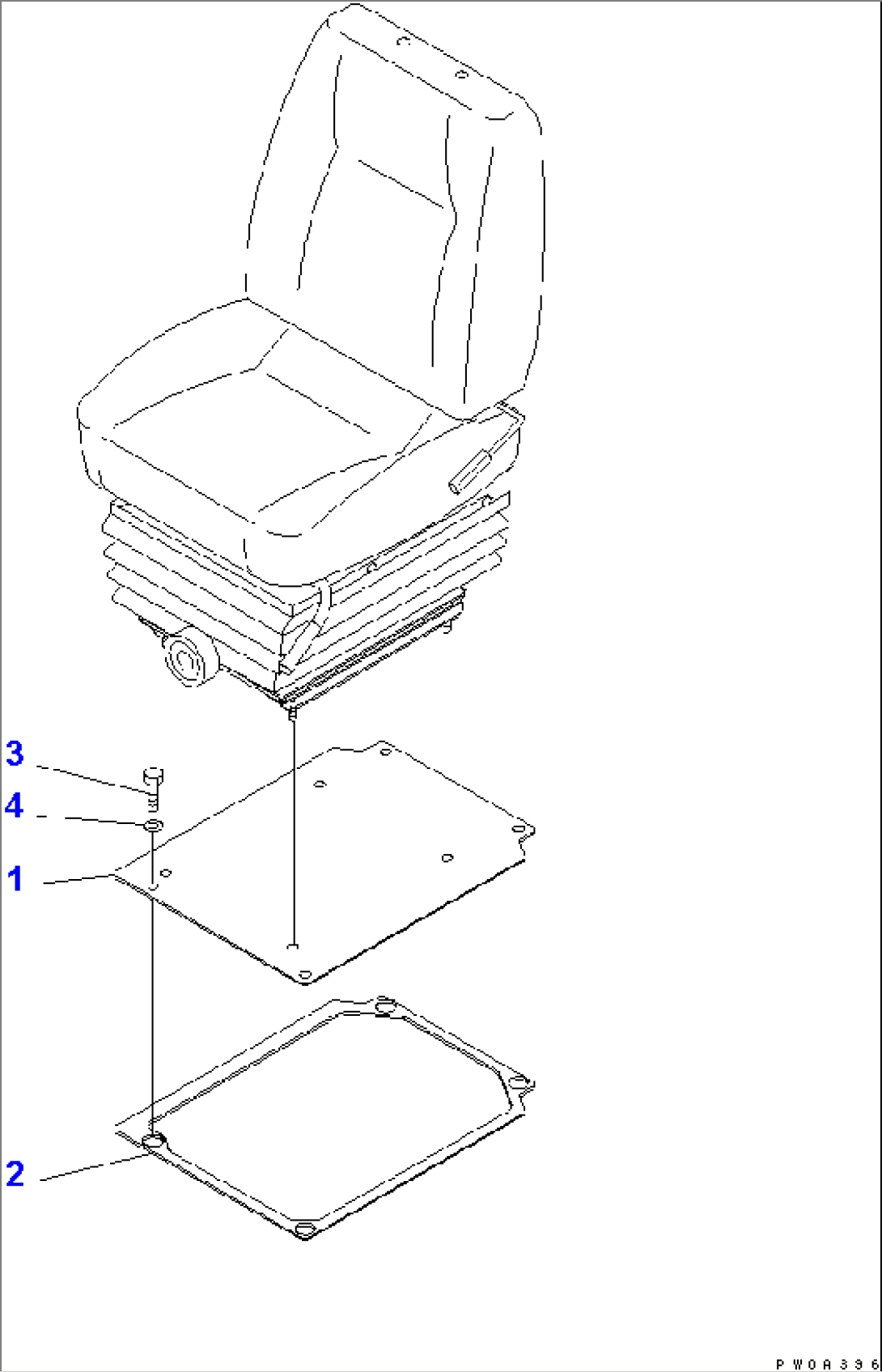

OPERATOR'S SEAT (TURN AND RECLINING TYPE) (MOUNT)(#50201-)
