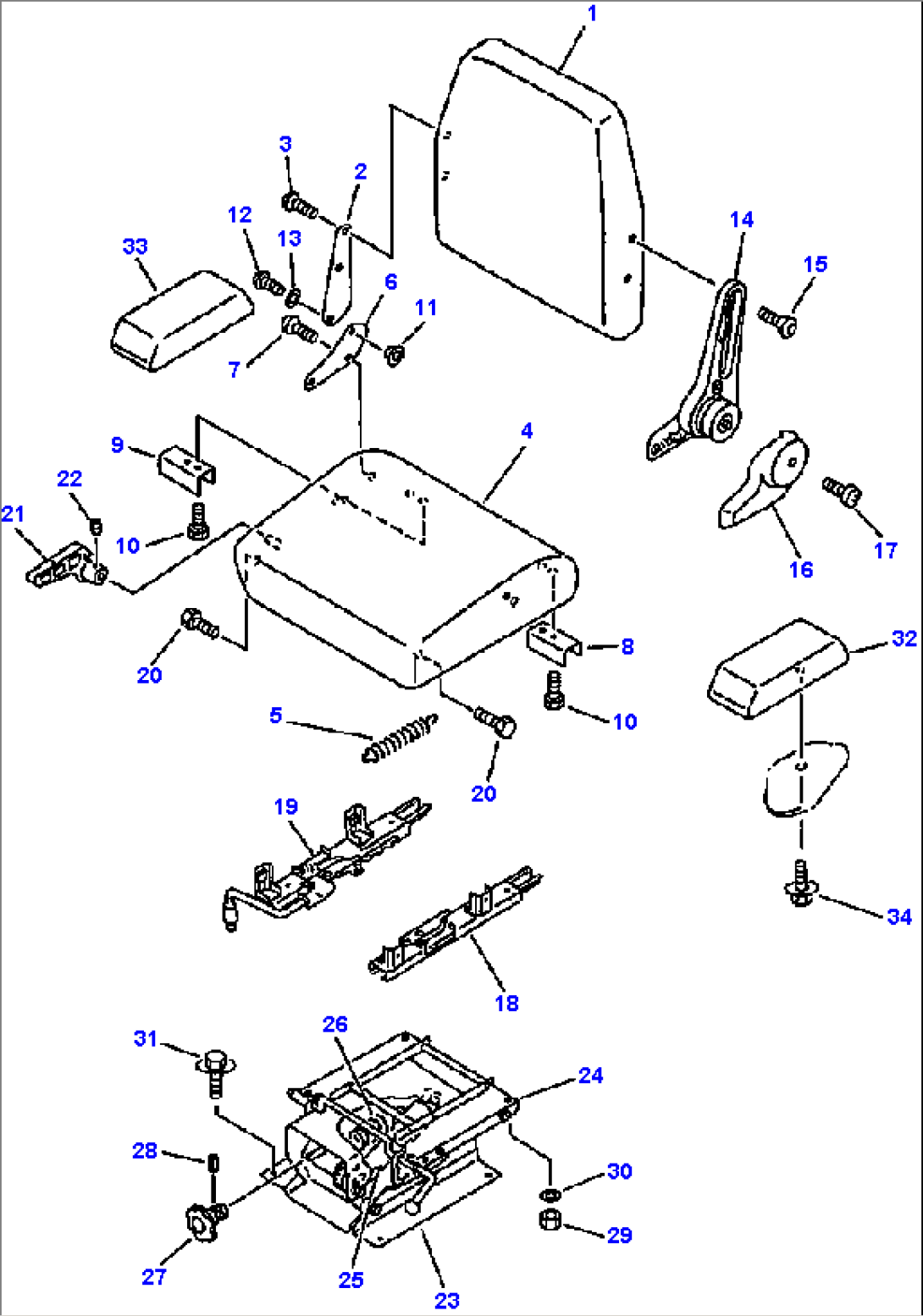

| Item | Part No. | Part Name | Qty | Serial No. |
| 423-57-11700 | OPERATOR'S SEAT ASSEMBLY | |||
| 423-57-11710 | SEAT ASSEMBLY | |||
| 1 | 423-57-11730 | CUSHION, BACK | ||
| 2 | 423-57-11490 | BRACKET | ||
| 3 | 423-57-11380 | BOLT | ||
| 4 | 423-57-11720 | CUSHION, SEAT | ||
| 5 | 423-57-11650 | SPRING | ||
| 6 | 423-57-11450 | BRACKET | ||
| 7 | 423-57-11380 | BOLT | ||
| 8 | 423-57-11470 | BRACKET, L.H | ||
| 9 | 423-57-11480 | BRACKET, R.H | ||
| 10 | 423-57-11460 | BOLT | ||
| 11 | 423-57-11420 | BUSHING | ||
| 12 | 423-57-11430 | SCREW | ||
| 13 | 423-57-11440 | WASHER | ||
| 14 | 423-57-11330 | RECLINING ASSEMBLY | ||
| 15 | 423-57-11380 | BOLT | ||
| 16 | 423-57-11371 | COVER | ||
| 17 | 423-57-11160 | SCREW | ||
| 18 | 423-57-11350 | SLIDE, L.H | ||
| 19 | 423-57-11340 | SLIDE, R.H | ||
| 20 | 423-57-11390 | BOLT | ||
| 21 | 423-57-11360 | LEVER | ||
| 22 | 423-57-11410 | SCREW | ||
| 23 | 423-57-11400 | SUSPENSION ASSEMBLY | ||
| 24 | 423-57-11530 | ADJUSTER, TILT | ||
| 25 | 423-57-11520 | ABSORBER | ||
| 26 | 423-57-11510 | SPRING | ||
| 27 | 423-57-11630 | KNOB | ||
| 28 | 423-57-11640 | PIN, SPRING | ||
| 29 | 423-57-11130 | NUT | ||
| 30 | 423-57-11150 | WASHER | ||
| 31 | 01435-01220 | BOLT | ||
| 32 | 421-57-11142 | REST, ARM, L.H | ||
| 33 | 421-57-11141 | REST, ARM, R.H | ||
| 34 | 01435-00820 | BOLT |
