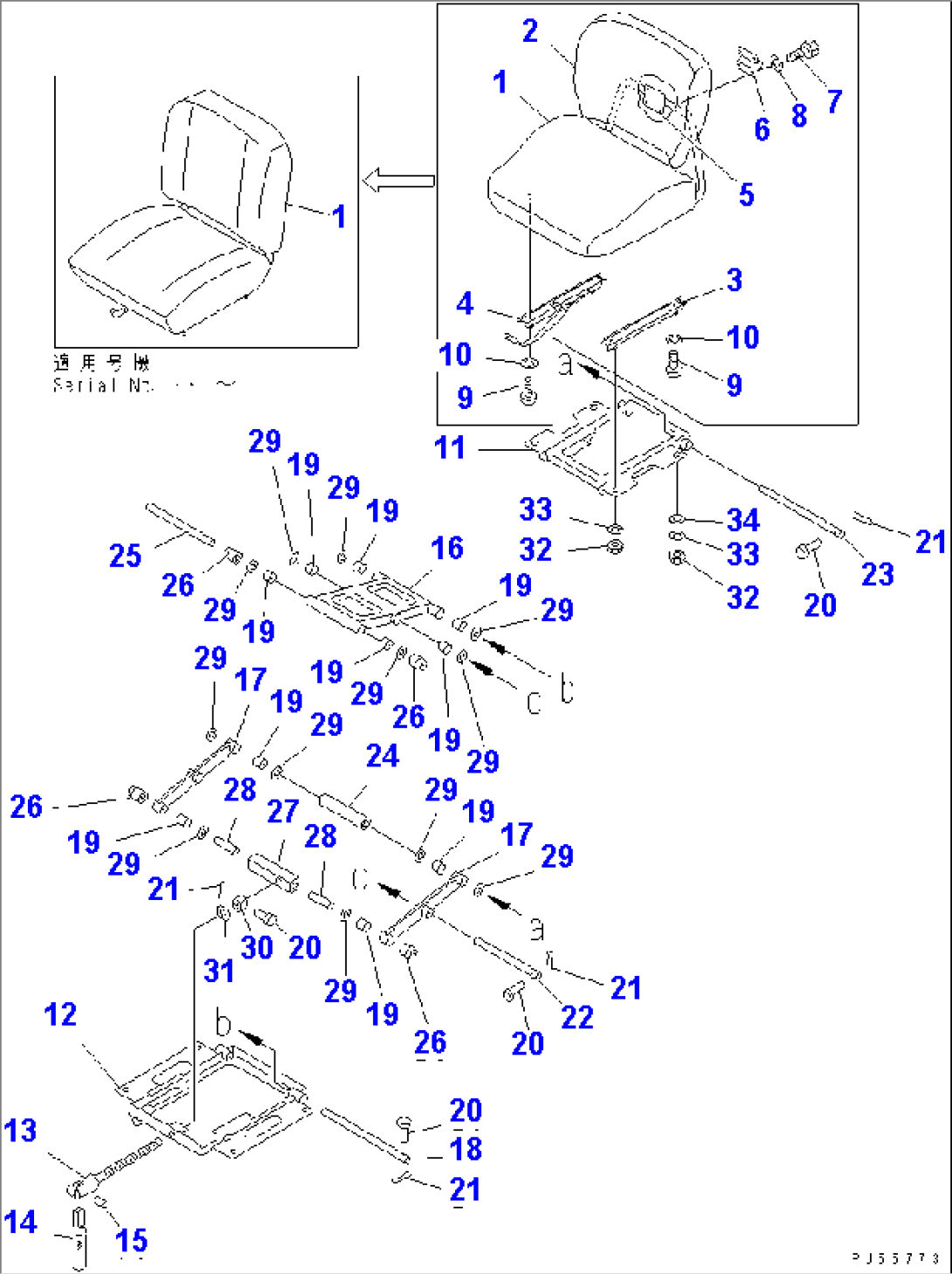

| Item | Part No. | Part Name | Qty | Serial No. |
| 234-57-41001 | SEAT ASS'Y | ..-23000 | ||
| \0\234-57-41000 | SEAT ASS'Y | .-.. | ||
| 363-57-31101 | SEAT ASS'Y | ..-23000 | ||
| 23B-57-21000 | OPERATOR'S SEAT A. | .-.. | ||
| 1 | 23B-57-21110 | SEAT ASS'Y | .-.. | |
| 2 | 23B-57-21120 | SEAT ASS'Y | .-.. | |
| 3 | 23B-57-21130 | SLIDE,L.H. | .-.. | |
| 4 | 23B-57-21140 | SLIDE,R.H. | .-.. | |
| 5 | 23B-57-21150 | PLATE | .-.. | |
| 6 | 23B-57-21160 | CLAMP | .-.. | |
| 7 | 01010-50614 | BOLT | .-.. | |
| 8 | 01602-20619 | WASHER,SPRING | .-.. | |
| 9 | 01220-40825 | SCREW | .-.. | |
| 10 | 01602-20825 | WASHER,SPRING | .-.. | |
| 232-57-56501 | STAND ASS'Y | ..-23000 | ||
| \0\232-57-56500 | STAND ASS'Y | 21001-.. | ||
| 11 | 232-57-56511 | BRACKET | ..-23000 | |
| 11 | \0\232-57-56510 | BRACKET | 21001-.. | |
| 12 | 232-57-56520 | BRACKET | 21001-23000 | |
| 13 | 232-57-56530 | BOLT | 21001-23000 | |
| 14 | 232-57-56540 | HANDLE | 21001-23000 | |
| 15 | 04022-08025 | PIN | 21001-23000 | |
| 16 | 22W-57-11420 | LINK | 21001-23000 | |
| 17 | 22W-57-11430 | LINK,L.H. | 21001-23000 | |
| 17 | 22W-57-11440 | LINK,R.H. | 21001-23000 | |
| 18 | 22W-57-11460 | PIN | 21001-23000 | |
| 19 | 22W-57-11530 | BUSHING | 21001-23000 | |
| 20 | 04205-10628 | PIN | 21001-23000 | |
| 21 | 04050-11610 | PIN,COTTER | 21001-23000 | |
| 22 | 22W-57-11470 | PIN | 21001-23000 | |
| 23 | 22W-57-11480 | PIN | 21001-23000 | |
| 24 | 22W-57-11540 | SPACER | 21001-23000 | |
| 25 | 22W-57-11550 | PIN | 21001-23000 | |
| 26 | 22W-57-11580 | ROLLER | 21001-23000 | |
| 27 | 22W-57-11560 | BAR | 21001-23000 | |
| 28 | 22W-57-11570 | PIN | 21001-23000 | |
| 29 | 22W-57-11590 | SHIM, 0.5MM | 21001-23000 | |
| 30 | 22W-57-11490 | NUT | 21001-23000 | |
| 31 | 01643-31445 | WASHER | 21001-23000 | |
| 32 | 01580-10806 | NUT | 21001-23000 | |
| 33 | 01643-30823 | WASHER | 21001-23000 | |
| 34 | 01640-20816 | WASHER | 21001-23000 |
