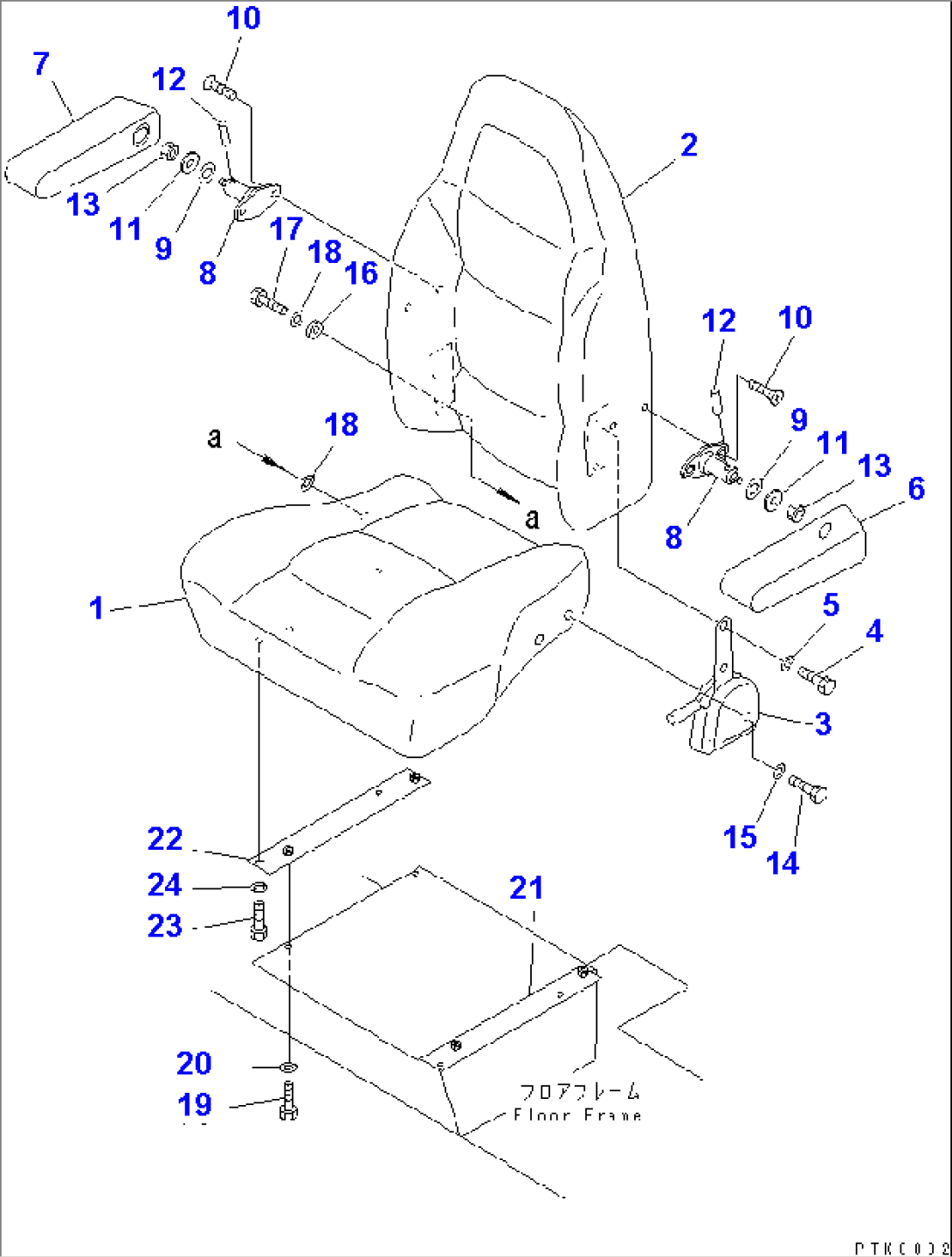

| Item | Part No. | Part Name | Qty | Serial No. |
| 21Y-57-17150 | SEAT ASS'Y | 1715- | ||
| 1 | 21Y-57-17180 | CUSHION,SEAT | 1715- | |
| 2 | 21Y-57-17170 | CUSHION,BACK | 1715- | |
| 3 | 21W-57-31110 | RECLINING ASS'Y | 1715- | |
| 4 | 01010-80820 | BOLT | 1715- | |
| 5 | 01602-20825 | WASHER,SPRING | 1715- | |
| 6 | 21Y-57-17190 | ARM REST,L.H. | 1715- | |
| 7 | 21Y-57-17210 | ARM REST,R.H. | 1715- | |
| 8 | 201-57-71151 | SHAFT | 1715- | |
| 9 | 203-57-53160 | SPRING | 1715- | |
| 10 | 203-57-53170 | SCREW | 1715- | |
| 11 | 124-54-26540 | WASHER | 1715- | |
| 12 | 04020-00820 | PIN | 1715- | |
| 13 | 01580-11008 | NUT | 1715- | |
| 14 | 01010-80816 | BOLT | 1715- | |
| 15 | 01602-20825 | WASHER,SPRING | 1715- | |
| 16 | 203-57-53180 | COLLAR | 1715- | |
| 17 | 01010-81030 | BOLT | 1715- | |
| 18 | 01643-31032 | WASHER | 1715- | |
| 19 | 01010-80825 | BOLT | 1715- | |
| 20 | 01643-30823 | WASHER | 1715- | |
| 21 | 21Y-57-17160 | PLATE | 1715- | |
| 22 | 21W-57-31120 | PLATE | 1715- | |
| 23 | 01010-80825 | BOLT | 1715- | |
| 24 | 01643-30823 | WASHER | 1715- |
