| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (426-S33-2190) | SEAT ASS'Y | 50001- | |
| 2 | 426-S33-2170 | BRACKET,L.H. | 50001- | |
| 3 | 426-S33-2180 | BRACKET,R.H. | 50001- | |
| 4 | 01435-00820 | BOLT | 50001- | |
| 5 | 01580-10806 | NUT | 50001- | |
| 6 | 01643-30823 | WASHER | 50001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa900 3 s/n 50001 up
- Operator's compartment and control system
- Operator's seat (with joy stick steering)
Поиск по каталогу

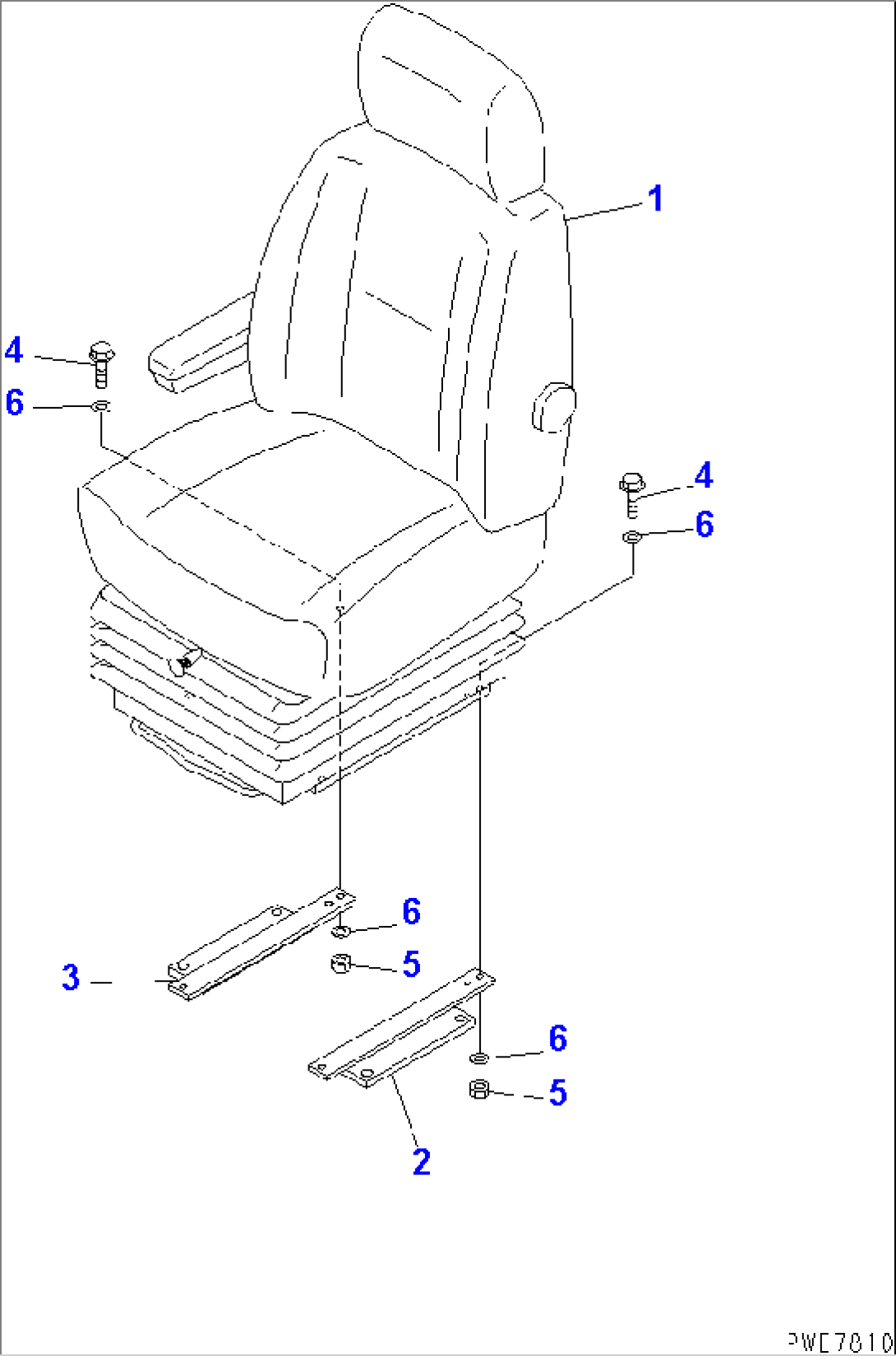

OPERATOR'S SEAT (WITH JOY STICK STEERING)
