| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (426-S33-2190) | SEAT ASS'Y | 52001- | |
| 2 | 426-S33-2170 | BRACKET,L.H. | 52001- | |
| 3 | 426-S33-2180 | BRACKET,R.H. | 52001- | |
| 4 | 01435-00820 | BOLT | 52001- | |
| 5 | 01580-10806 | NUT | 52001- | |
| 6 | 01643-30823 | WASHER | 52001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa500 3 s/n 50001 up
- Operator's compartment and control system
- Operator's seat (with joy stick steering)(#52001 )
Поиск по каталогу

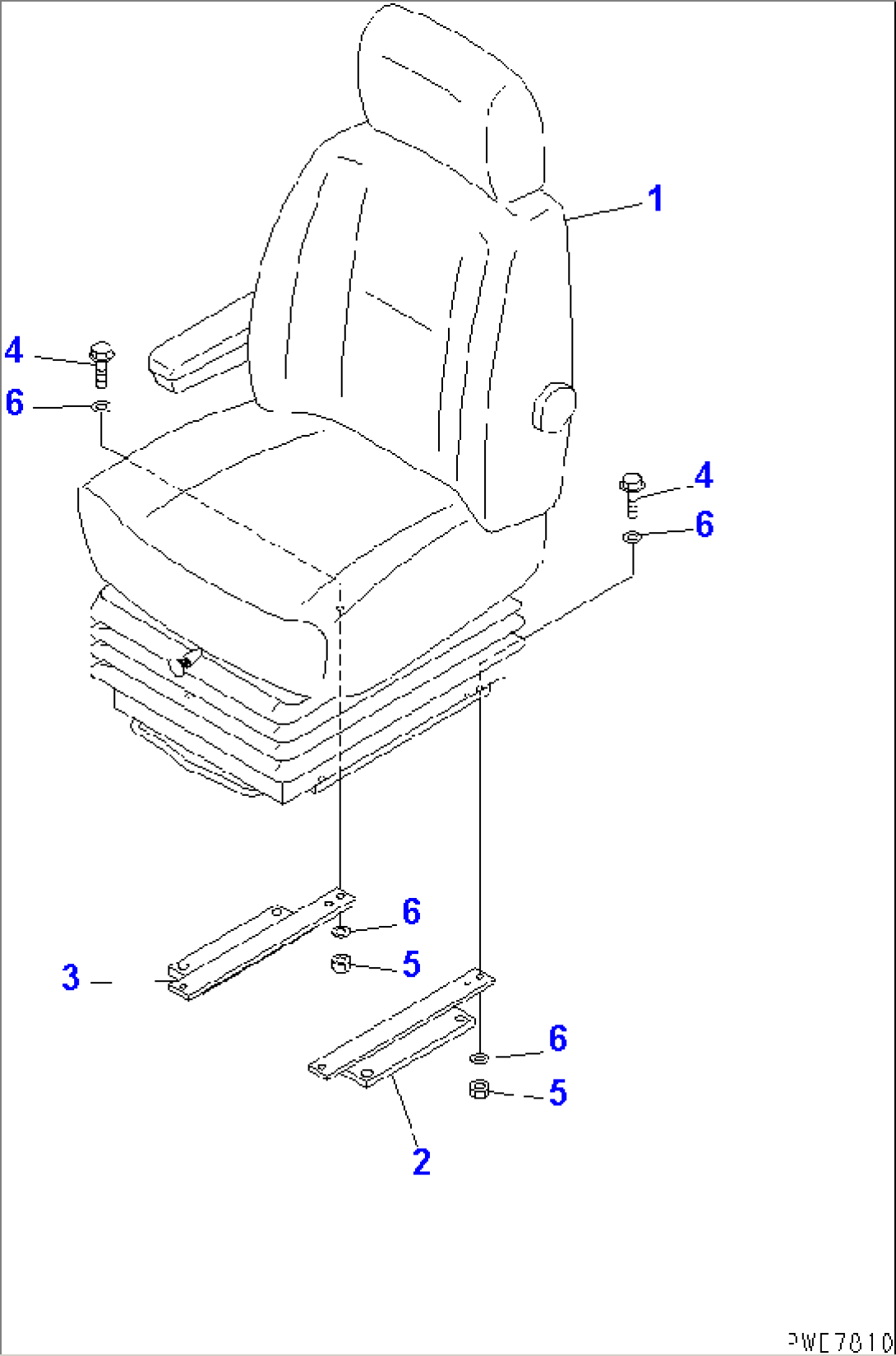

OPERATOR'S SEAT (WITH JOY STICK STEERING)(#52001-)
