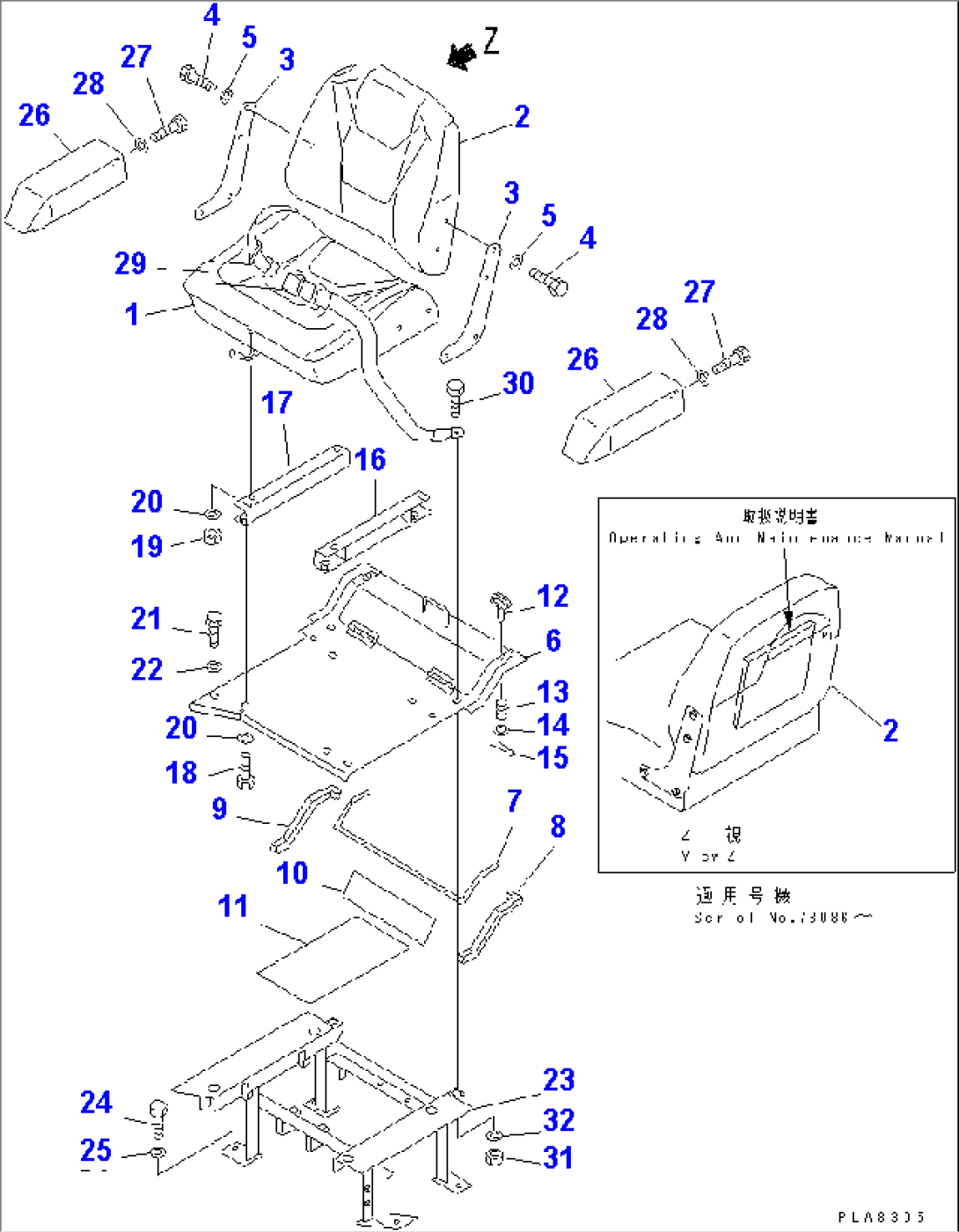

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 114-57-41260 | CUSHION,SEAT | 62001- | |
| 2 | 114-57-41271 | CUSHION,BACK | 62001- | |
| \0\114-57-41270 | CUSHION,BACK | 62001-78085 | ||
| 3 | 114-57-41280 | PLATE | 62001- | |
| 4 | 01010-50825 | BOLT | 62001- | |
| 5 | 01643-30823 | WASHER | 62001- | |
| 6 | 103-B62-2470 | PLATE | 62001- | |
| 113-54-24190 | HINGE (WELDED) | 62001- | ||
| 7 | 103-B62-1760 | SEAT | 62001- | |
| 8 | 103-B62-1770 | SEAL | 62001- | |
| 9 | 103-B62-1780 | SEAL | 62001- | |
| 10 | 103-B62-2270 | SHEET | 62001- | |
| 11 | 103-B62-2280 | SHEET | 62001- | |
| 12 | 09459-11033 | LOCK | 62001- | |
| 13 | 09459-01614 | SPRING | 62001- | |
| 14 | 01642-01016 | WASHER | 62001- | |
| 15 | 04050-13015 | PIN,COTTER | 62001- | |
| 16 | 114-57-41171 | BRACKET,L.H. | 62001- | |
| 17 | 114-57-41181 | BRACKET,R.H. | 62001- | |
| 18 | 01010-51225 | BOLT | 62001- | |
| 19 | 01580-11210 | NUT | 62001- | |
| 20 | 01643-31232 | WASHER | 62001- | |
| 21 | 01010-51025 | BOLT | 62001- | |
| 22 | 01643-31032 | WASHER | 62001- | |
| 23 | 104-57-38111 | FRAME | 62454- | |
| 104-57-38110 | FRAME | 62001-62453 | ||
| 24 | 01010-51440 | BOLT | 62001- | |
| 25 | 01643-31445 | WASHER | 62001- | |
| 26 | 114-57-41140 | REST,ARM | 62001- | |
| 27 | 01010-51020 | BOLT | 62001- | |
| 28 | 01643-31032 | WASHER | 62001- | |
| 29 | 09409-10001 | BELT¤ LAP | 62001- | |
| 30 | 09409-00001 | BOLT | 62001- | |
| 31 | 09409-00003 | NUT | 62001- | |
| 32 | 09409-00002 | WASHER,SPRING | 62001- |
